Intertego | Enclosure profile sets, 3U
IT 154430
Order no.: 95154430
IT 154430
Order no.: 95154430
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.

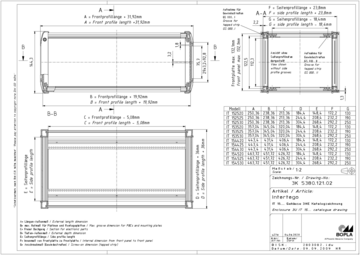

Product drawing
Enclosure concept
Characteristics
Dimensions
144.3 x 443.4 x 304.4 mm
U
3
HP
80
Cards depth
280
Protection class
IP
40
NEMA
1
Enclosure Material
Profiles: Al Mg Si 0.5; diecast corners: zinc alloy Z410; seal: TPE. For details see Technical Information.
Scope of delivery

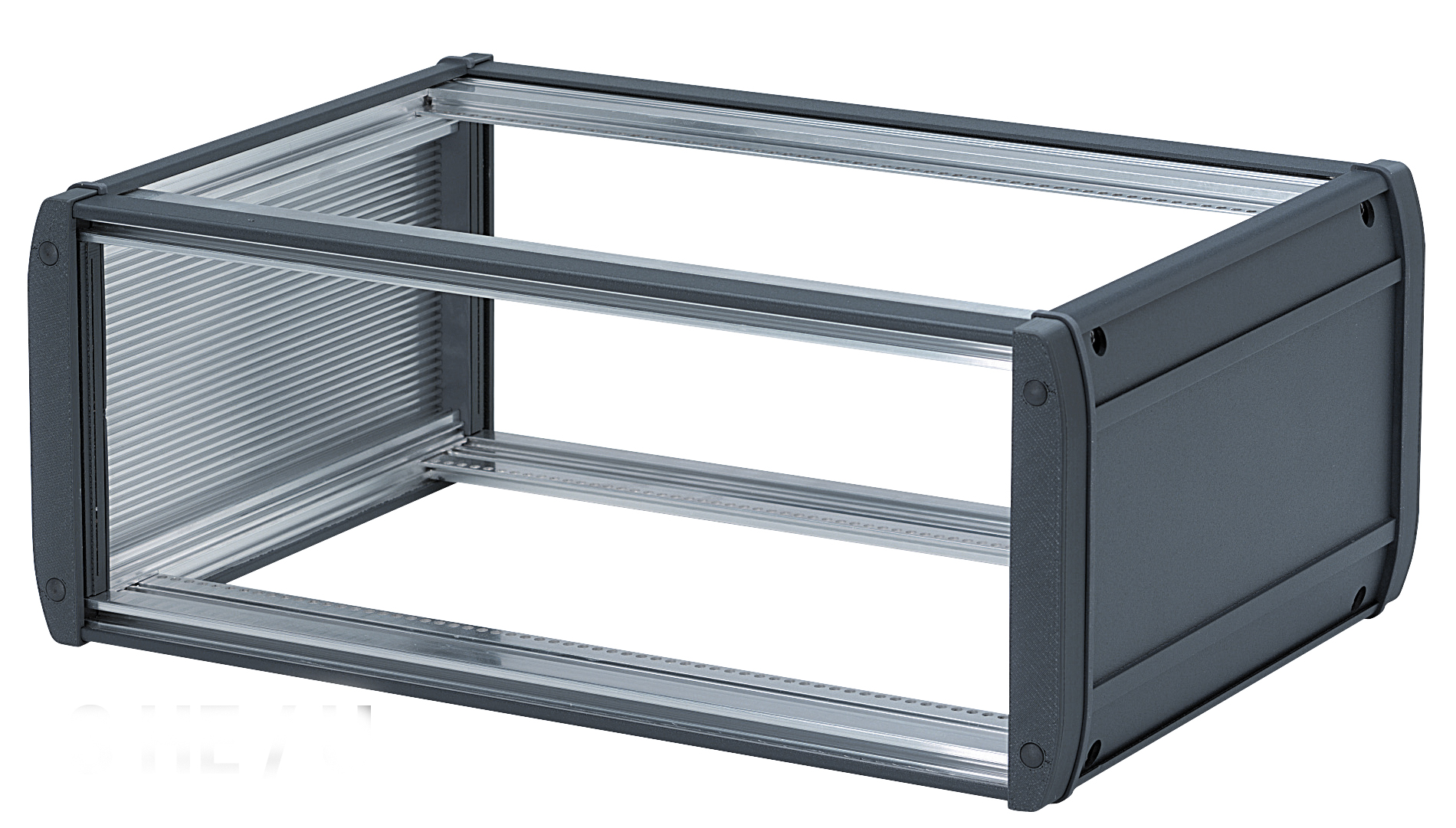

2 side profiles, 4 front profiles, 4 diecast corners, 4 decor elements, dark grey, mounting material
Note
Special sizes on request. Accessories (EMC, 19",...) see following pages.
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
95154430 IT-154430.pdf
(237.6 KB)
Product drawing in DXF format:
95154430 IT-154430.dxf
(1.1 MB)
AluProfil Legierung
(Profile material)
Beschichtung Brillux 5904
(Powder coating)
- 19 Inch Standard Overview EN.pdf(4.6 MB)
- intertego en.pdf(2.8 MB)
