Intertego | Tip-up feet, polyamide

AF1/INS
Order no.: 86050000

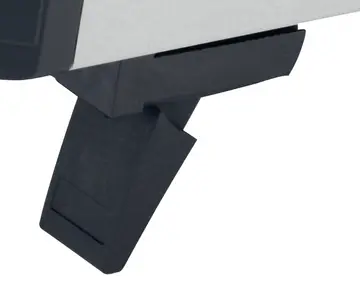

Tip-up feet

B 8605000 AF1 INS 2
AF1/INS
Order no.: 86050000

Tip-up feet

Add to the shopping basket
items
items
Show the shopping basketDownload print view
* = Available on request.

Product drawing

Enclosure concept

Intertego

Characteristics

Colour of enclosure group
anthracite grey
Enclosure Material

Profiles: Al Mg Si 0.5; diecast corners: zinc alloy Z410; seal: TPE. For details see Technical Information.

Scope of delivery

Set-up foot set (2 fixed and 2 hinged feet), fixing material

Note

Mechanical processing of the cover plates and mounting of the tip-up feet on request.

Important!

To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.

In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.

» Additional information

Technical documentation / Downloads

Product drawing in PDF format:
Product drawing in DXF format:
