Intertego | Thread and insulating strips
Tapped strips, galvanised steel, M2.5, 7 x 2 mm, for part front panel fixing
| Model | Order no. | TE | Article Colour |
| GS 00042-I | 54000421 | 42 | galvanized |
| GS 00063-I | 54000631 | 63 | galvanized |
| GS 00080-I | 54000801 | 80 | - |
| GS 00084-I | 54000841 | 84 | galvanized |
Notes:
Special lengths on request.
Special lengths on request.
Scope of delivery:
2 tapped strips
2 tapped strips

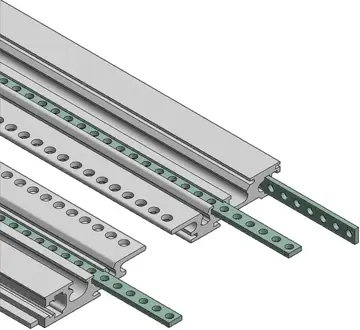

Tapped strips, galvanised steel, M2.5, 5 x 1.5 mm, for horizontal profile grooves and rear fixing of backplanes, insulating strips and Z rails
| Model | Order no. | TE | Article Colour |
| GS 00042-II | 54000422 | 42 | galvanized |
| GS 00063-II | 54000632 | 63 | galvanized |
| GS 00080-II | 54000802 | 80 | - |
| GS 00084-II | 54000842 | 84 | galvanized |
Notes:
Special lengths on request.
Special lengths on request.
Scope of delivery:
2 tapped strips
2 tapped strips
Slotted set screw M2.5 x 8 / M2.5 x 5, V2A, for positioning and earthing the tapped strip
Notes:
GSE-5 for use in the recessed double groove, in the horizontal grooves (e.g. card guide screwing system) and in the double bus profiles for 6 U subracks and in the adapter profiles. GSE-8 for use in both double grooves.
GSE-5 for use in the recessed double groove, in the horizontal grooves (e.g. card guide screwing system) and in the double bus profiles for 6 U subracks and in the adapter profiles. GSE-8 for use in both double grooves.
Scope of delivery:
10 slotted set screws
10 slotted set screws
Insulated plastic, UL 94 V1, for insulated fixing of backplanes
Notes:
To achieve the necessary insertion depth when using bus profile rails.
To achieve the necessary insertion depth when using bus profile rails.
Scope of delivery:
4 insulating strips (IS 00042 = 2 insulating strips)
4 insulating strips (IS 00042 = 2 insulating strips)
