BoTouch | Plastic IP 65

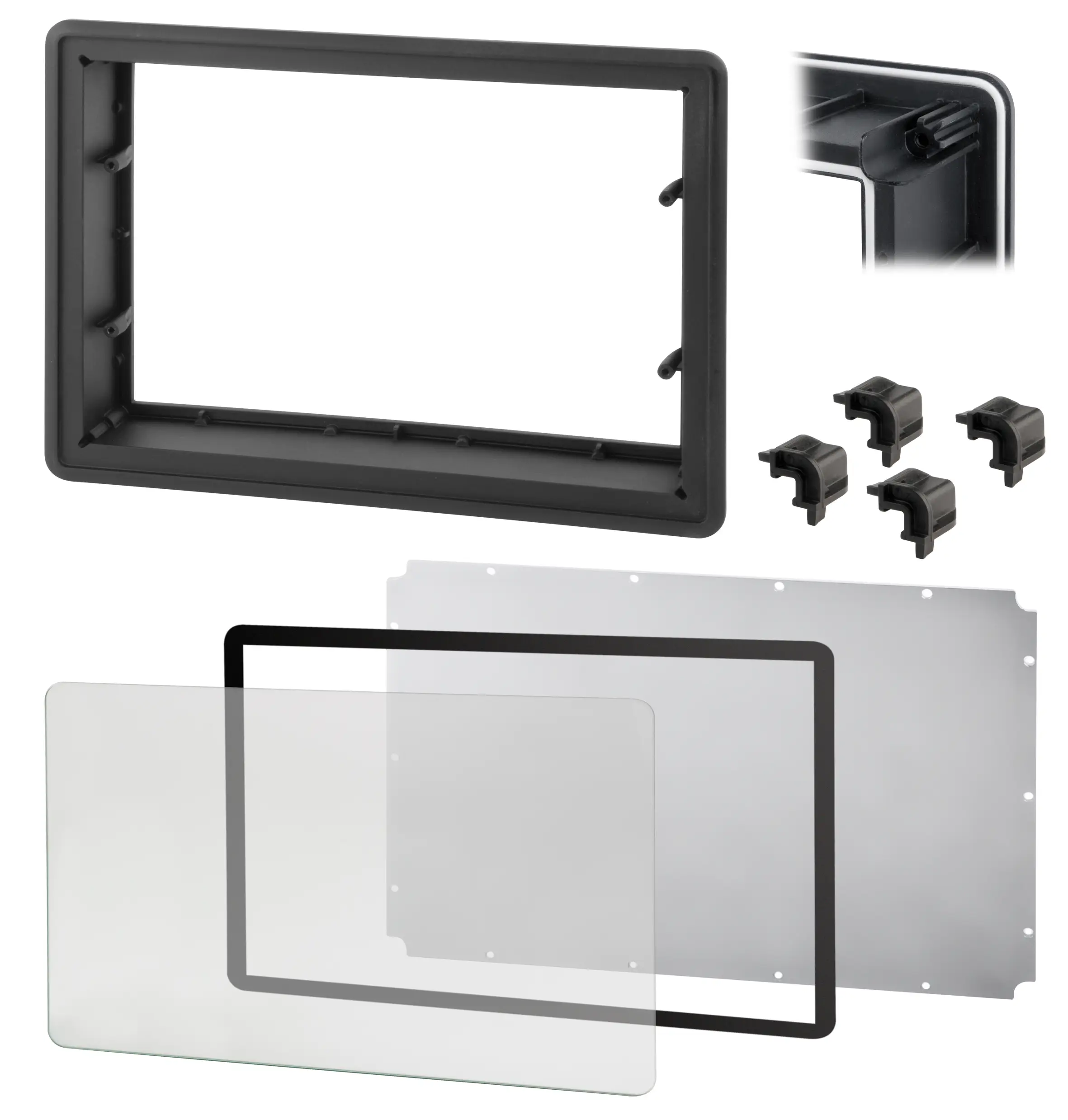

BoTouch plastic, ingress protection IP 65, set

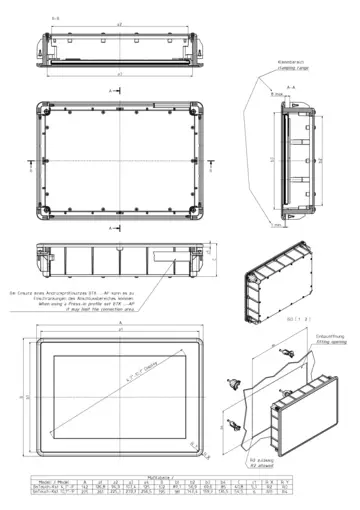

| Model | Order no. | A | B | C | IP | NEMA | Display Max |
| BTK-IP 4.3-9005 Set | 78010435.S1 | 142 | 102 | 40.8 | 65 | 3 | 4.3" |
| BTK-IP 10.1-9005 Set | 78011015.S1 | 275 | 195 | 54.5 | 65 | 3 | 10.1" |
Scope of delivery:
- 1 enclosure frame with foamed seals
- 4 clamps incl. screws
- screws for rear panel fixing
- 1 glass pane, 1.6 mm (BTK 4.3-IP) or 2 mm (BTK 10.1-IP), unprinted, (chemical anti-reflection coating)
- 1 stick-on frame to fix the glass pane
- rear panel, 3 mm, anodised aluminium with foamed seals
- 1 enclosure frame with foamed seals
- 4 clamps incl. screws
- screws for rear panel fixing
- 1 glass pane, 1.6 mm (BTK 4.3-IP) or 2 mm (BTK 10.1-IP), unprinted, (chemical anti-reflection coating)
- 1 stick-on frame to fix the glass pane
- rear panel, 3 mm, anodised aluminium with foamed seals

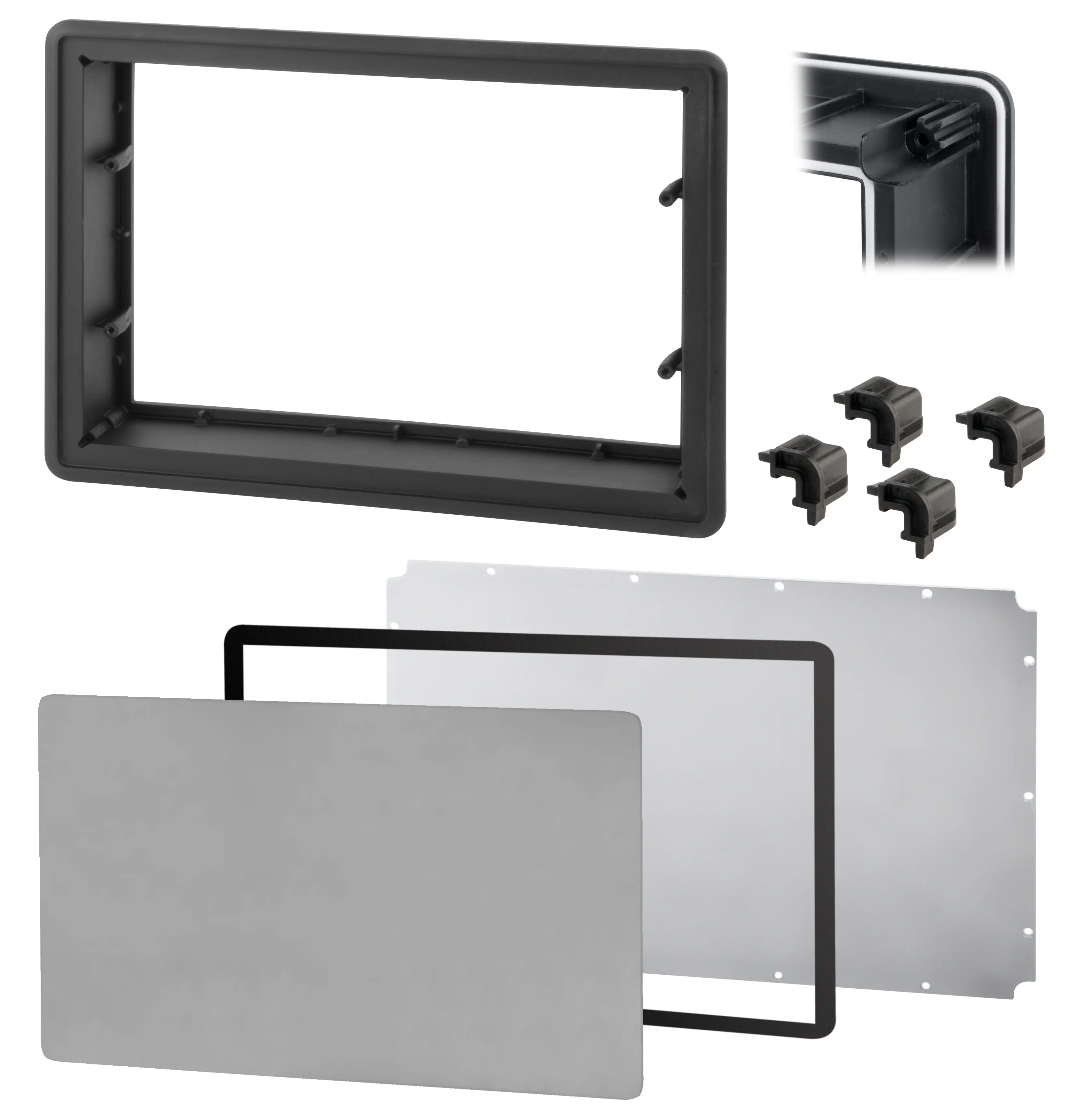

BoTouch plastic, protection class IP 65, set for control panel mounting with aluminium front panel
| Model | Order no. | A | B | C | IP | NEMA | Display Max |
| BTK-IP 4.3-9005 FP Set | 78010435.S2 | 142 | 102 | 40.8 | 65 | 3 | 4.3" |
| BTK-IP 10.1-9005 FP Set | 78011015.S2 | 275 | 195 | 54.5 | 65 | 3 | 10.1" |
Scope of delivery:
- 1 enclosure frame with foamed seals
· 4 clamps incl. screws
- Screws for rear panel fitting
- 1 front panel, anodised aluminium, 1.5 mm (BTK 4.3-IP) or 2 mm (BTK 10.1-IP)
- 1 stick-on frame for fixing front panel
- 1 rear panel, 3 mm, anodised aluminium
- 1 enclosure frame with foamed seals
· 4 clamps incl. screws
- Screws for rear panel fitting
- 1 front panel, anodised aluminium, 1.5 mm (BTK 4.3-IP) or 2 mm (BTK 10.1-IP)
- 1 stick-on frame for fixing front panel
- 1 rear panel, 3 mm, anodised aluminium

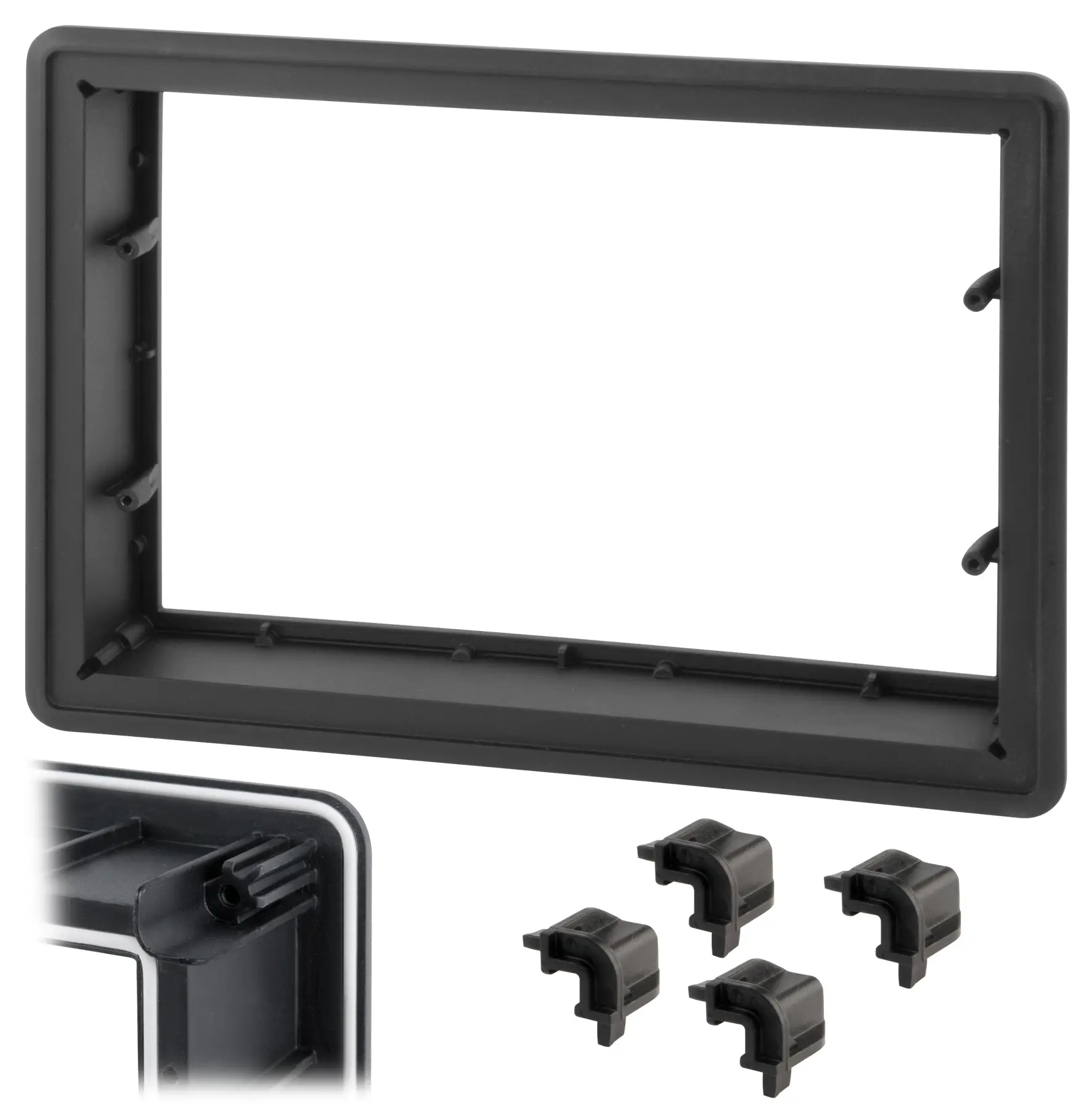

BoTouch front frame, plastic (PA 6.6 GF 30 UL 94 V0), ingress protection IP 65, black (similar to RAL 9005)
| Model | Order no. | A | B | C | IP | NEMA | Display Max |
| BTK 4.3-IP-9005 | 78010435 | 142 | 102 | 40.8 | 65 | 3 | 4.3" |
| BTK 10.1-IP-9005 | 78011015 | 275 | 195 | 54.5 | 65 | 3 | 10.1" |
Scope of delivery:
1 enclosure frame, 4 clamps incl. screws, screws for rear panel fixing
1 enclosure frame, 4 clamps incl. screws, screws for rear panel fixing

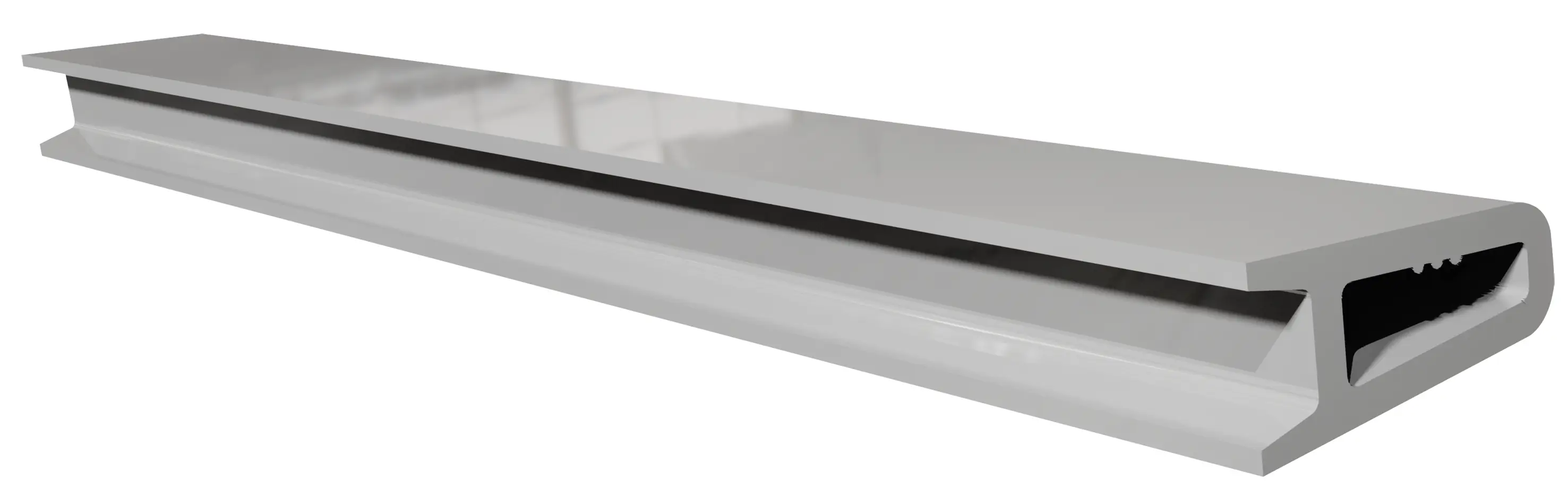

BoTouch press-in profile set
| Model | Order no. | Note |
| BTK 10.1-AP | 78081010 | For BTK 10.1-IP-9005 |
Scope of delivery:
2 profiles for longitudinal side mounting, 2 profiles for short-side mounting
2 profiles for longitudinal side mounting, 2 profiles for short-side mounting
