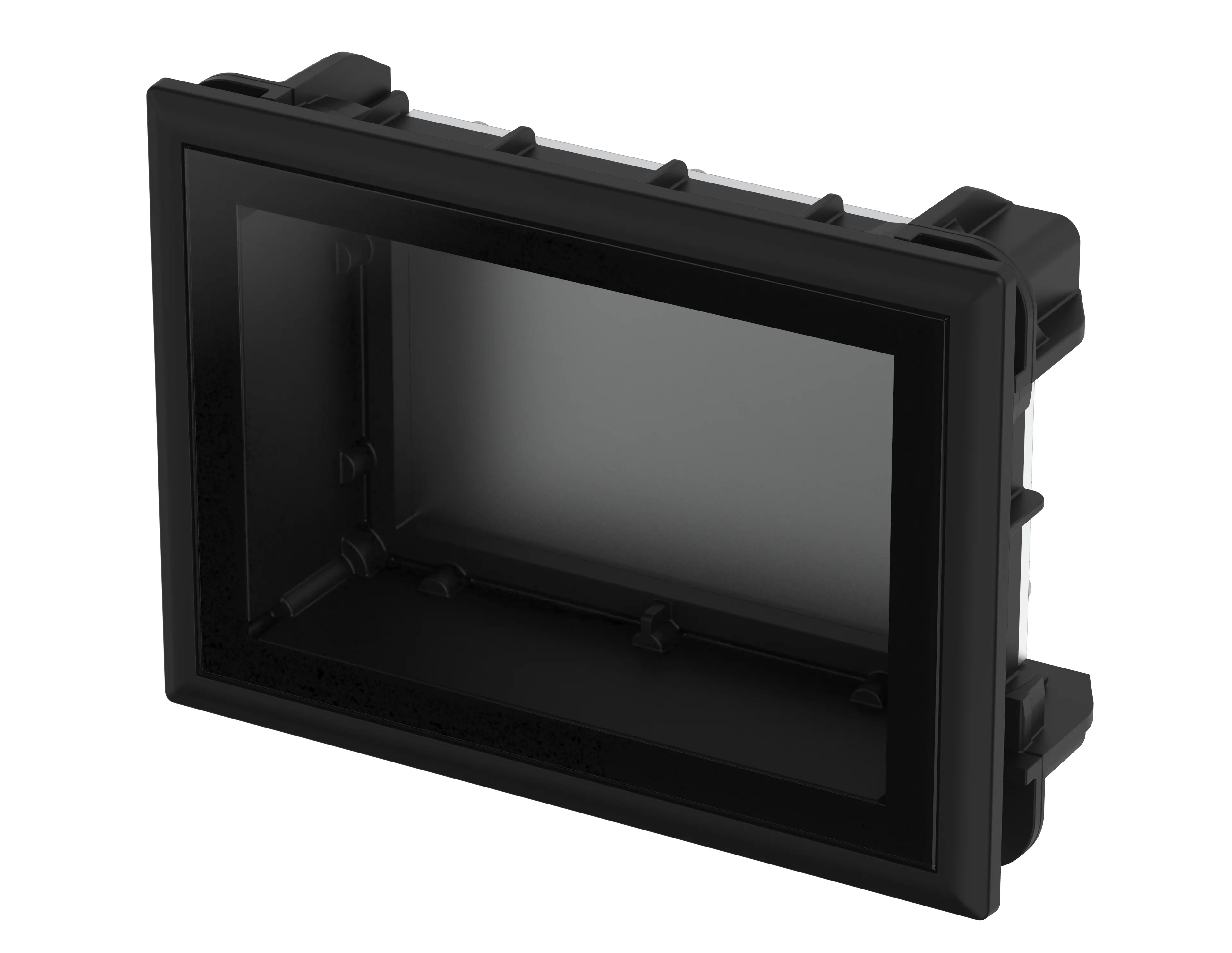

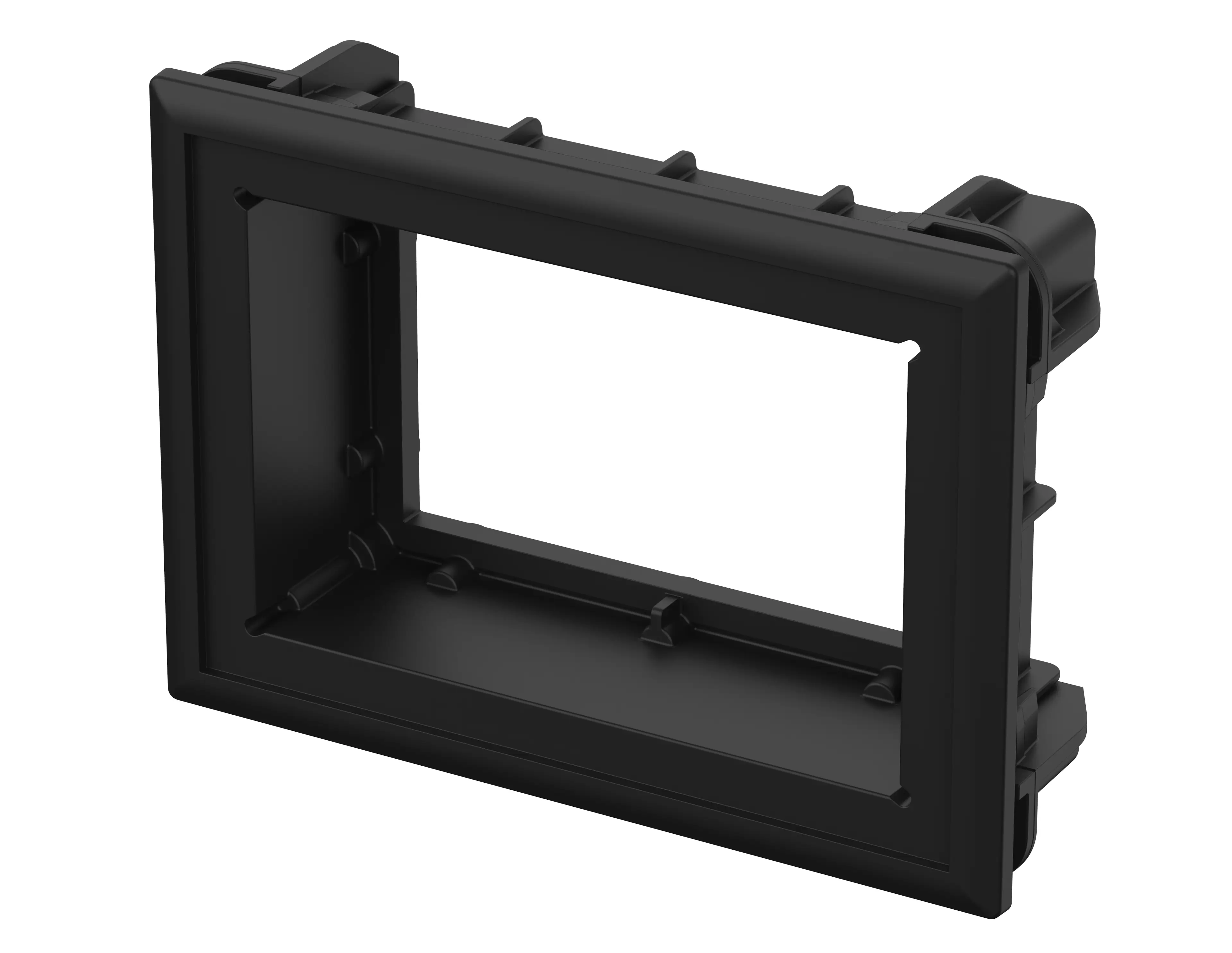

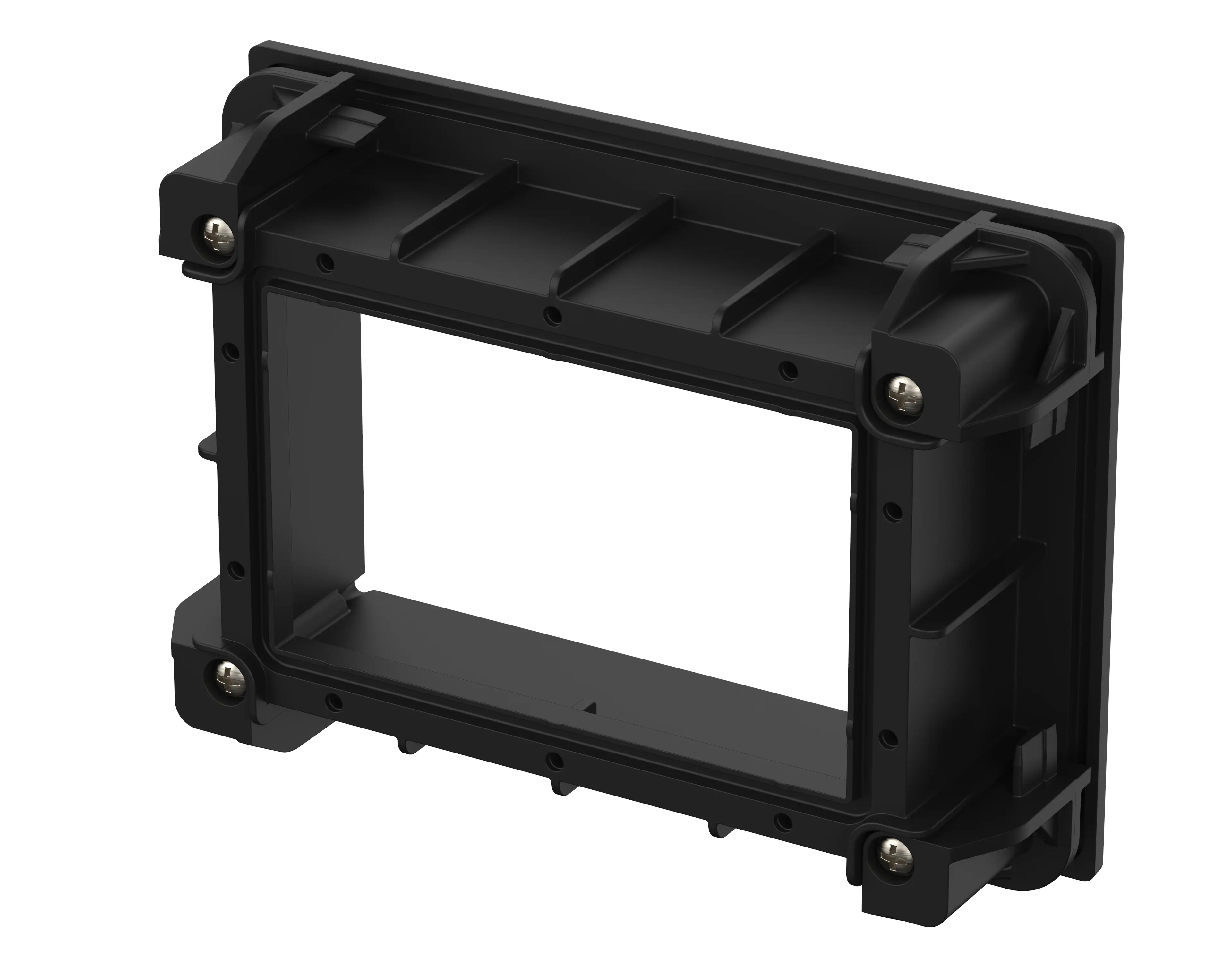

BoTouch | BoTouch front frame, plastic (PA 6.6 GF 30 UL 94 V0), ingress protection IP 65, black (similar to RAL 9005)
BTK 4.3-IP-9005
Order no.: 78010435
BTK 4.3-IP-9005
Order no.: 78010435
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.

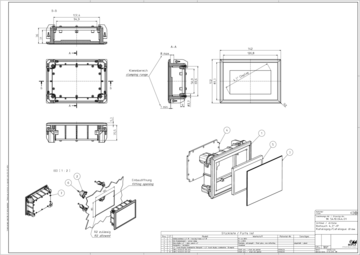

Product drawing
Enclosure concept
Characteristics
Dimensions
142 x 102 x 40.8 mm
Colour of enclosure group
Black, similar to RAL 9005
Protection class
IP
65
NEMA
3
Enclosure Material
Rear hood: galvanised sheet steel
Rear panel: anodised aluminium
BTK enclosure frame: PC UL 94 V0
BTK-IP enclosure frame: PA 6.6 GF 30 UL 94 V0
BTA front frame: aluminium (anodised or powder-coated)
Operating temperature: -25/110° C
Scope of delivery

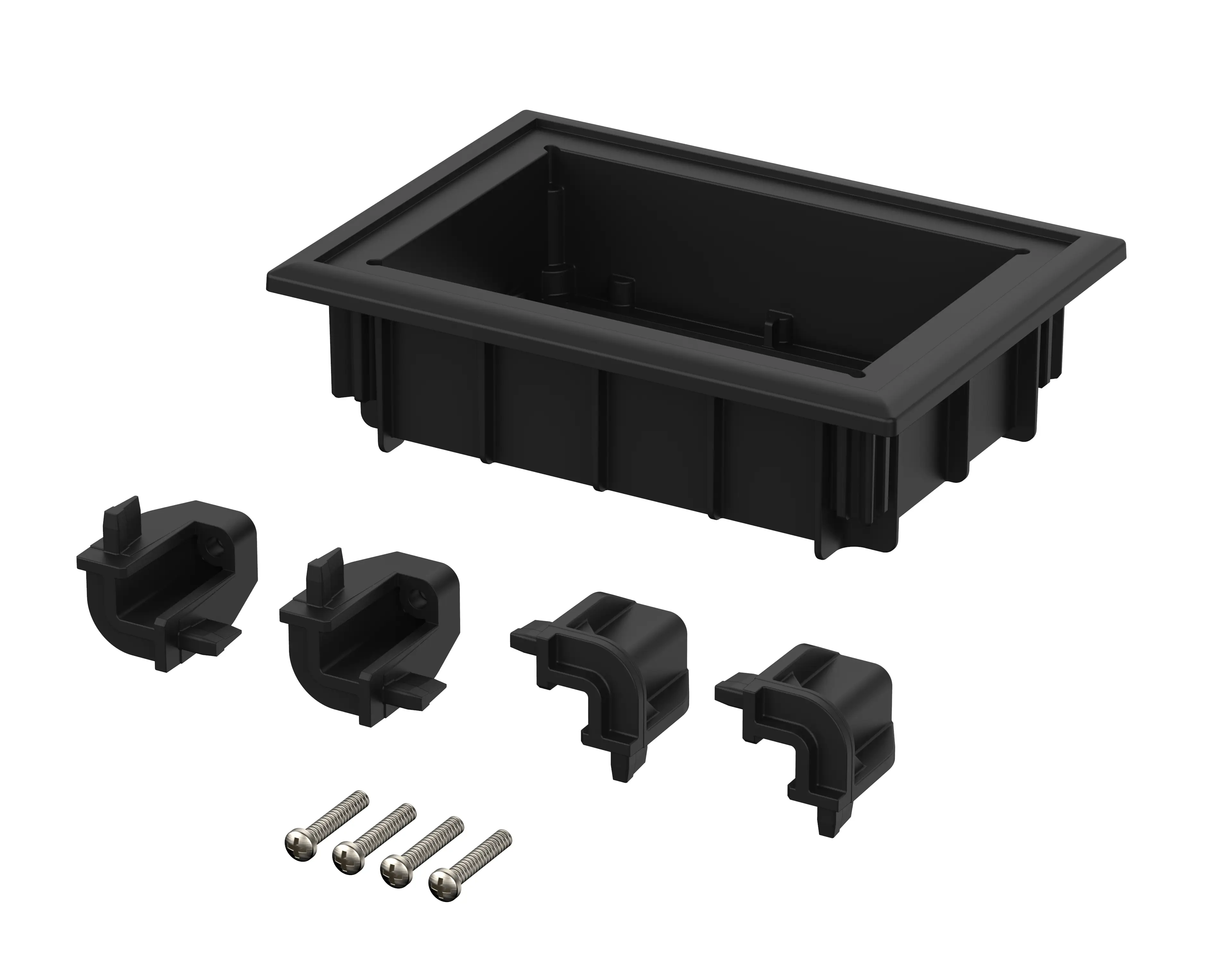

1 enclosure frame, 4 clamps incl. screws, screws for rear panel fixing
Note
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
78010435 BTK-43-IP-9005.pdf
(246.6 KB)
Product drawing in DXF format:
78010435 BTK-43-IP-9005.dxf
(4.2 MB)
PA 66 FRIANYL A3 V0GF30
(Front frame)
PA 66 FRIANYL A3 V0GF30
(Clamps)
- botouch en.pdf(864.5 KB)
