BoTouch | Plastic

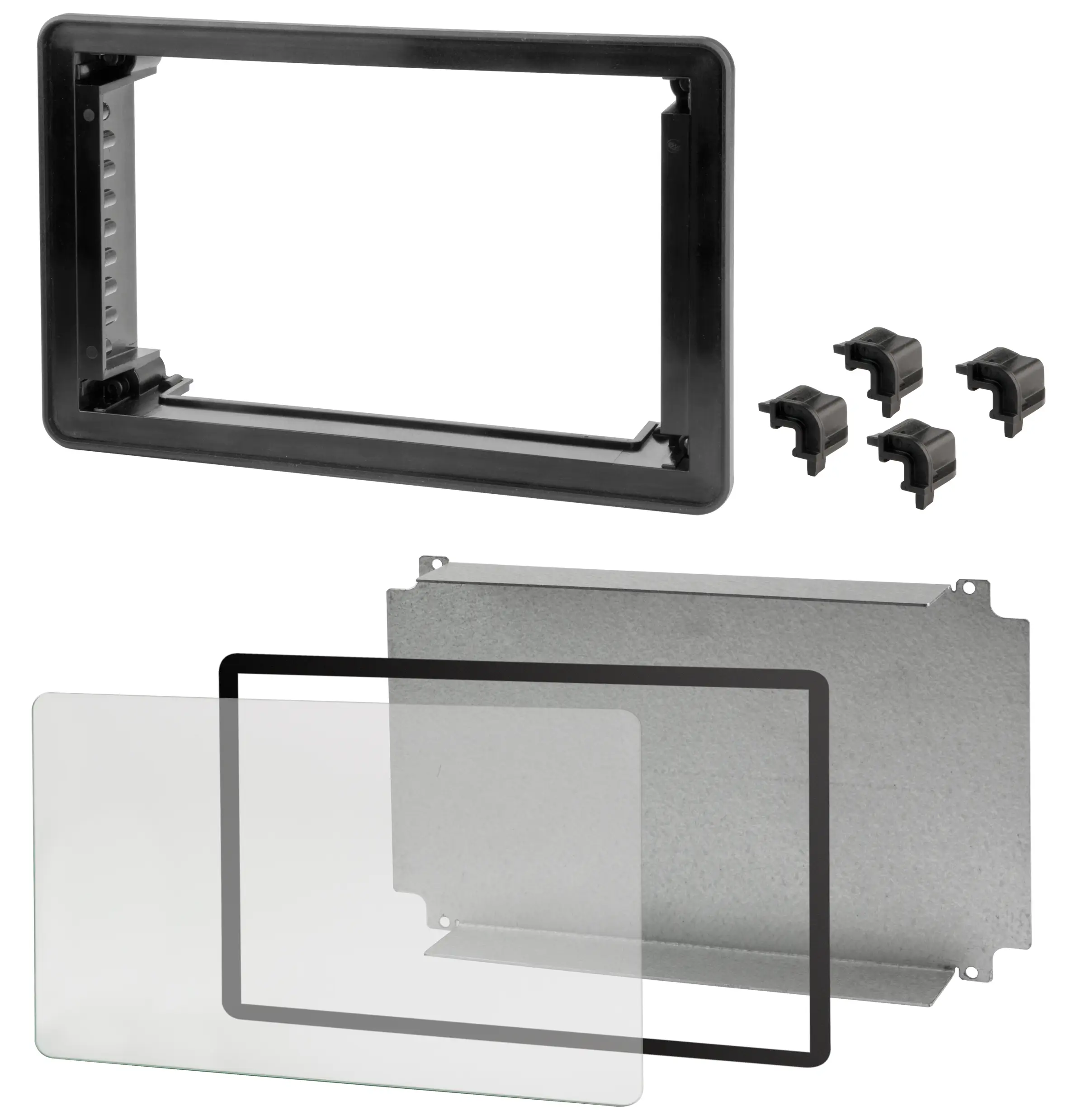

BoTouch plastic, set

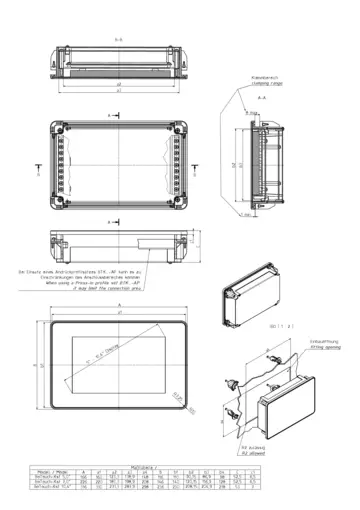

| Model | Order no. | A | B | C | IP | NEMA | Display Max |
| BTK 5.0-9005 Set | 78010505.S1 | 166 | 116 | 52.5 | 65 | 3 | 5" |
| BTK 7.0-9005 Set | 78010705.S1 | 226 | 146 | 52.5 | 65 | 3 | 7" |
| BTK 10.4-9005 Set | 78011045.S1* | 316 | 236 | 53 | 65 | 3 | 10.4" |
Scope of delivery:
- 1 enclosure frame with foamed seal
- 4 clamps incl. screws
- 4 screws for rear hood fixing
- 1 glass pane, 2 mm, unprinted (chemical anti-reflection coating), 1 stick-on frame to fix the glass pane
- 1 rear hood (closed), 1 mm, installation version, galvanised sheet steel, corrosion-protected
- 1 enclosure frame with foamed seal
- 4 clamps incl. screws
- 4 screws for rear hood fixing
- 1 glass pane, 2 mm, unprinted (chemical anti-reflection coating), 1 stick-on frame to fix the glass pane
- 1 rear hood (closed), 1 mm, installation version, galvanised sheet steel, corrosion-protected

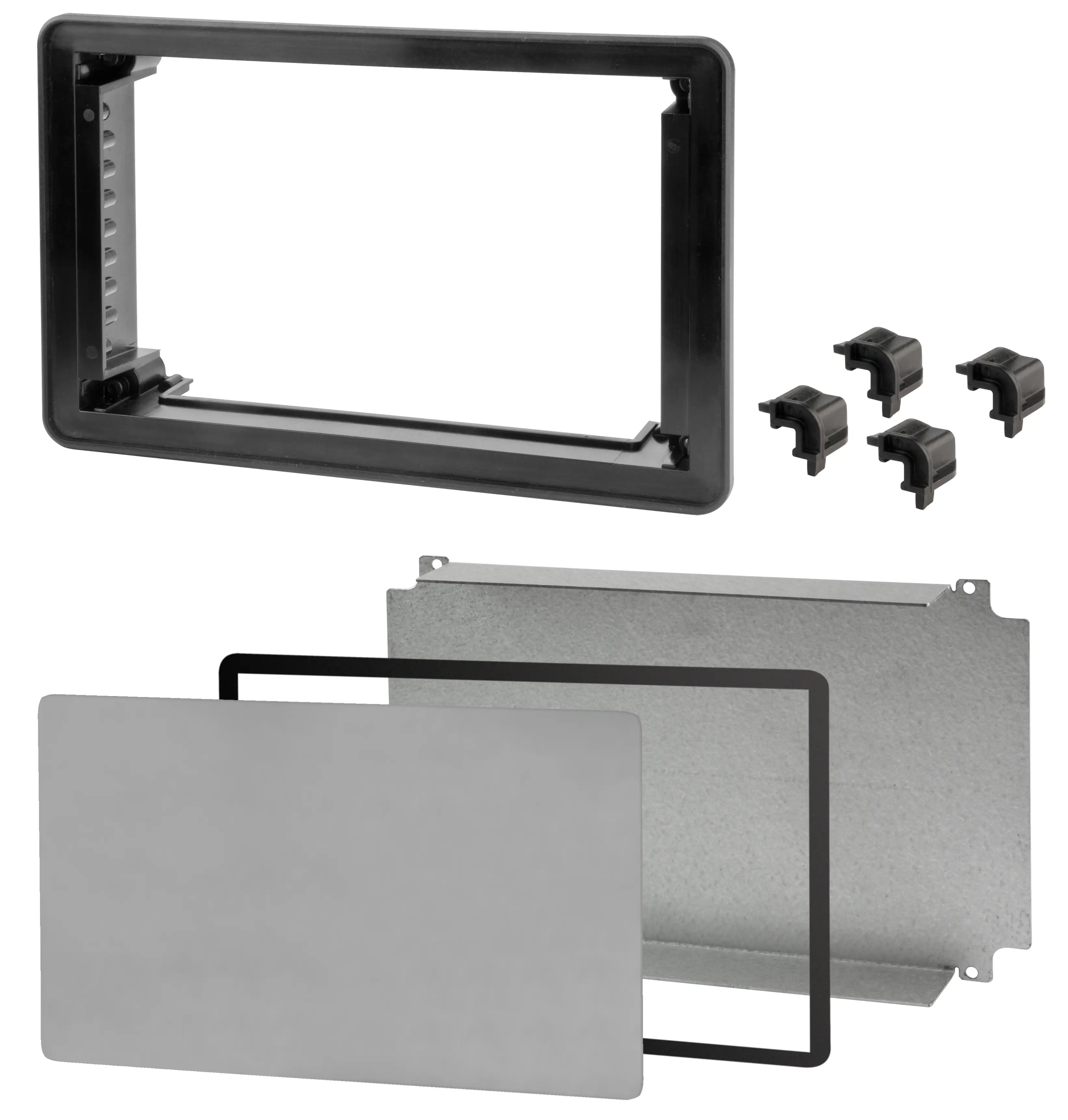

BoTouch plastic, set for control panel mounting with aluminium front panel
| Model | Order no. | A | B | C | IP | NEMA | Display Max |
| BTK 5.0-9005 FP Set | 78010505.S2 | 166 | 116 | 52.5 | 65 | 3 | 5" |
| BTK 7.0-9005 FP Set | 78010705.S2 | 226 | 146 | 52.5 | 65 | 3 | 7" |
| BTK 10.4-9005 FP Set | 78011045.S2* | 316 | 236 | 53 | 65 | 3 | 10.4" |
Scope of delivery:
- 1 enclosure frame with foamed seal
· 4 clamps incl. screws
- 4 screws for rear hood fixing
- 1 front panel, 2 mm, anodised aluminium, 1 stick-on frame for fixing front panel
- 1 rear hood (closed), 1 mm, installation design, galvanised sheet steel, corrosion-protected
- 1 enclosure frame with foamed seal
· 4 clamps incl. screws
- 4 screws for rear hood fixing
- 1 front panel, 2 mm, anodised aluminium, 1 stick-on frame for fixing front panel
- 1 rear hood (closed), 1 mm, installation design, galvanised sheet steel, corrosion-protected

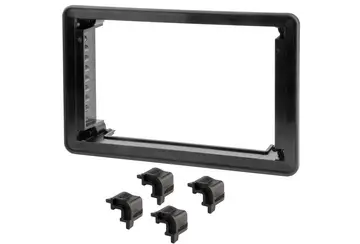

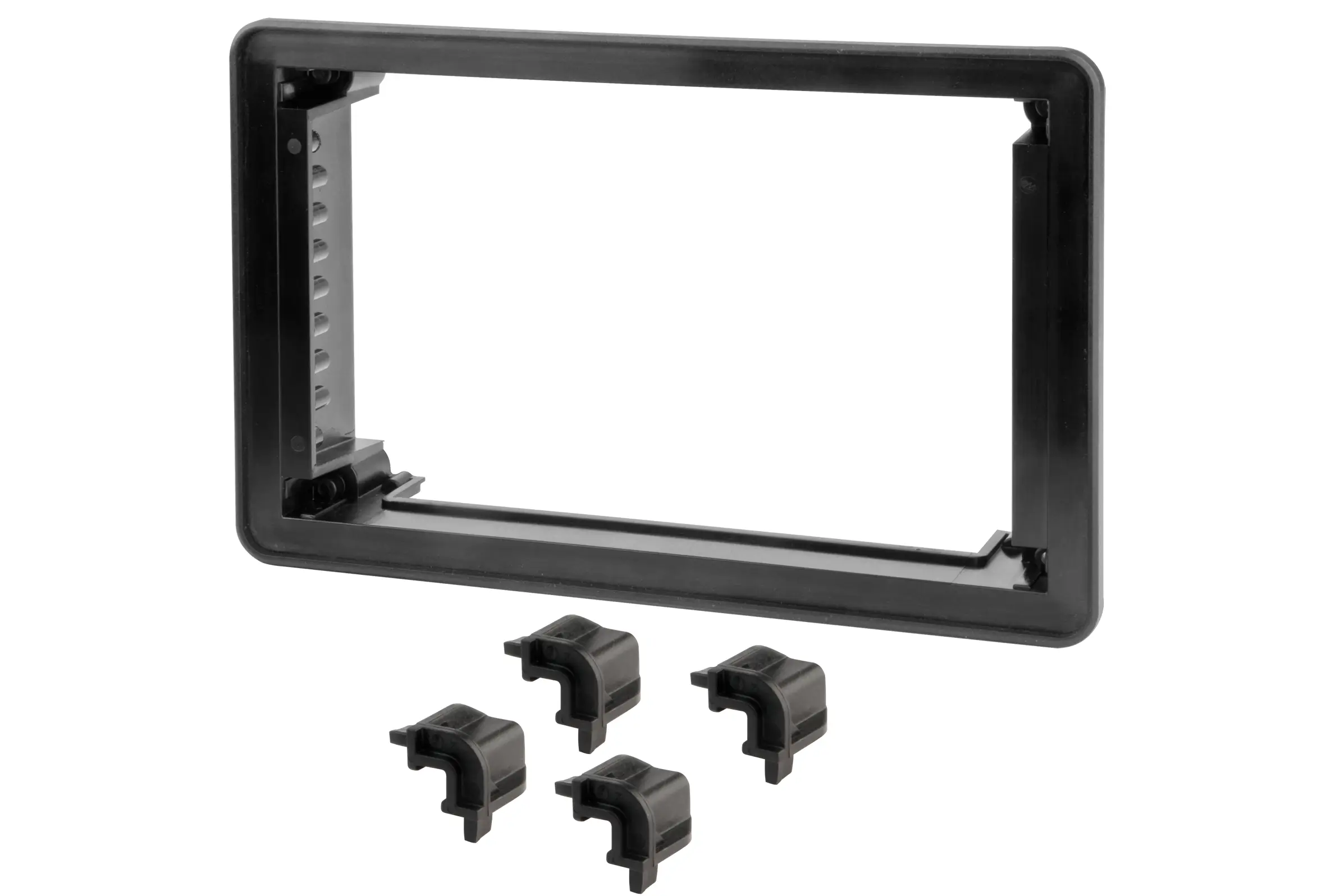

BoTouch front frame, plastic (PC UL 94 V0), black (similar to RAL 9005)
| Model | Order no. | A | B | C | IP | NEMA | Display Max |
| BTK 5.0-9005 | 78010505 | 166 | 116 | 52.5 | 65 | 3 | 5" |
| BTK 7.0-9005 | 78010705 | 226 | 146 | 52.5 | 65 | 3 | 7" |
| BTK 10.4-9005 | 78011045* | 316 | 236 | 53 | 65 | 3 | 10.4" |
Scope of delivery:
1 enclosure frame with foamed seal, 4 clamps incl. screws, 4 screws for rear hood fixing
1 enclosure frame with foamed seal, 4 clamps incl. screws, 4 screws for rear hood fixing
BoTouch press-in profile set
| Model | Order no. | Note |
| BTK 5.0-AP | 78080500 | For BTK 5.0-9005 |
| BTK 7.0-AP | 78080700 | For BTK 7.0-9005 |
| BTK 10.4-AP | 78081040* | For BTK 10.4-9005 |
Notes:
Recommended for thin / delicate installation areas and IP protection requirement.
Scope of delivery:
2 profiles for longitudinal side mounting, 2 profiles for short-side mounting (only BTK 10.4)
2 profiles for longitudinal side mounting, 2 profiles for short-side mounting (only BTK 10.4)
* = Available on request.
