BoTouch | BoTouch plastic, set for control panel mounting with aluminium front panel
Product drawing
Enclosure concept
Characteristics
Rear hood: galvanised sheet steel
Rear panel: anodised aluminium

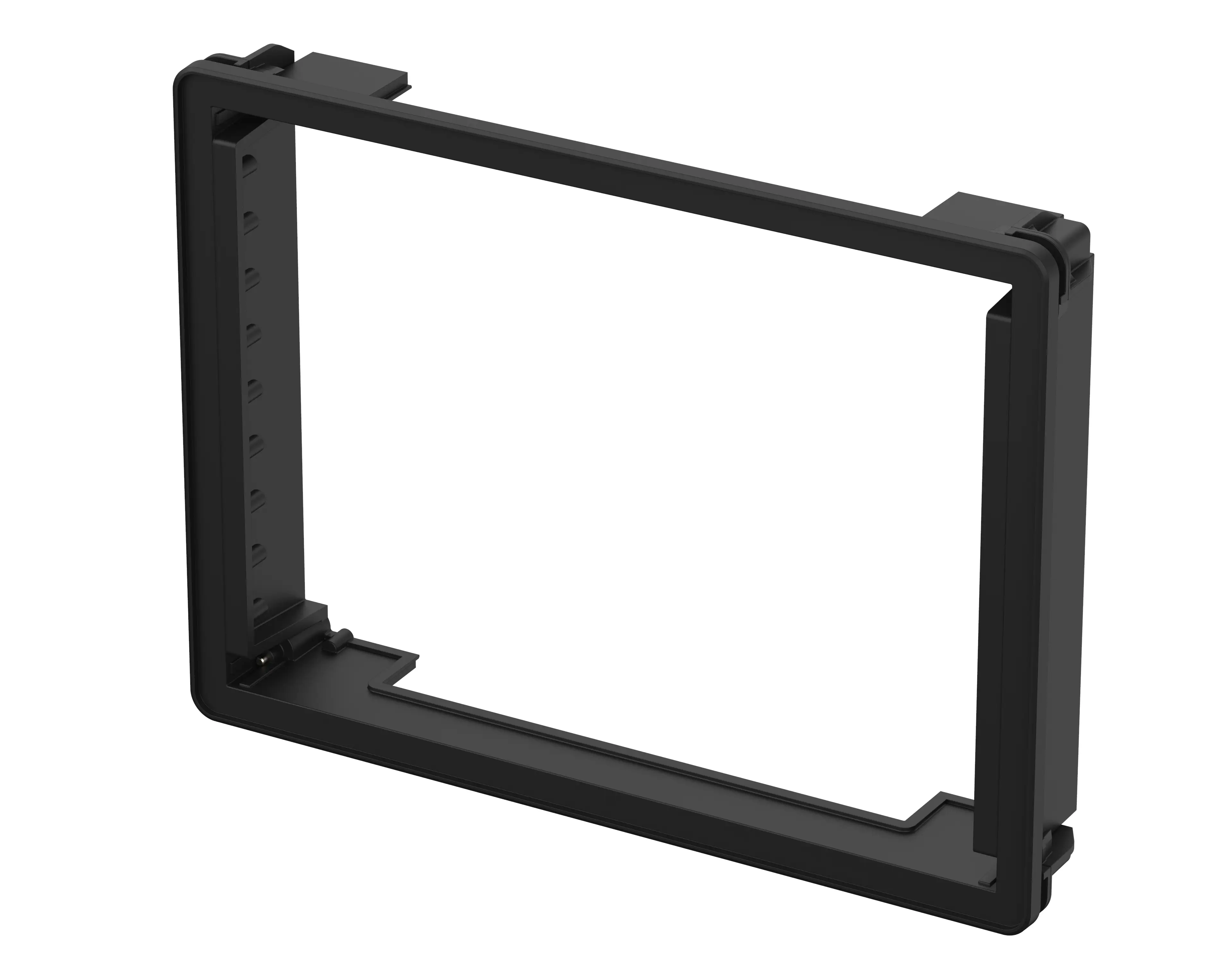

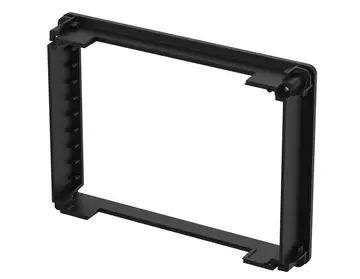

BTK enclosure frame: PC UL 94 V0
BTK-IP enclosure frame: PA 6.6 GF 30 UL 94 V0
BTA front frame: aluminium (anodised or powder-coated)
Operating temperature: -25/110° C

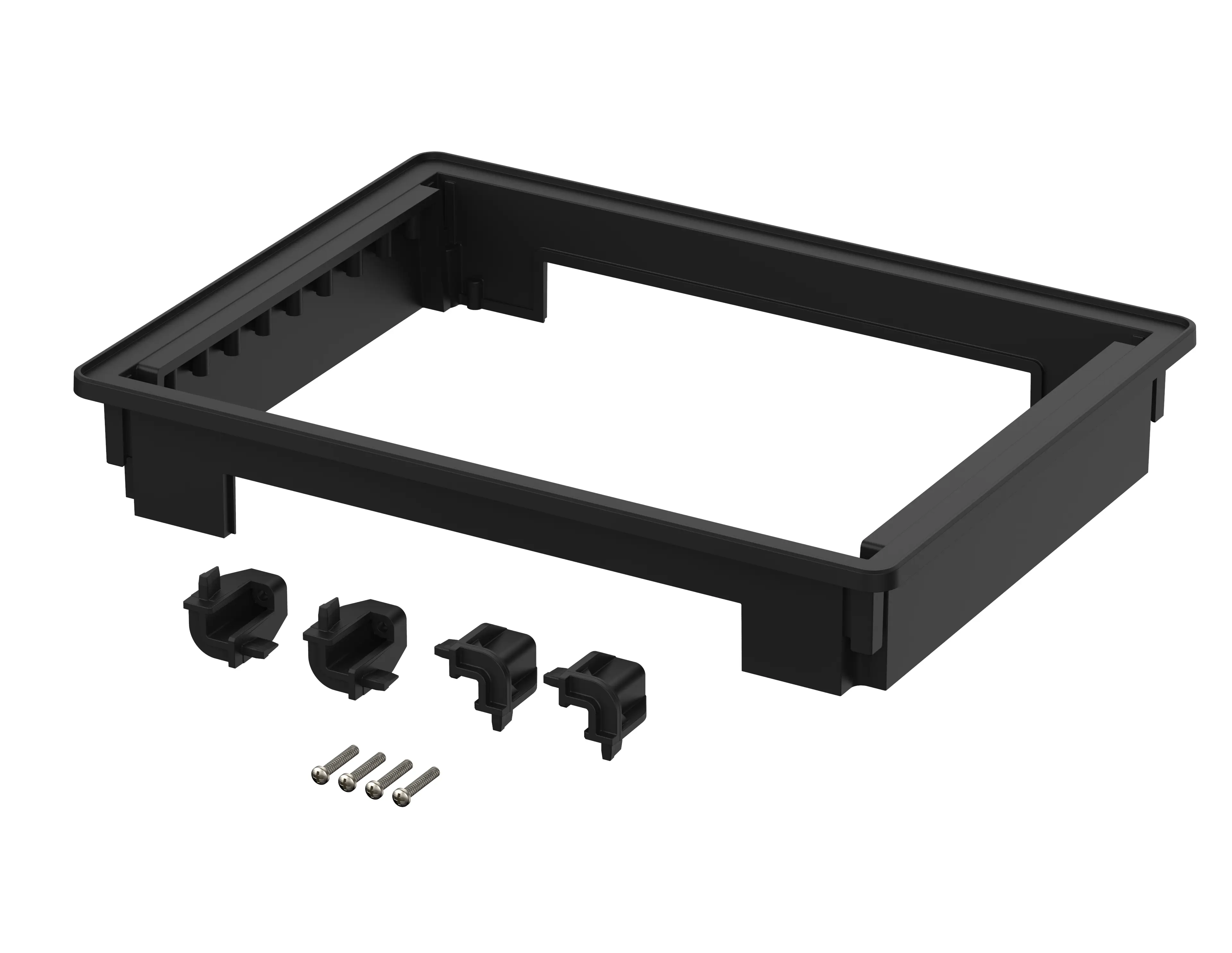

- 1 enclosure frame with foamed seal
· 4 clamps incl. screws
- 4 screws for rear hood fixing
- 1 front panel, 2 mm, anodised aluminium, 1 stick-on frame for fixing front panel
- 1 rear hood (closed), 1 mm, installation design, galvanised sheet steel, corrosion-protected
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
- botouch en.pdf(864.5 KB)
