BoTouch | BoTouch plastic, protection class IP 65, set for control panel mounting with aluminium front panel
Product drawing
Enclosure concept
Characteristics
Rear hood: galvanised sheet steel
Rear panel: anodised aluminium
BTK enclosure frame: PC UL 94 V0
BTK-IP enclosure frame: PA 6.6 GF 30 UL 94 V0
BTA front frame: aluminium (anodised or powder-coated)
Operating temperature: -25/110° C

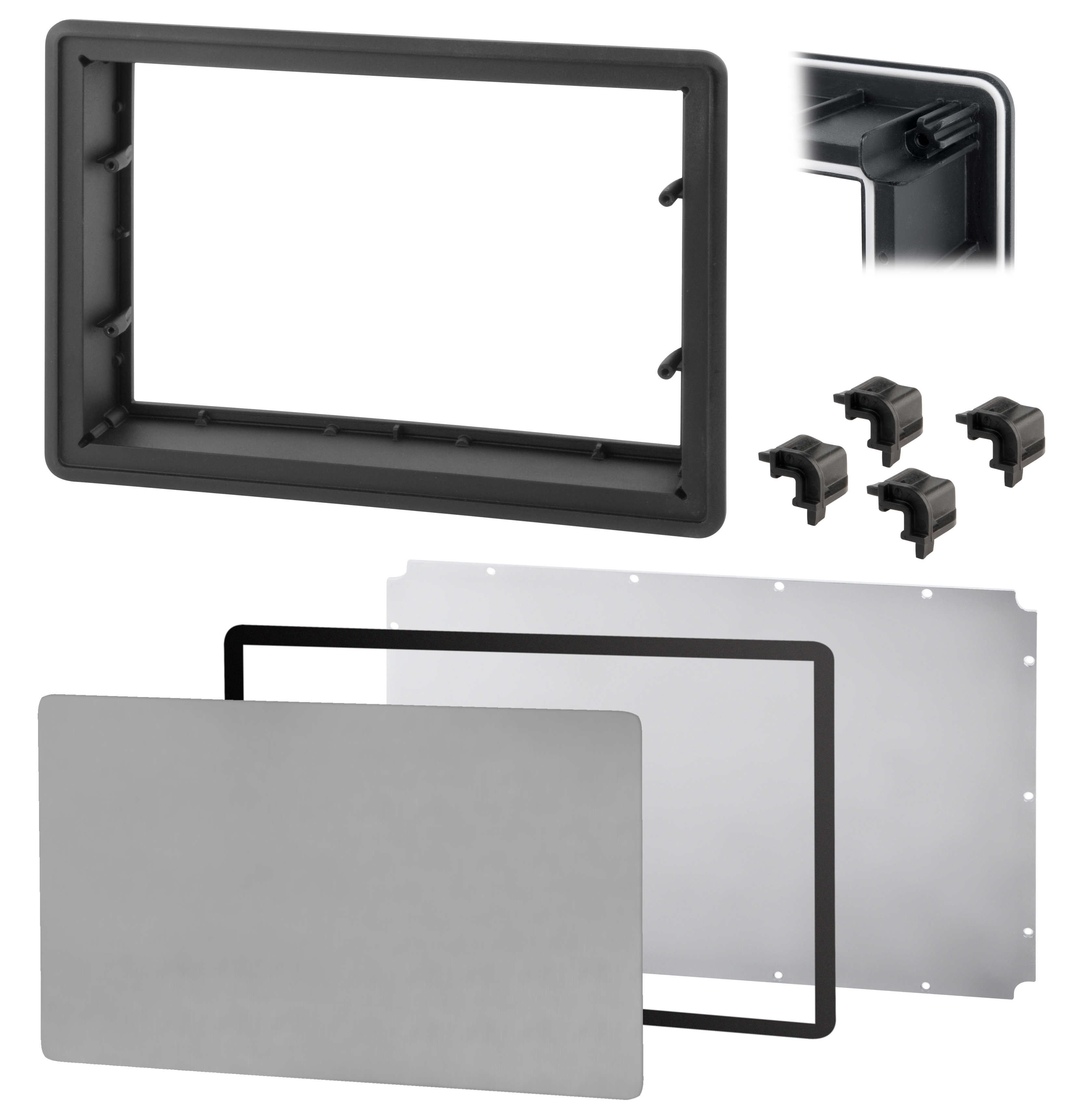

- 1 enclosure frame with foamed seals
· 4 clamps incl. screws
- Screws for rear panel fitting
- 1 front panel, anodised aluminium, 1.5 mm (BTK 4.3-IP) or 2 mm (BTK 10.1-IP)
- 1 stick-on frame for fixing front panel
- 1 rear panel, 3 mm, anodised aluminium
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
