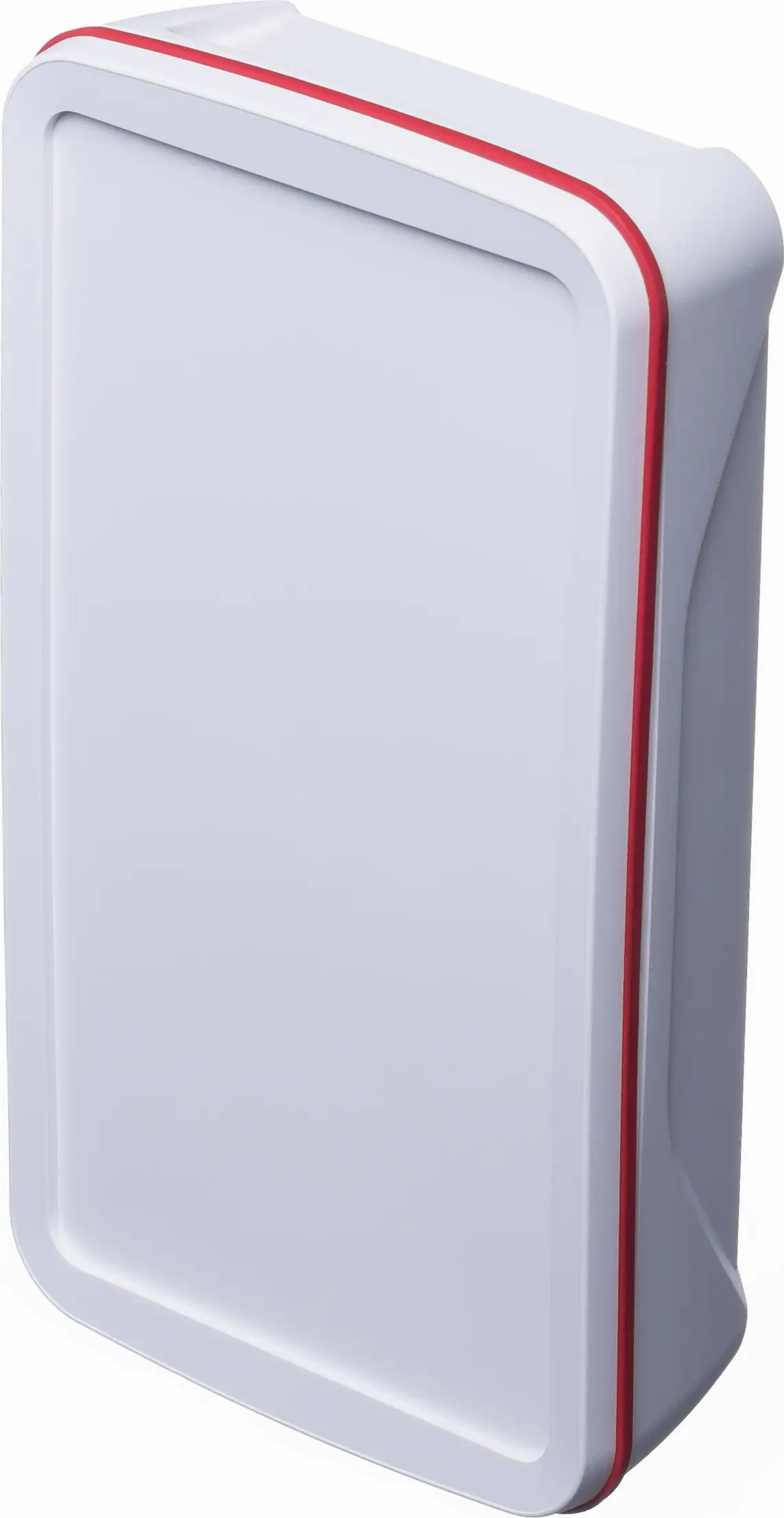

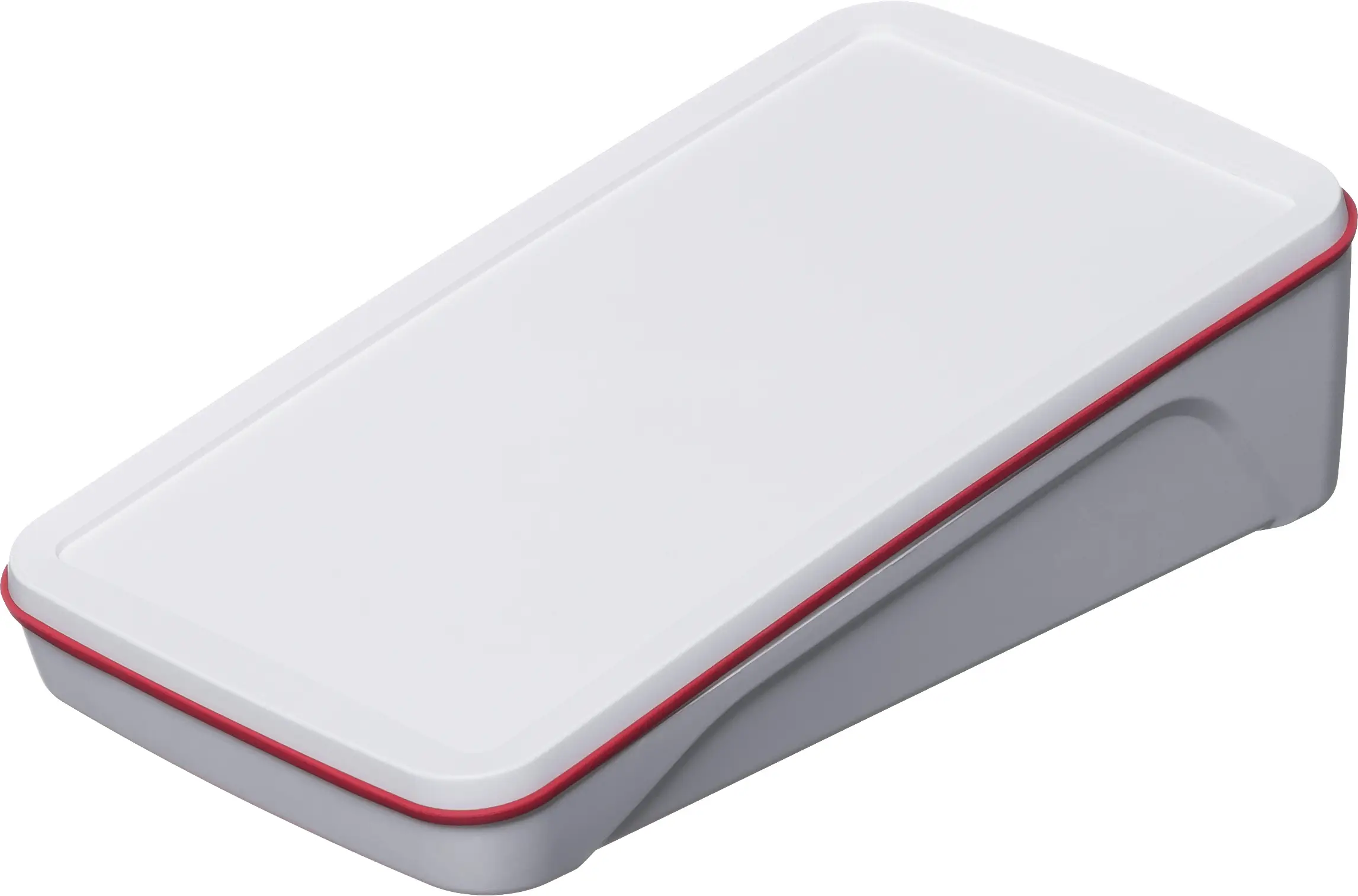

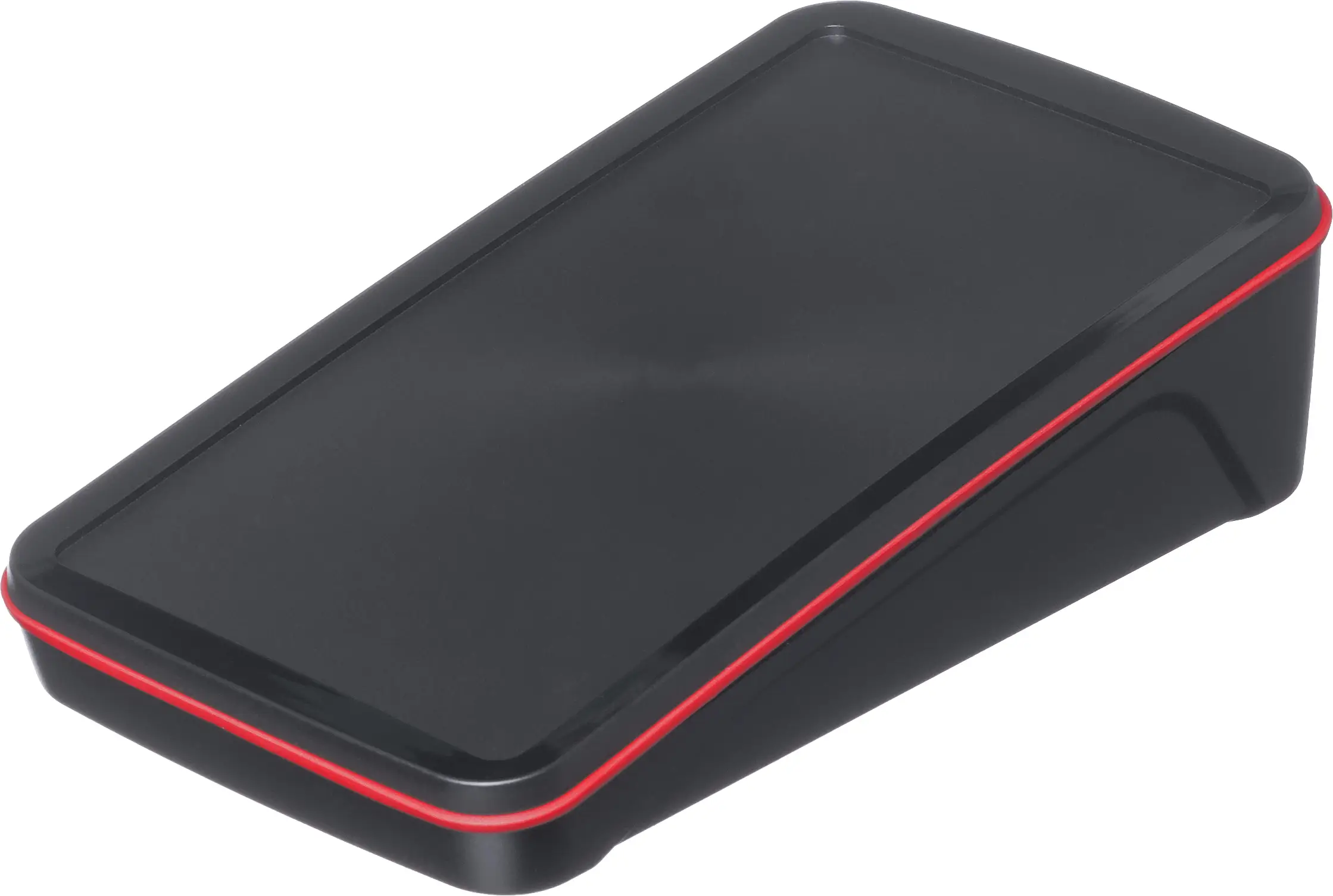

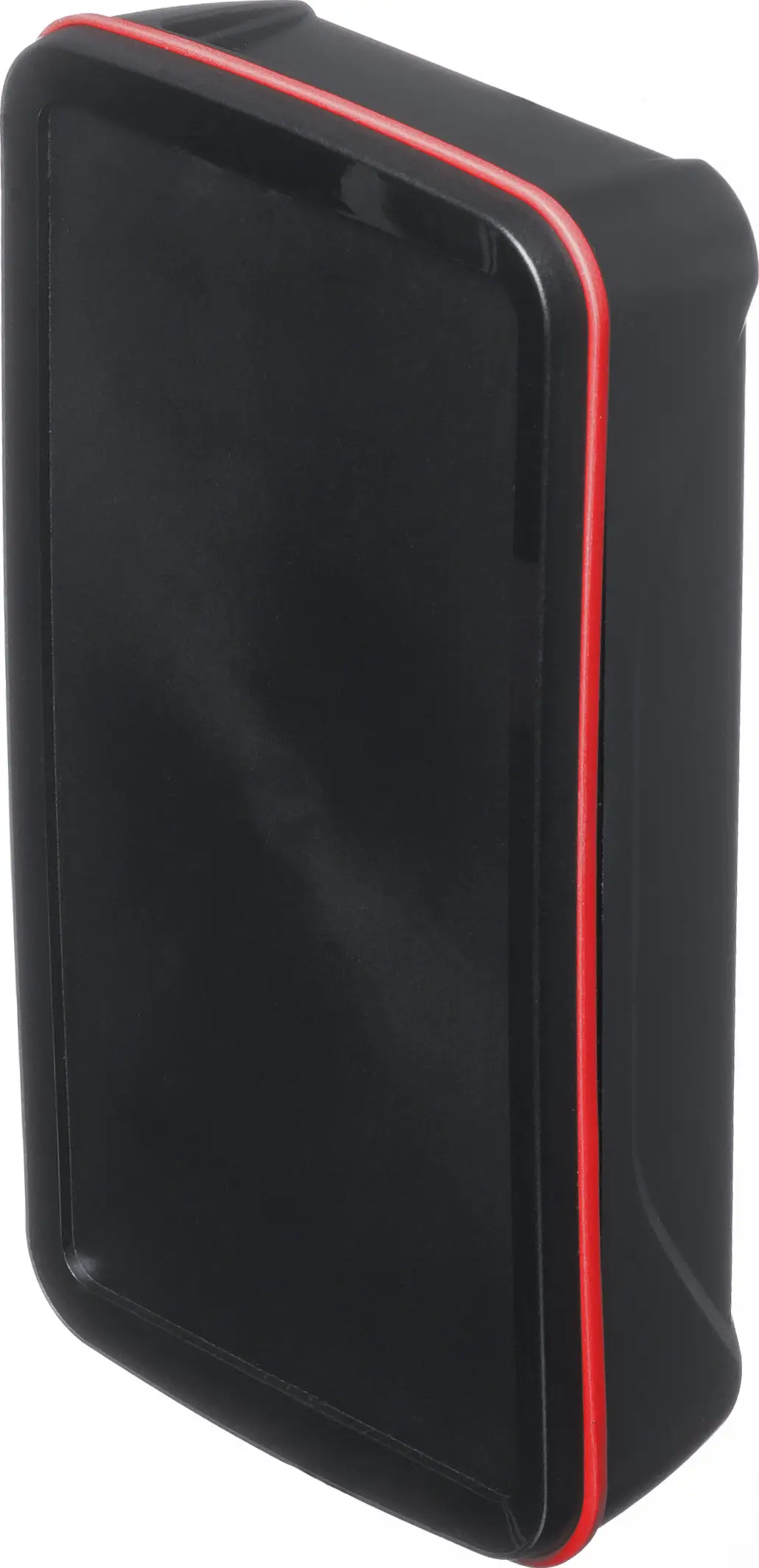

BoPad | Design seal, IP65
BOP 700 DI-3001
Order no.: 35270001
BOP 700 DI-3001
Order no.: 35270001
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
Signal red
Protection class
IP
65
NEMA
3
Enclosure Material
Enclosures: ABS
Seal / impact protection: TPE
For details see technical information
Operating temperature: -25/70° C
Scope of delivery

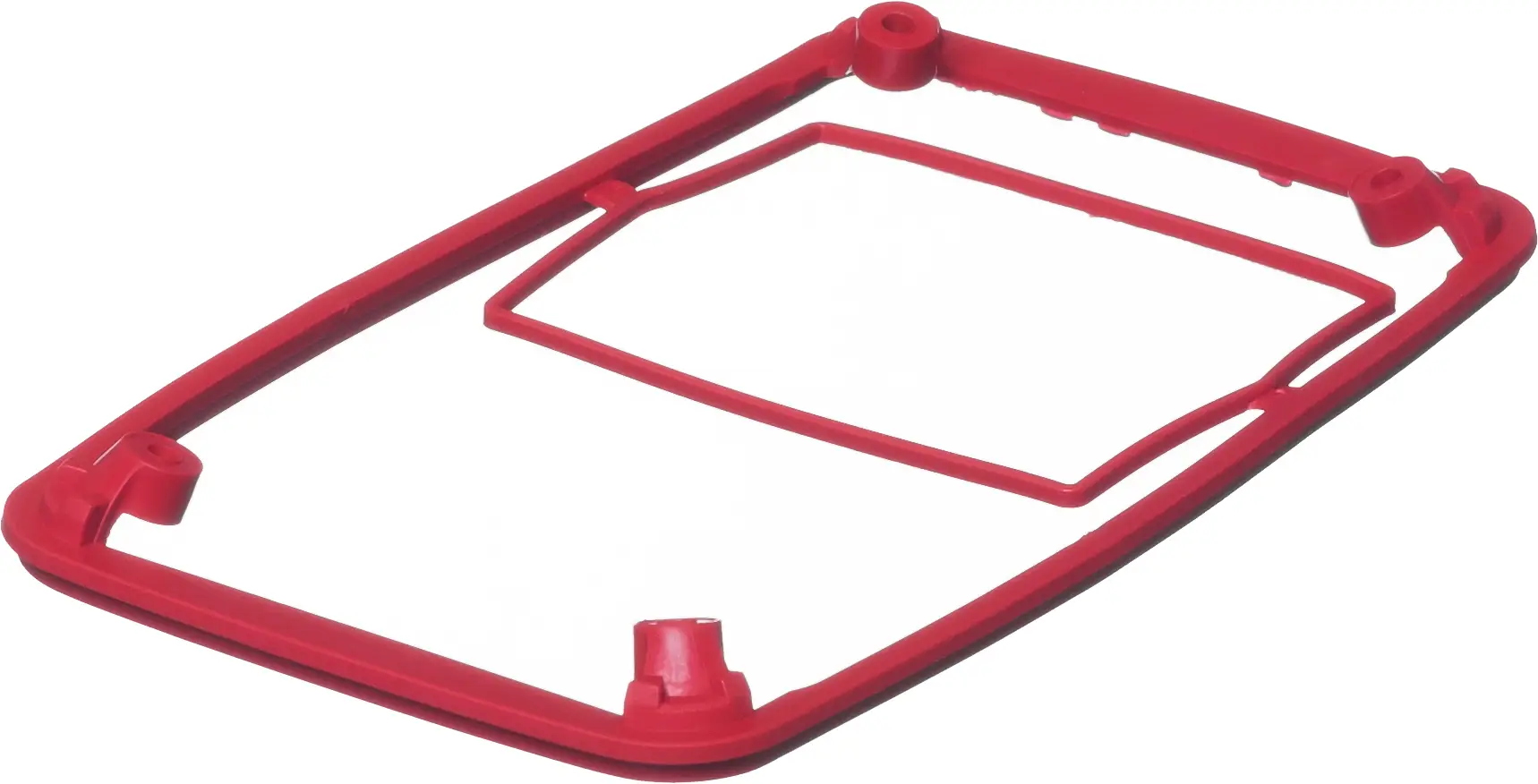

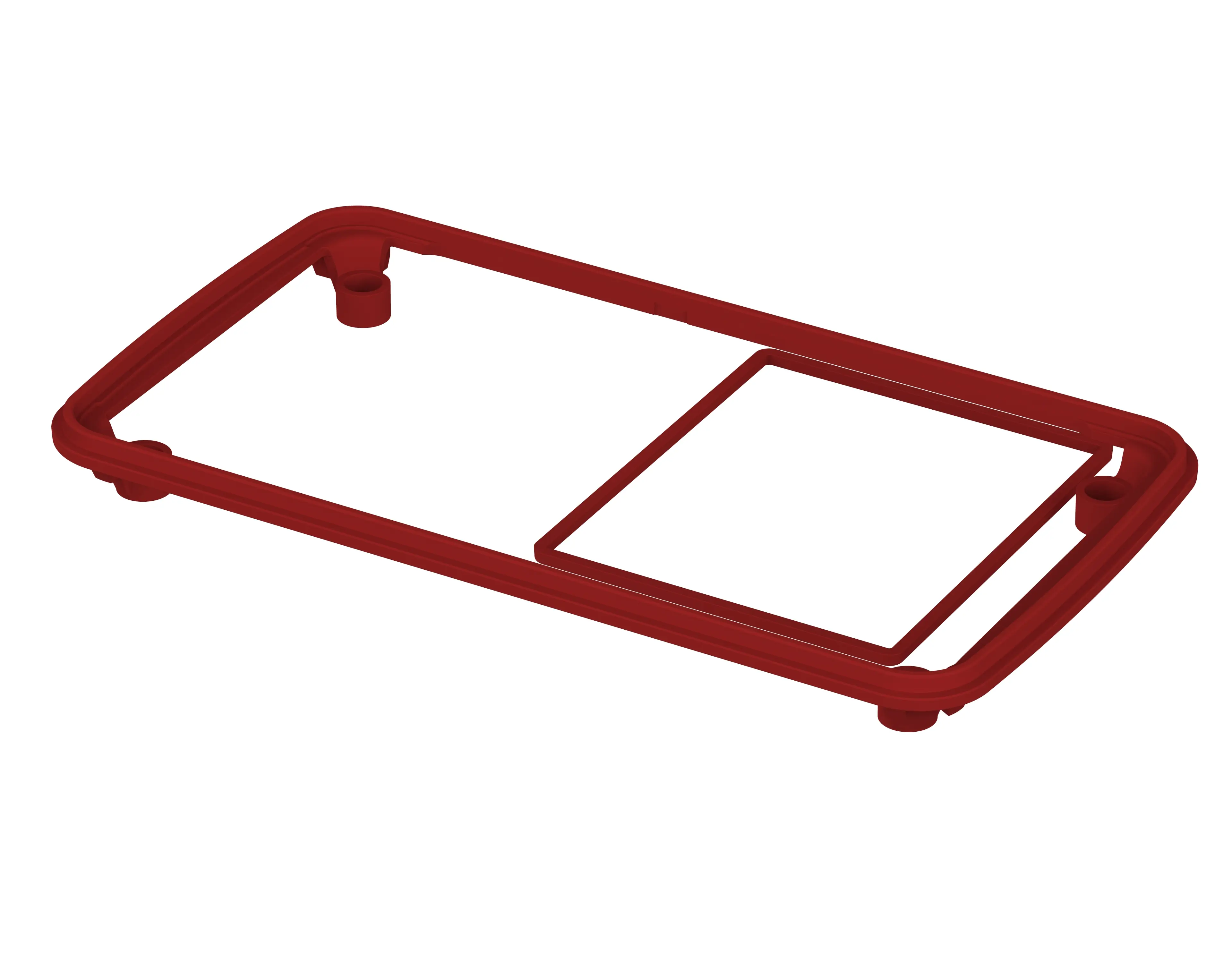

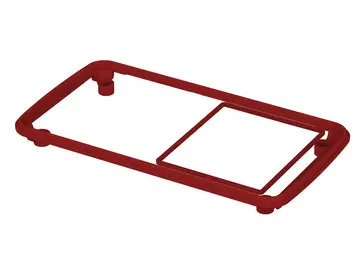

Enclosure seal and battery compartment seal
Note

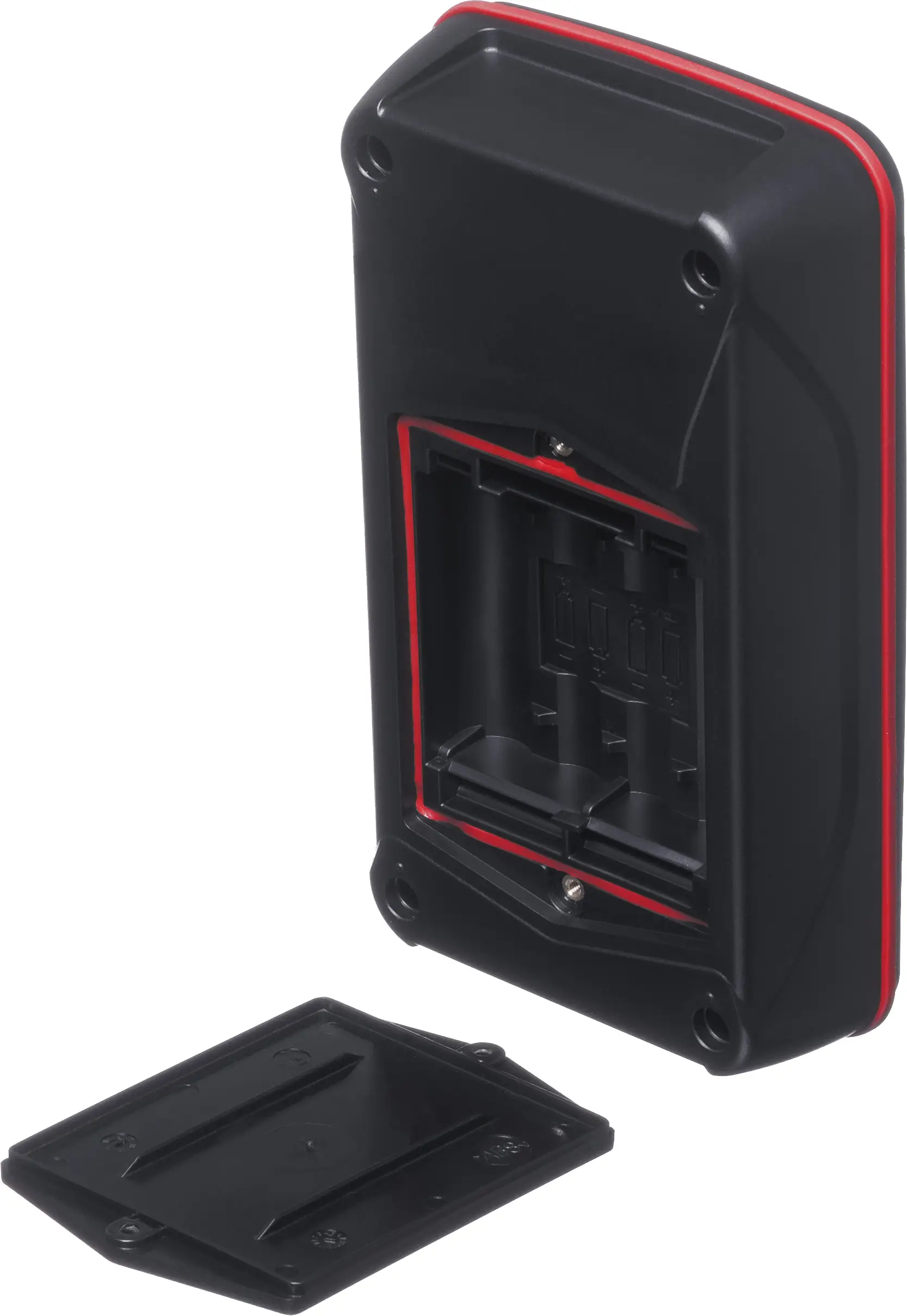

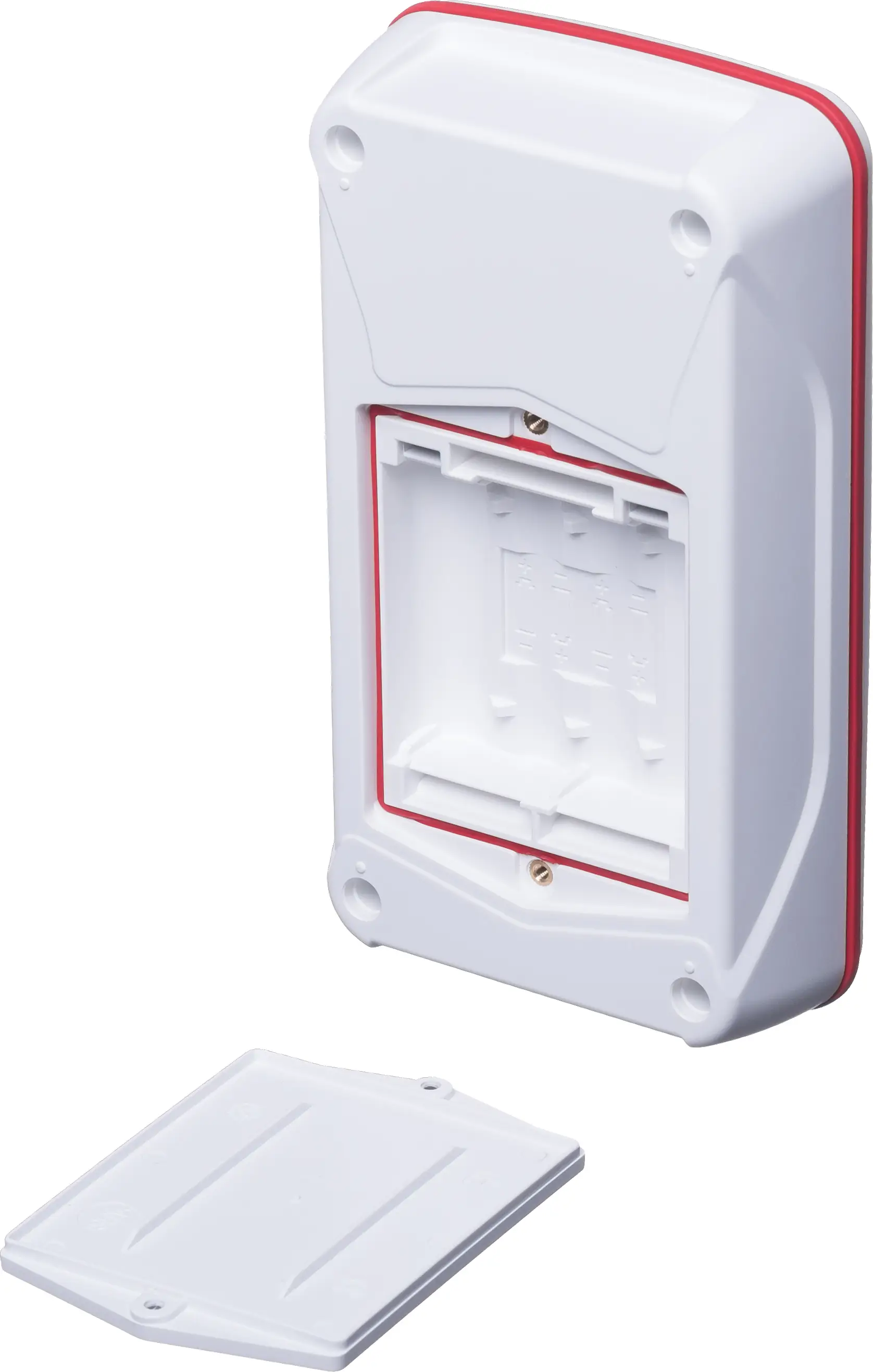

Use the battery compartment if required.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
35270001 BOP-700-DI--3001.pdf
(303.1 KB)
Product drawing in DXF format:
35270001 BOP-700-DI--3001.dxf
(4.7 MB)
TPE Megol IA 25 PUG
(Seal)
- bopad en.pdf(952.2 KB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- Kein SVHC
