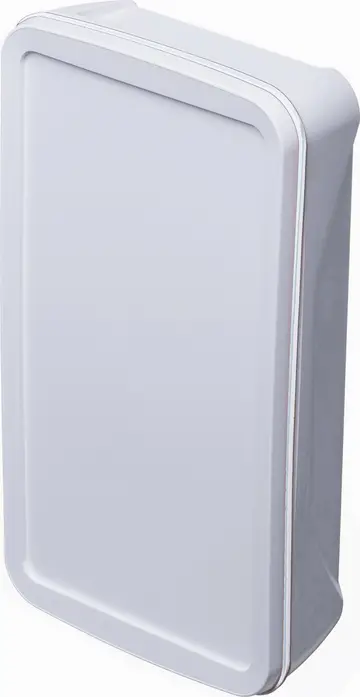

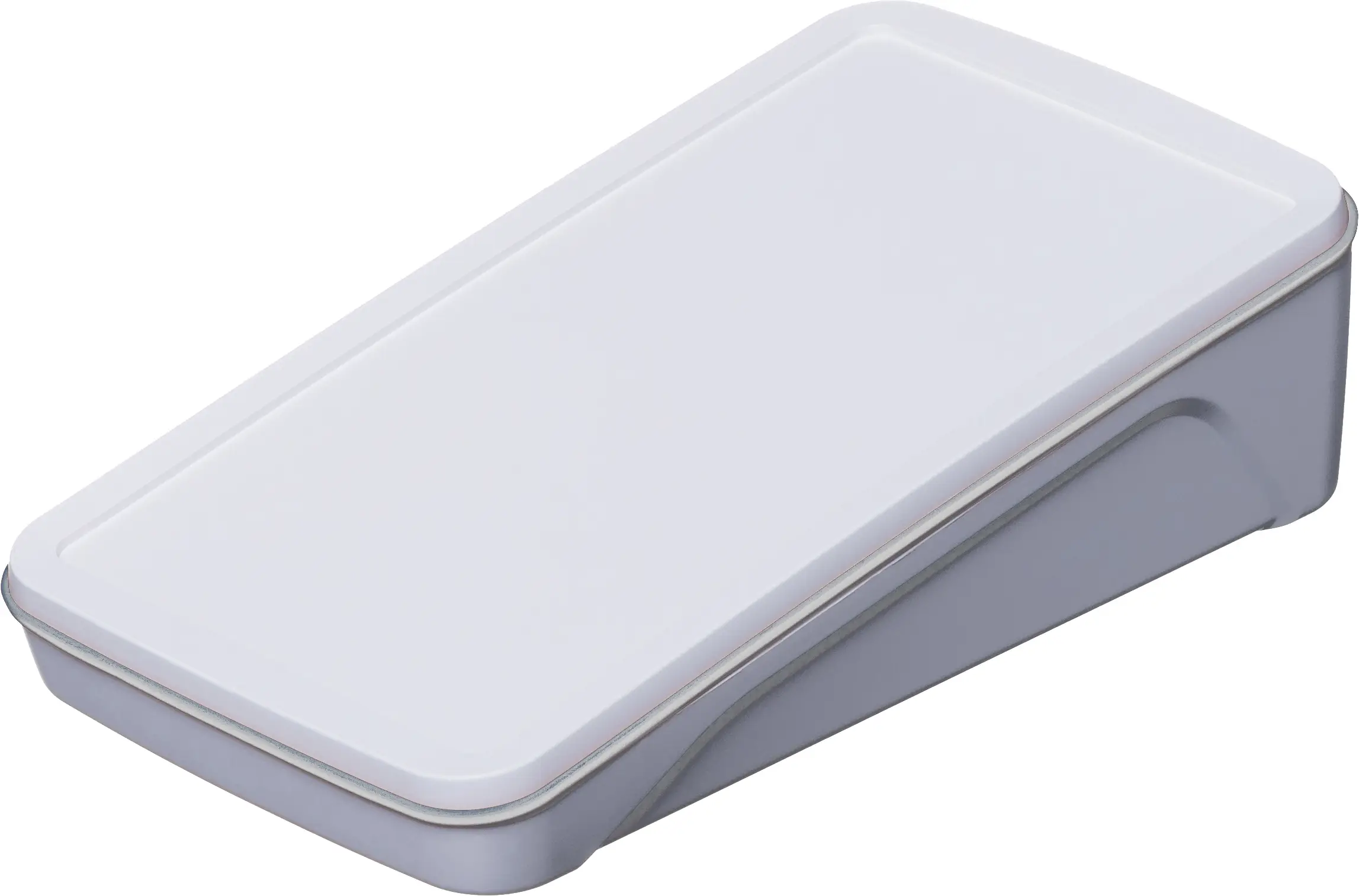

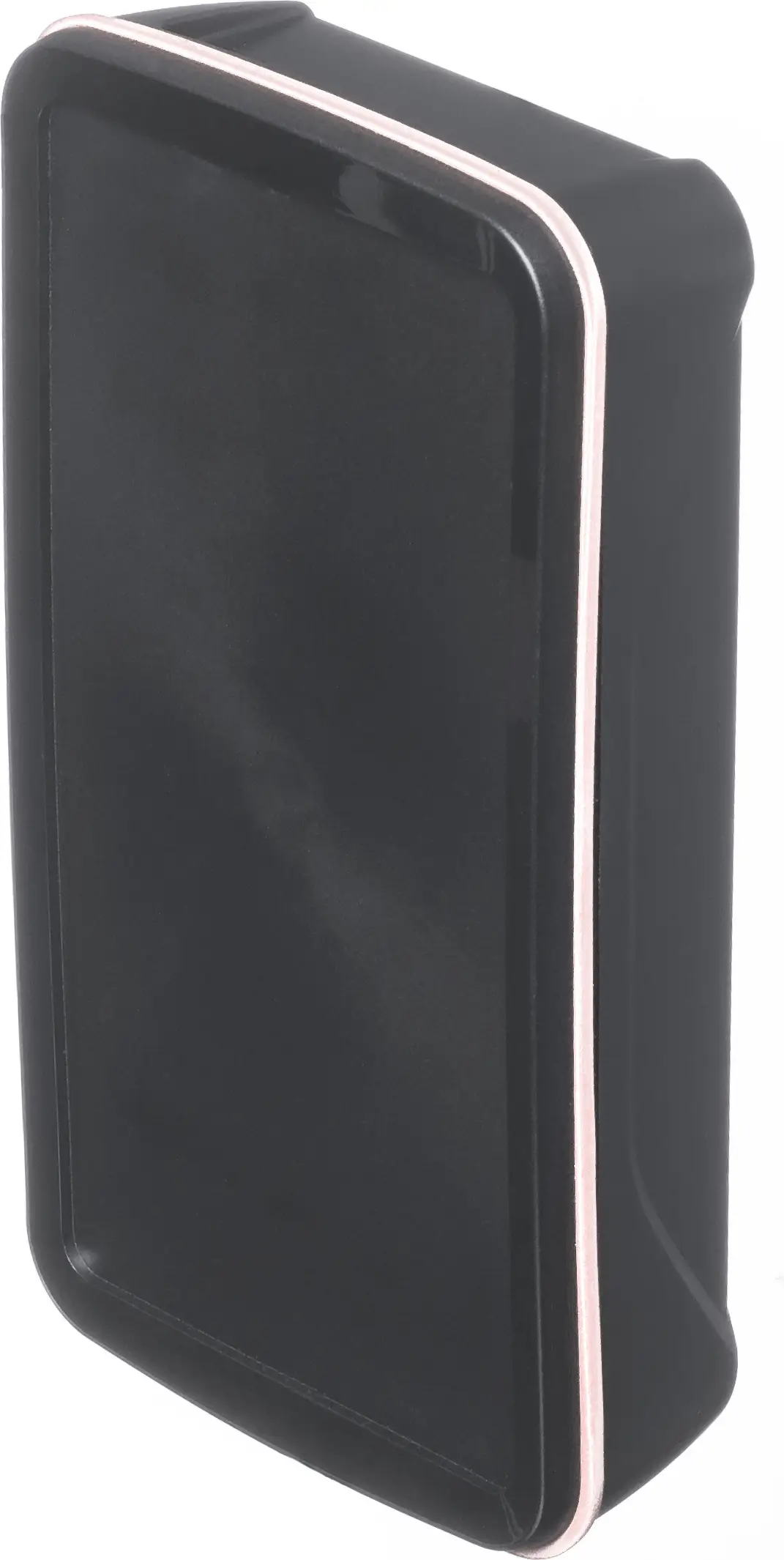

BoPad | Design seal, IP65
BOP 500 DI-9016
Order no.: 35250006
For BOP 500, 520
BOP 500 DI-9016
Order no.: 35250006
For BOP 500, 520
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
White, similar to RAL 9016
Protection class
IP
65
NEMA
3
Enclosure Material
Enclosures: ABS
Seal / impact protection: TPE
For details see technical information
Operating temperature: -25/70° C
Scope of delivery

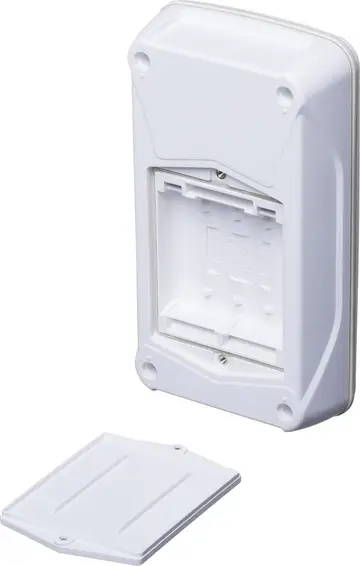

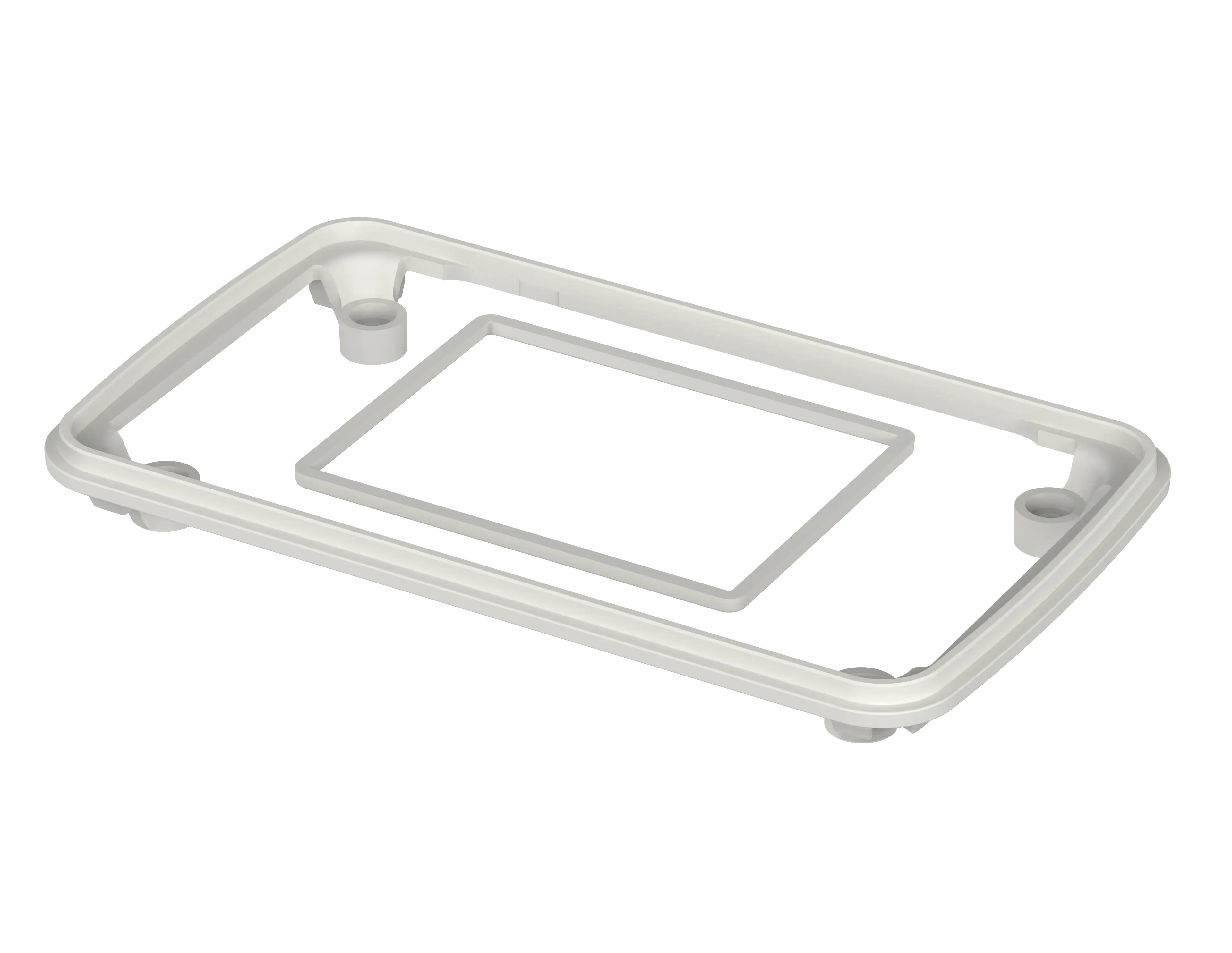

Enclosure seal and battery compartment seal
Note
Use the battery compartment if required.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
35250006 BOP-500-DI-9016.pdf
(253.2 KB)
Product drawing in DXF format:
35250006 BOP-500-DI-9016.dxf
(3.7 MB)
TPE Megol IA 25 PUG
(Seal)
- bopad en.pdf(952.2 KB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- Kein SVHC
