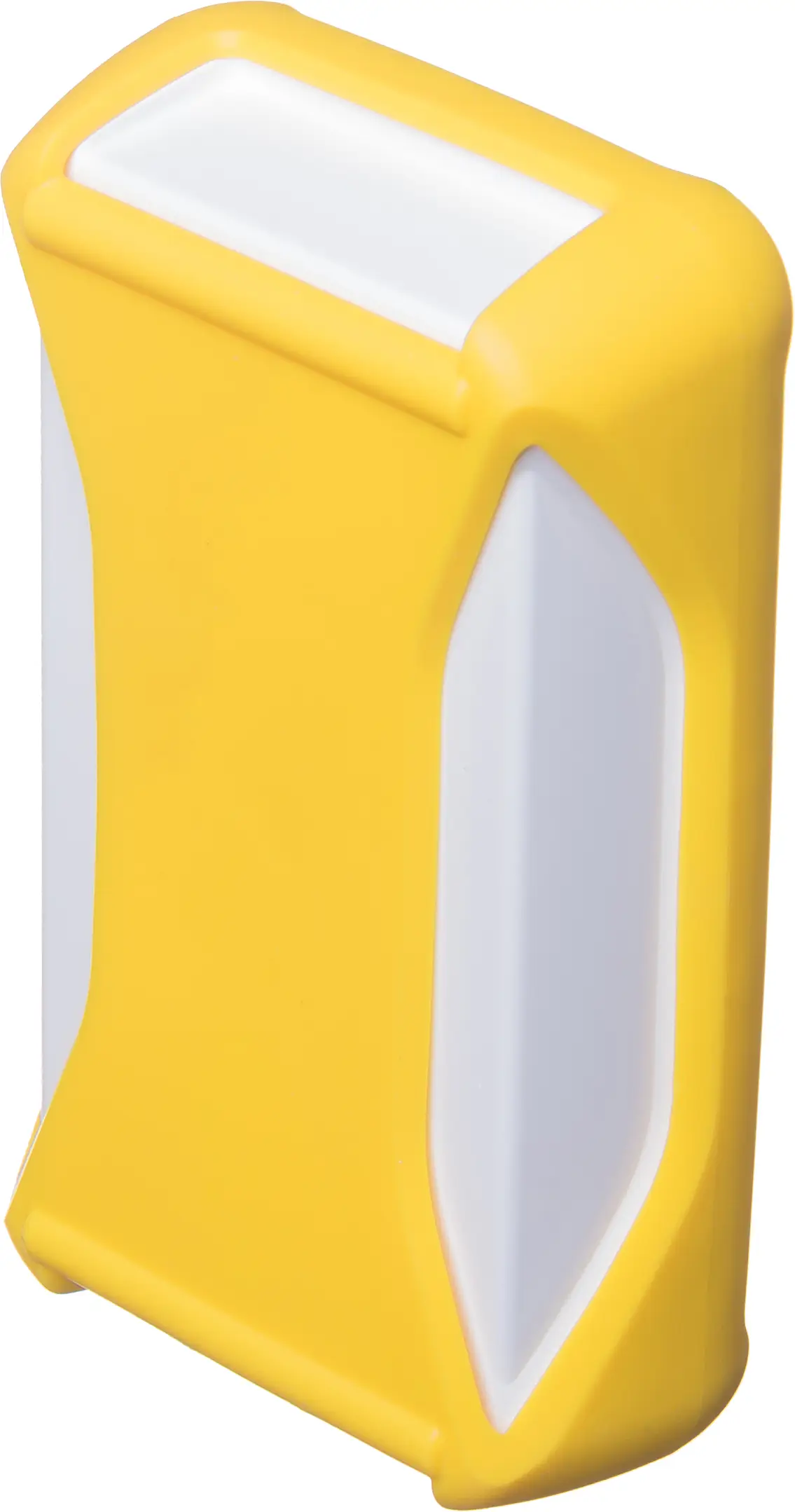

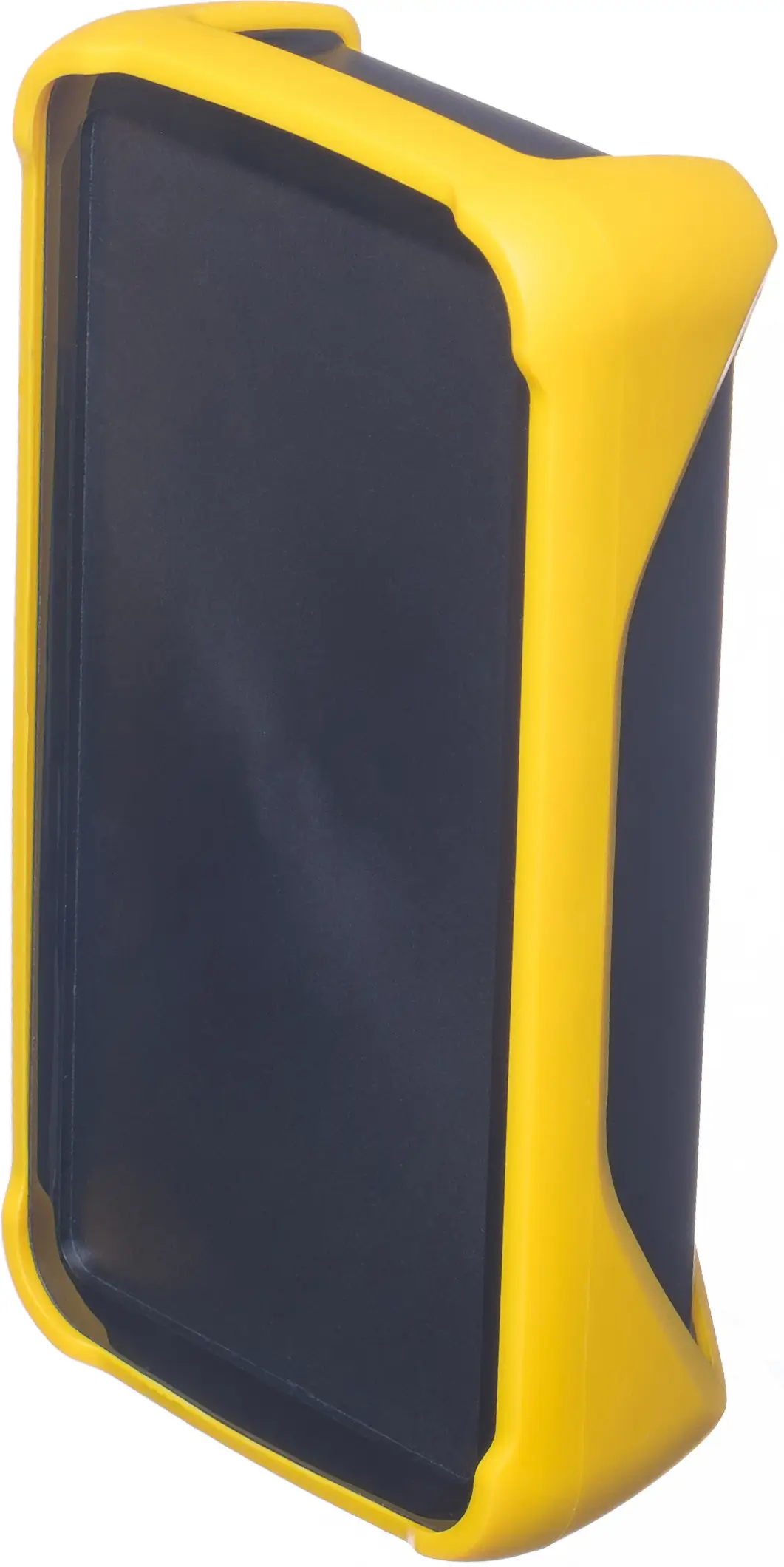

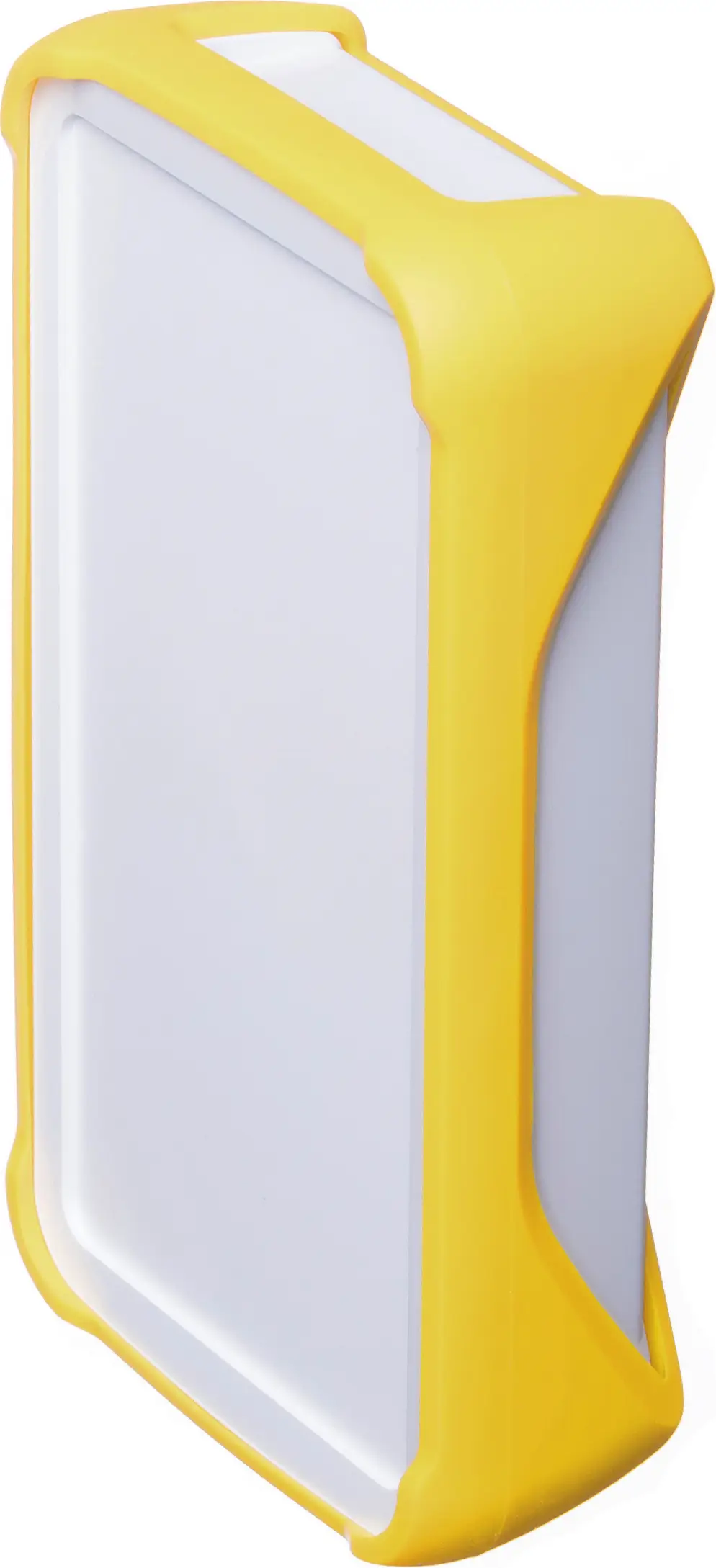

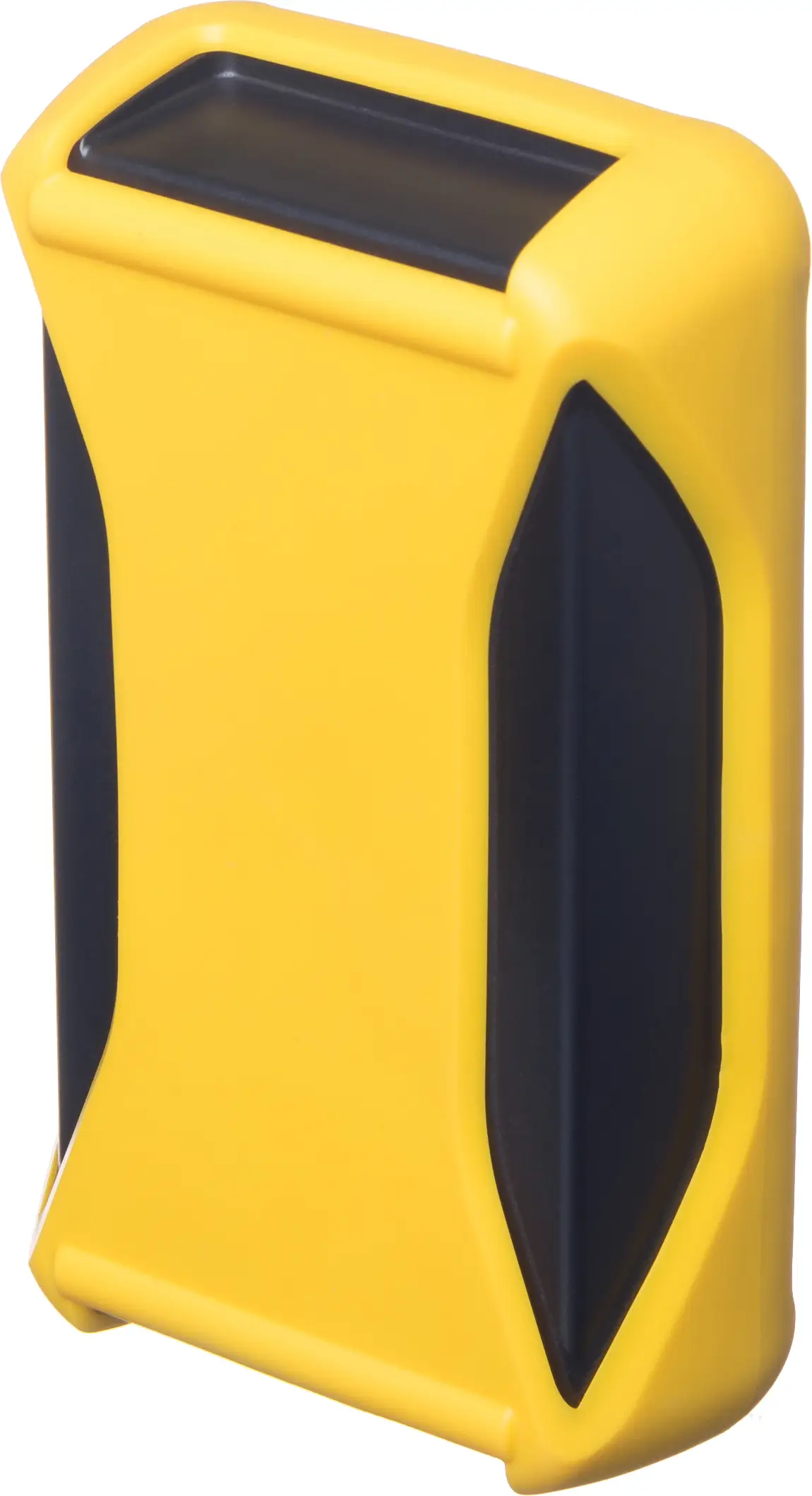

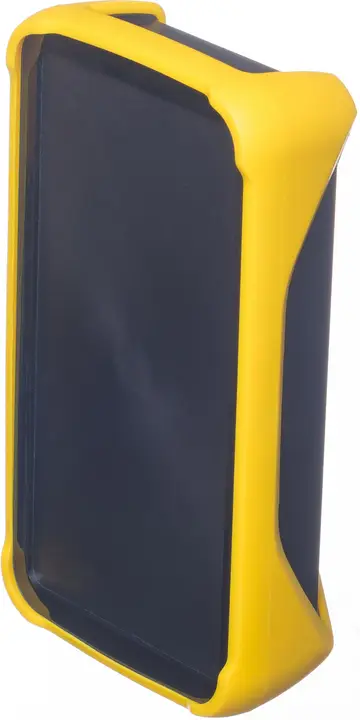

BoPad | Impact protection
BOP 900 S-1003
Order no.: 35390003
BOP 900 S-1003
Order no.: 35390003
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
Signal yellow
Enclosure Material
Enclosures: ABS
Seal / impact protection: TPE
For details see technical information
Operating temperature: -25/70° C
Scope of delivery
Impact protection
Note
With impact protection, design seal BOP...DI must be mounted on the enclosure.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
35390003 BOP-900-S-1003-G.dxf
(2.3 MB)
Product drawing in PDF format:
35390003 BOP-900-S-1003.pdf
(202.5 KB)
Product drawing in DXF format:
35390003 BOP-900-S-1003.dxf
(2.9 MB)
EPDM Guram EPK8567NHF
- bopad en.pdf(952.2 KB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- Kein SVHC
