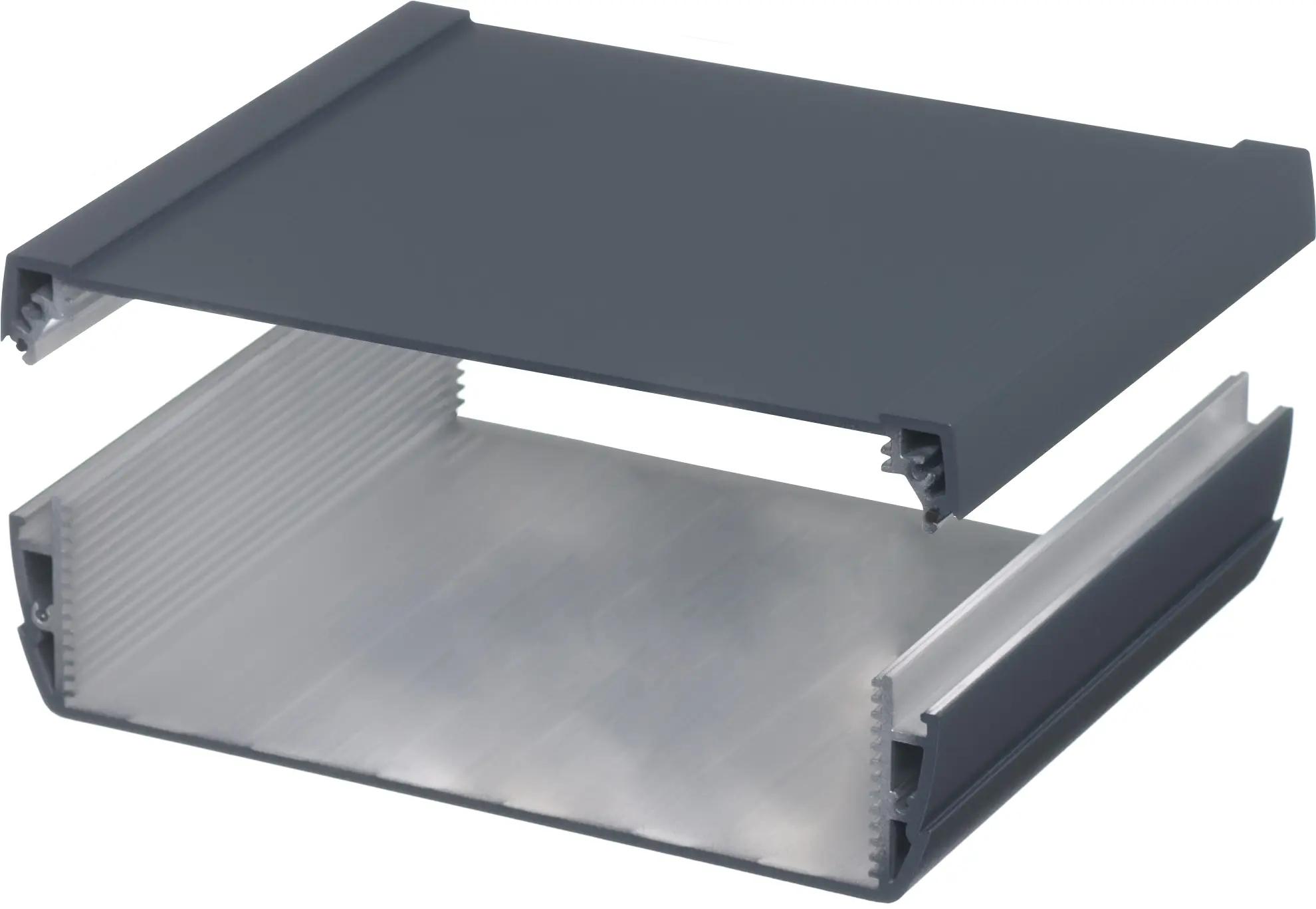

Alustyle | Enclosure profiles, horizontally-divided
ASPH 1850-0200 7024
Order no.: 94242200
ASPH 1850-0200 7024
Order no.: 94242200
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
187 x 54.6 x 200 mm
Colour of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP
65
NEMA
3
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery
Enclosure profile, two parts including profile seal
Note
C = profile length, special lengths on request.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
94242200 ASPH-1850-0200-7024-G.dxf
(429.5 KB)
Product drawing in PDF format:
94242200 ASPH-1850-0200-7024.pdf
(139.4 KB)
Product drawing in DXF format:
94242200 ASPH-1850-0200-7024.dxf
(710.8 KB)
- 686 WPZ-Alustyle-ASP DE.pdf(179.3 KB)
- 686 WPZ-Alustyle-ASP EN.pdf(151.6 KB)
- 691 WPZ-Alustyle-ASPH DE.pdf(191.3 KB)
- 691 WPZ-Alustyle-ASPH EN.pdf(183.5 KB)
AluProfil Legierung
(Profile material)
Beschichtung Brillux 5904
(Powder coating (RAL 7024))
Beschichtung Brillux 5911
(Powder coating (RAL 9006))
- alustyle en.pdf(1.5 MB)
