Alustyle | Enclosure profiles, horizontally-divided

ASPH 1540-0150 9006

Order no.: 94251150

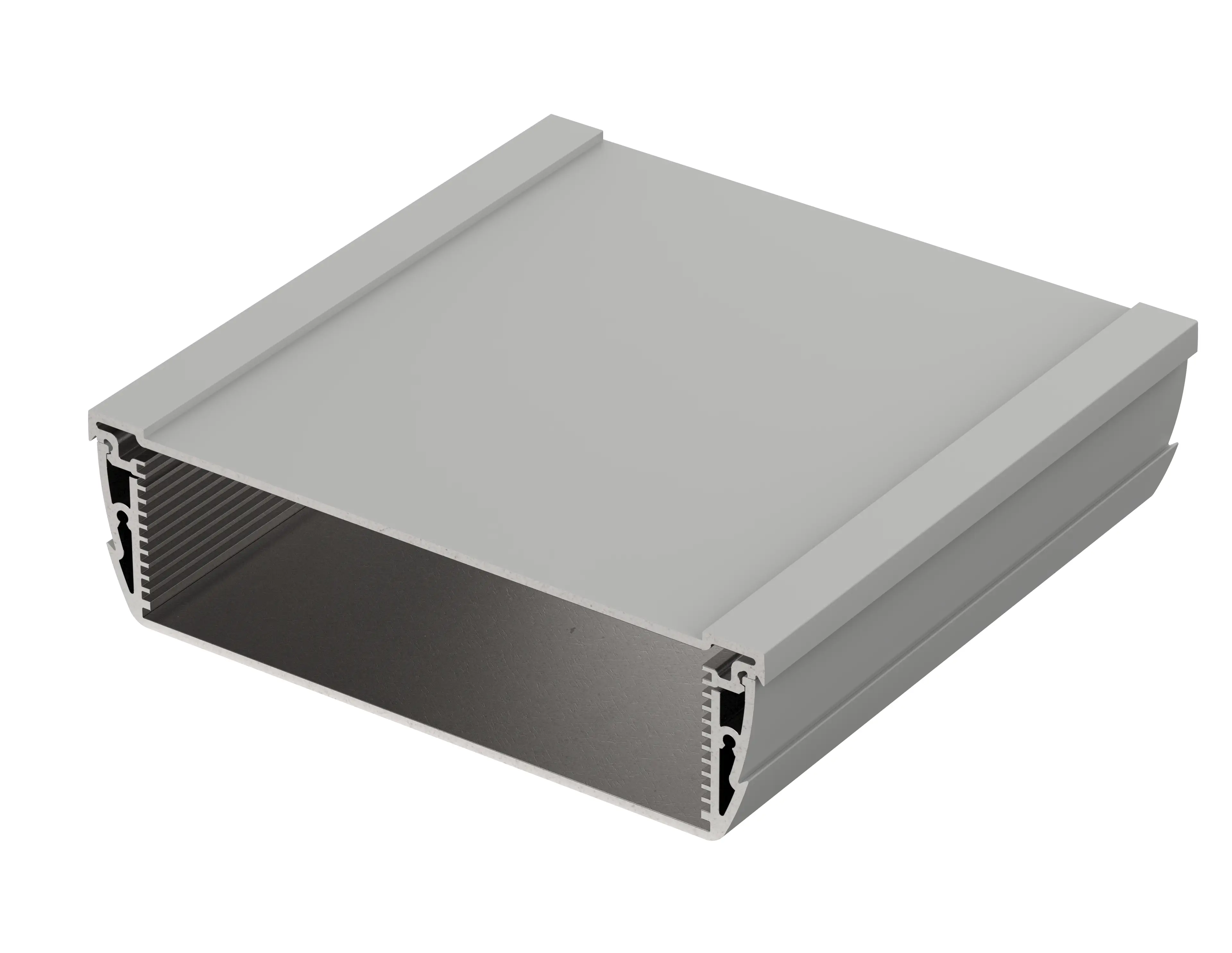

ASPH 1540 0150 9006 1 B 94251150

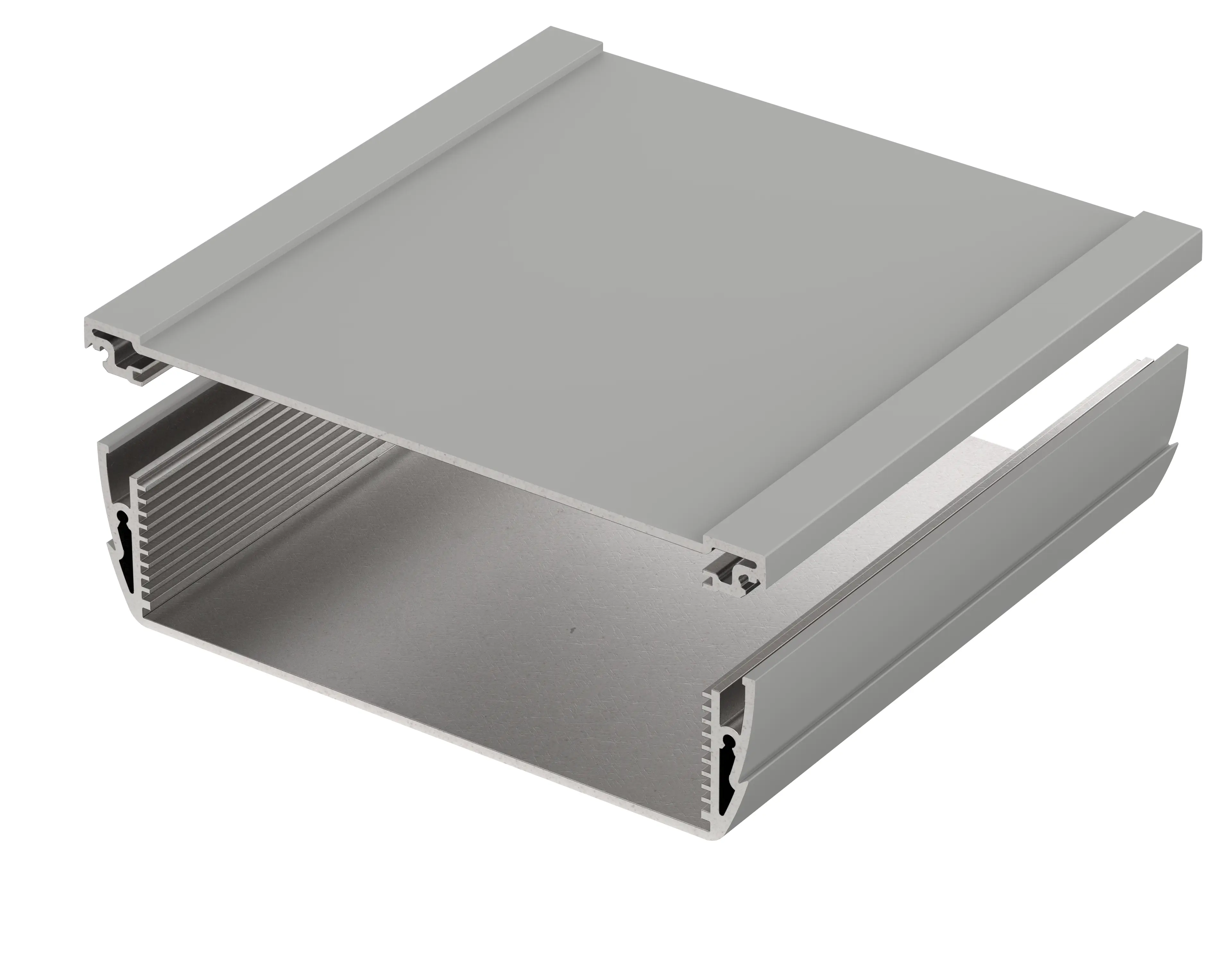

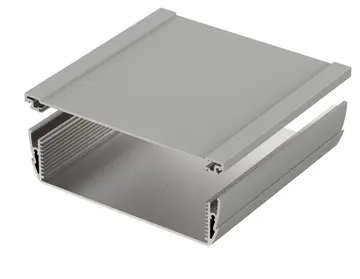

ASPH 1540 0150 9006 1a B 94251150

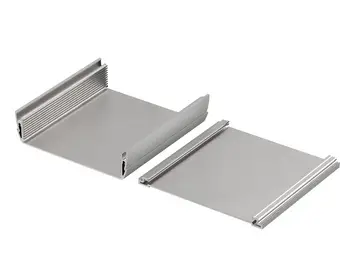

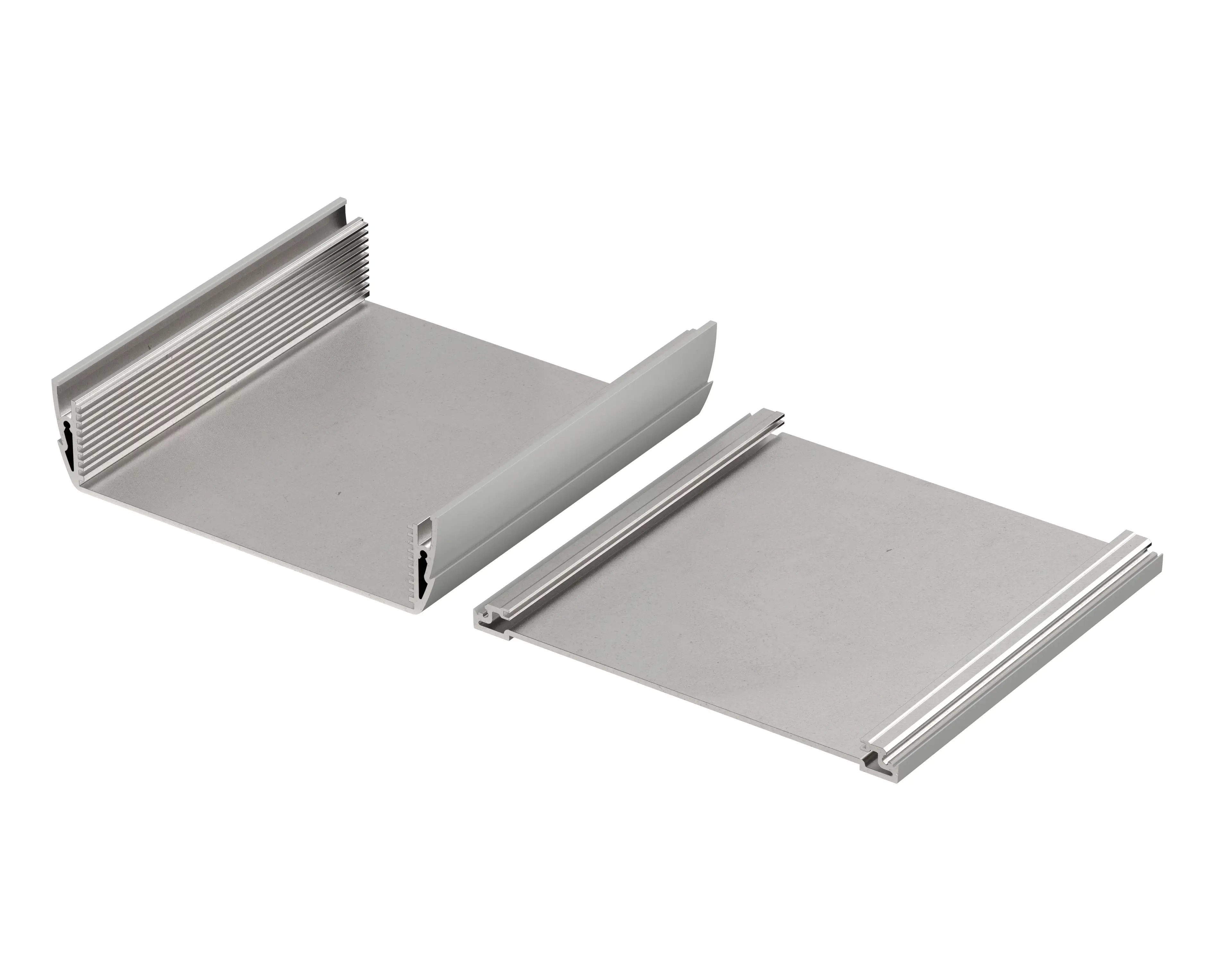

ASPH 1540 0150 9006 2 B 94251150

ASPH 1540-0150 9006

Order no.: 94251150

Add to the shopping basket

Show the shopping basketDownload print view

Please select:Product data sheet with accessories (approx. 2-5 pages)Print view without accessories (approx. 1 page)

* = Available on request.

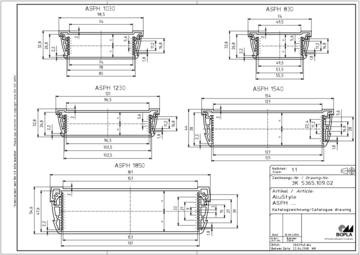

Product drawing

Enclosure concept

Characteristics

154 x 44 x 150 mm

Silver, similar to RAL 9006

IP 65

3

Extruded profiles: Al Mg Si 0.5 powder-coated;

Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;

Seal: TPE;

for details see Technical Information

Enclosure profile, two parts including profile seal

C = profile length, special lengths on request.

Important!

To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.

In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.

» Additional information

Technical documentation / Downloads

3D product data in STEP format:

Drawing for mechanical processing:

94251150 ASPH-1540-0150-9006-G.dxf (600.0 KB)

Milling contours are shown here as a DXF file. (Sub D, USB, HDMI, cable glands, ...)

Product drawing in PDF format:

94251150 ASPH-1540-0150-9006.pdf (150.8 KB)

Product drawing in DXF format:

94251150 ASPH-1540-0150-9006.dxf (892.7 KB)

I have read and agreed to this information.

AluProfil Legierung (Profile material)

Materialdatenblatt deutsch

Beschichtung Brillux 5904 (Powder coating (RAL 7024))

Beschichtung Brillux 5911 (Powder coating (RAL 9006))

Materialdatenblatt deutsch

alustyle en.pdf(1.5 MB)

Alustyle ASPH Profil Geteilt Profile Divided 94111801.pdf(185.6 KB)
