Alustyle | Enclosure profiles, horizontally-divided

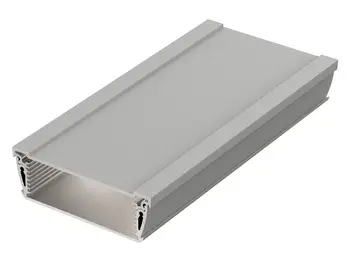

ASPH 1030-0200 9006
Order no.: 94221200
ASPH 1030-0200 9006
Order no.: 94221200
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing

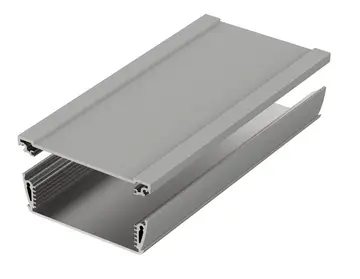

Enclosure concept
Characteristics
Dimensions
98.5 x 32.8 x 200 mm
Colour of enclosure group
Silver, similar to RAL 9006
Protection class
IP
65
NEMA
3
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery

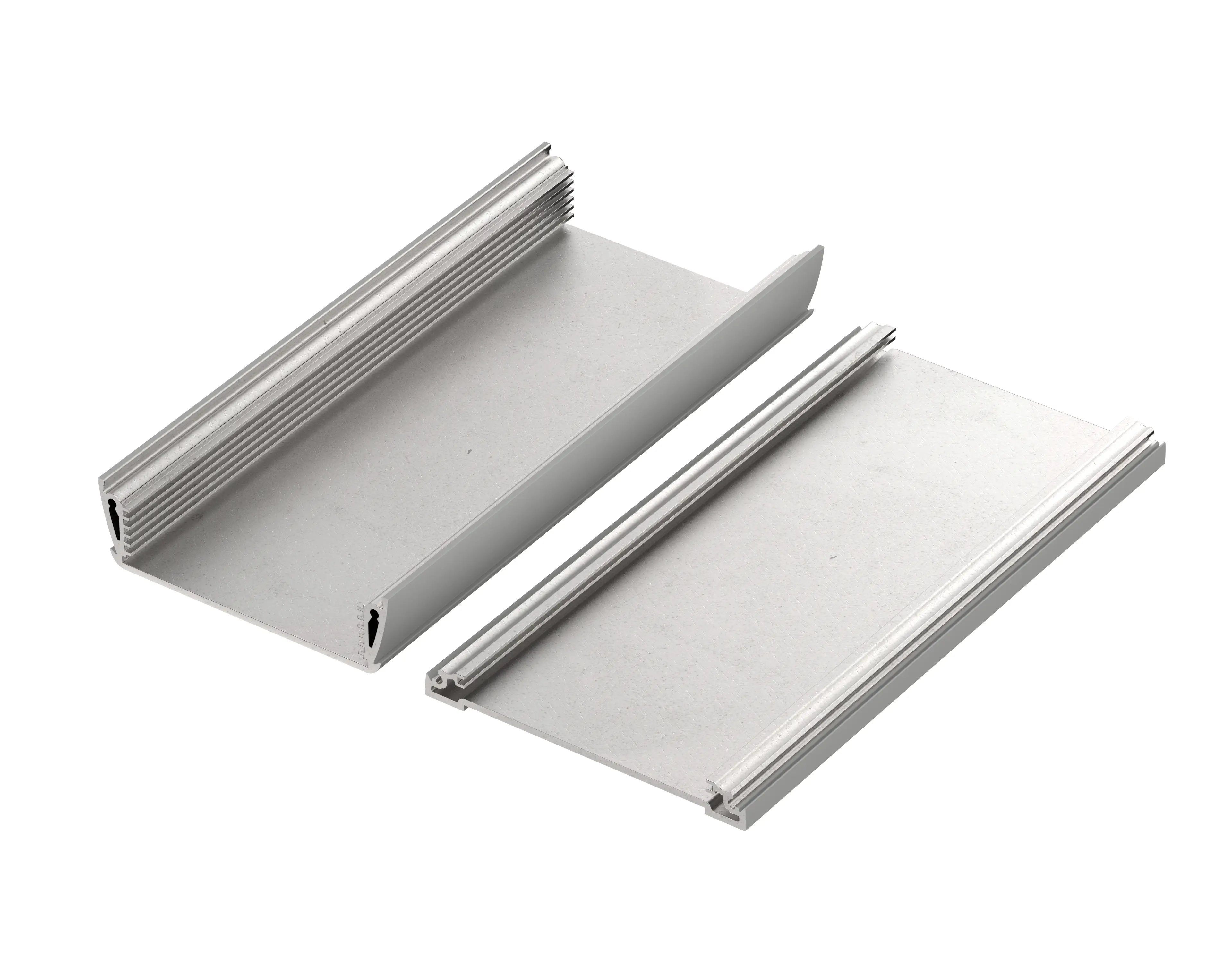

Enclosure profile, two parts including profile seal
Note
C = profile length, special lengths on request.
