Alustyle | Enclosure profiles, horizontally-divided
ASPH 1030-0100 9006
Order no.: 94221100
ASPH 1030-0100 9006
Order no.: 94221100
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.

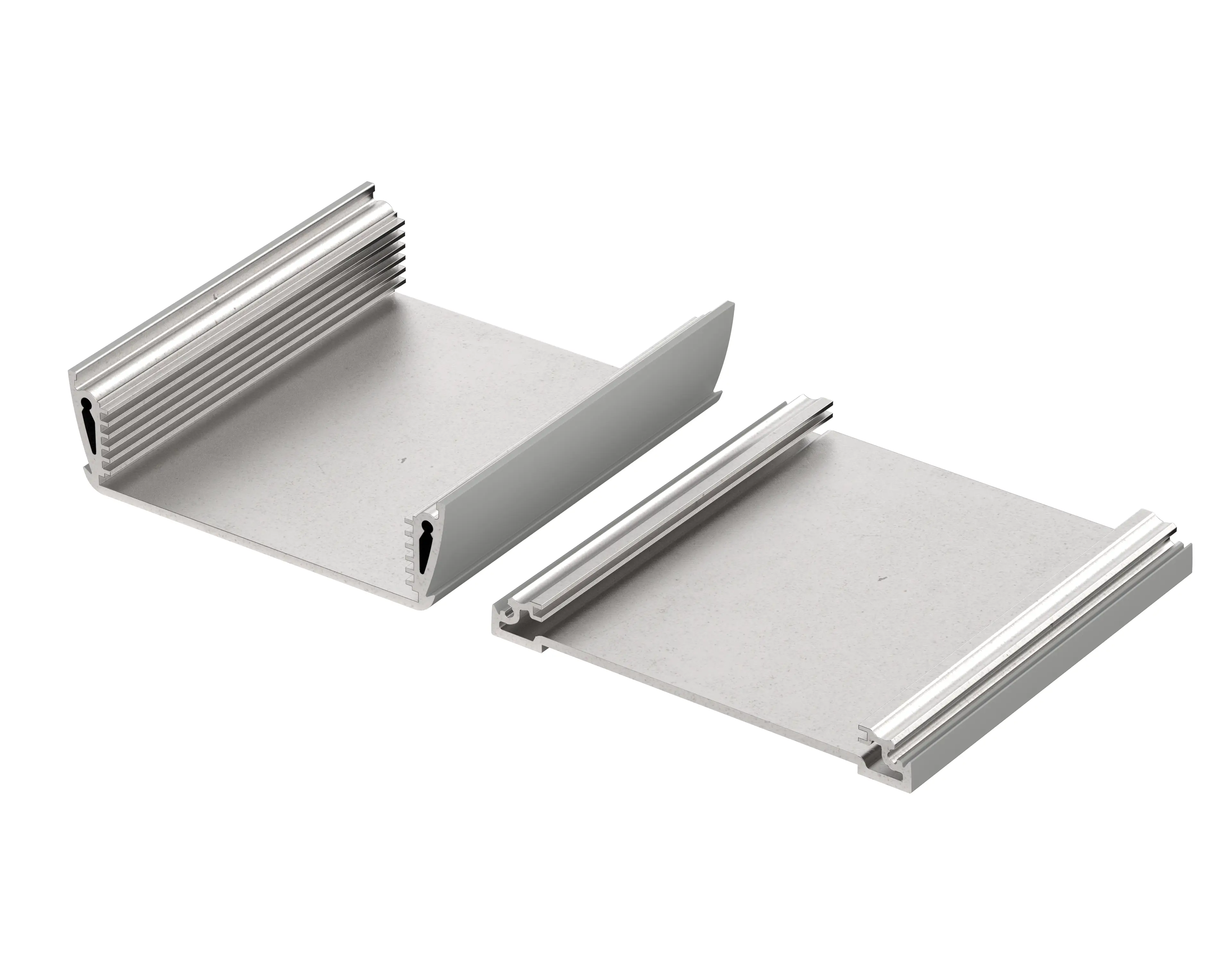

Product drawing
Enclosure concept
Characteristics
Dimensions
98.5 x 32.8 x 100 mm
Colour of enclosure group
Silver, similar to RAL 9006
Protection class
IP
65
NEMA
3
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery
Enclosure profile, two parts including profile seal
Note
C = profile length, special lengths on request.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
