Ultramas | Extension set, plain, with air vents (L), 3 HP / 9 HP
AB 02609
Order no.: 56026000
9 HP; For UM 32609(L), 62609(L)
AB 02609
Order no.: 56026000
9 HP; For UM 32609(L), 62609(L)
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.

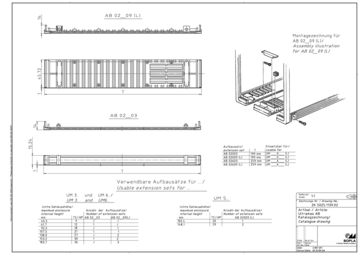

Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
Light grey
Protection class
IP
40
Enclosure Material
ABS; for details see Technical Information
Scope of delivery
2 extension units, fitting material
Note
** AB 02003 can also be used for UM 52011(L), but please order 4 SHR-Z-M3x40 screws, 59005541, for each extension set.
Front panel FP(K) 50014 available on request.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
56026000 AB-02609-G.dxf
(504.3 KB)
Product drawing in PDF format:
56026000 AB-02609.pdf
(479.0 KB)
Product drawing in DXF format:
56026000 AB-02609.dxf
(5.5 MB)
- ultramas en.pdf(778.4 KB)
