Ultramas | Extension sets

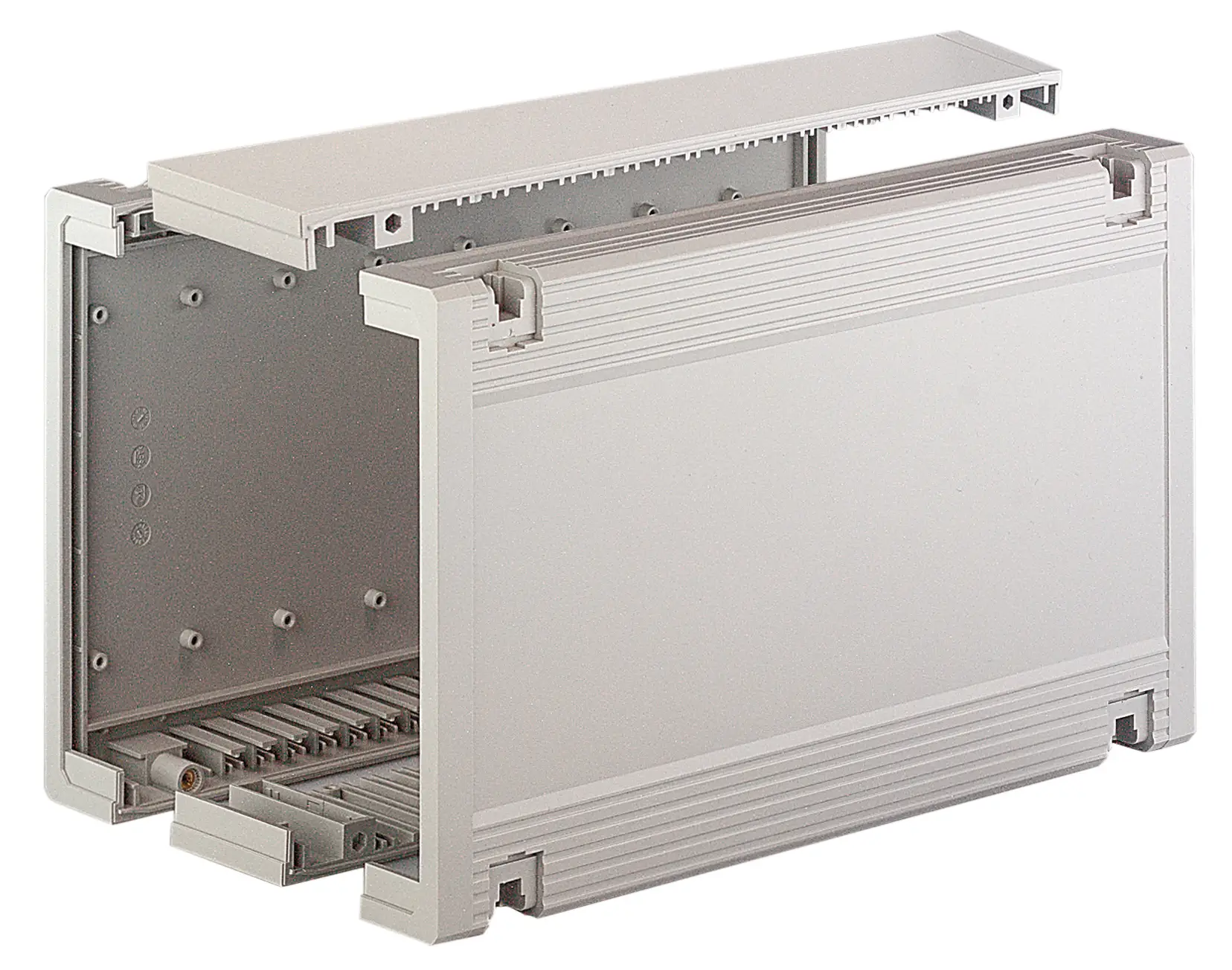

Extension set, plain, with air vents (L), 3 HP / 9 HP

Model	Order no.	IP	Note
AB 02003	56020500	40	3 HP; For UM 32009(L), 62009(L), 52011(L)**
AB 02009	56020000	40	9 HP; For UM 32009(L), 52011(L), 62009(L)
AB 02009 L	56020010	30	9 HP; For UM 32009(L), 52011(L), 62009(L)
AB 02603	56026500	40	3 HP; For UM 32609(L), 62609(L)
AB 02609	56026000	40	9 HP; For UM 32609(L), 62609(L)
AB 02609 L	56026010	30	9 HP; For UM 32609(L), 62609(L)

Notes:

** AB 02003 can also be used for UM 52011(L), but please order 4 SHR-Z-M3x40 screws, 59005541, for each extension set.

Front panel FP(K) 50014 available on request.

Scope of delivery:
2 extension units, fitting material
