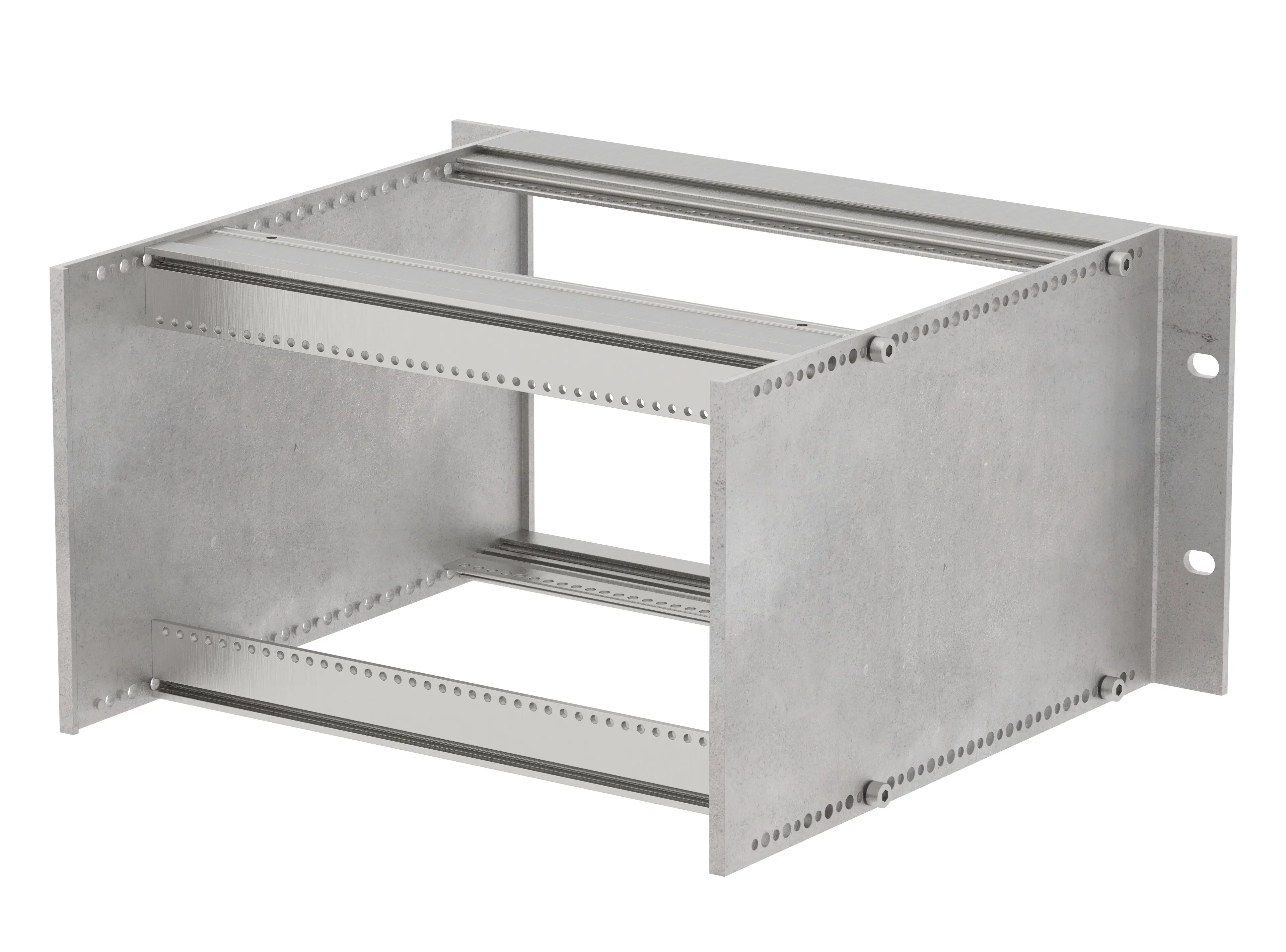

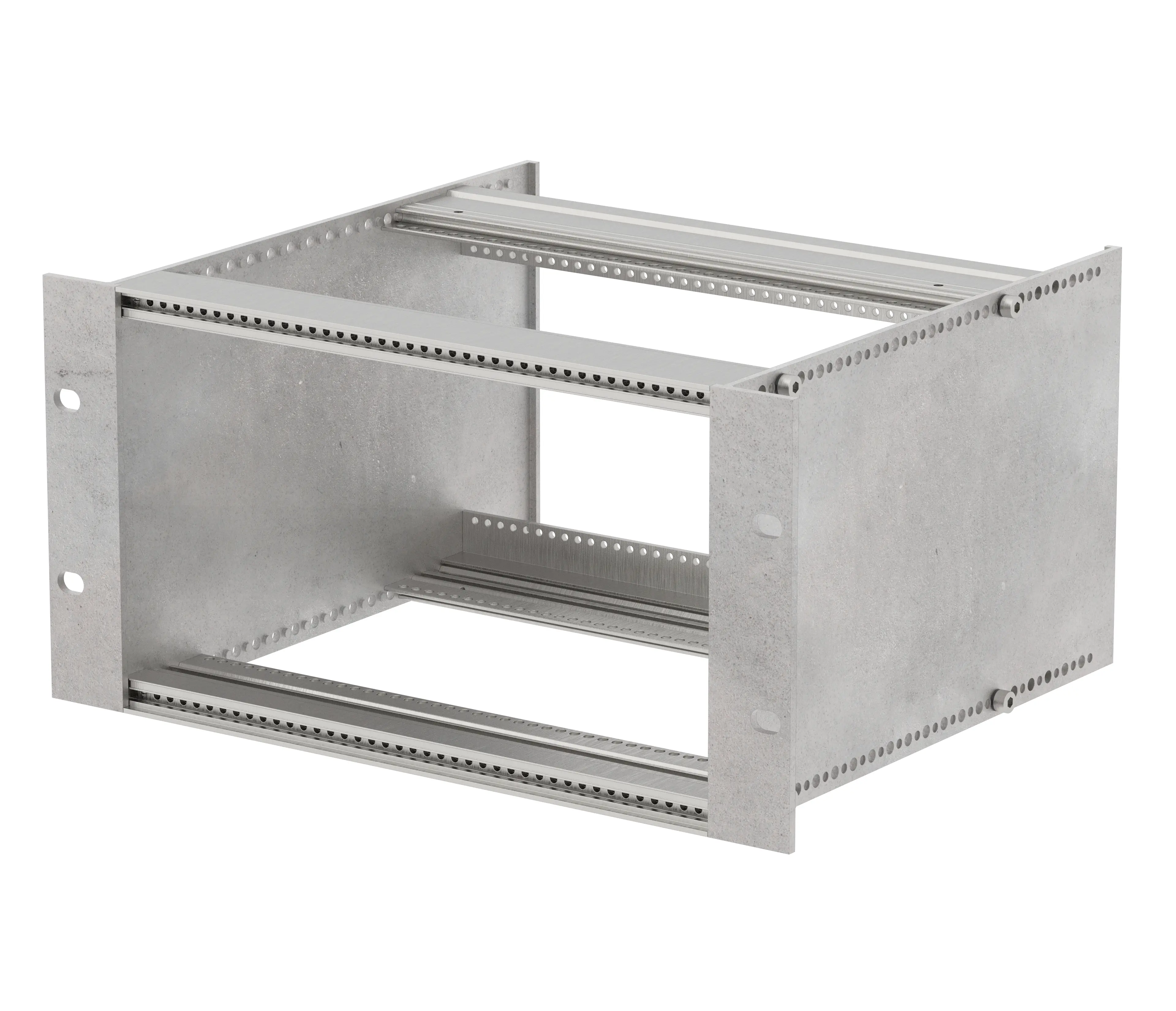

Interzoll | Subrack for high mechanical load with profile side wall 3 U for connectors (.12) tested acc. to Federal Railway standard BN 411 002
Product drawing
Enclosure concept
Characteristics
Profile Al Mg: Si 0.5; for details see Technical Information

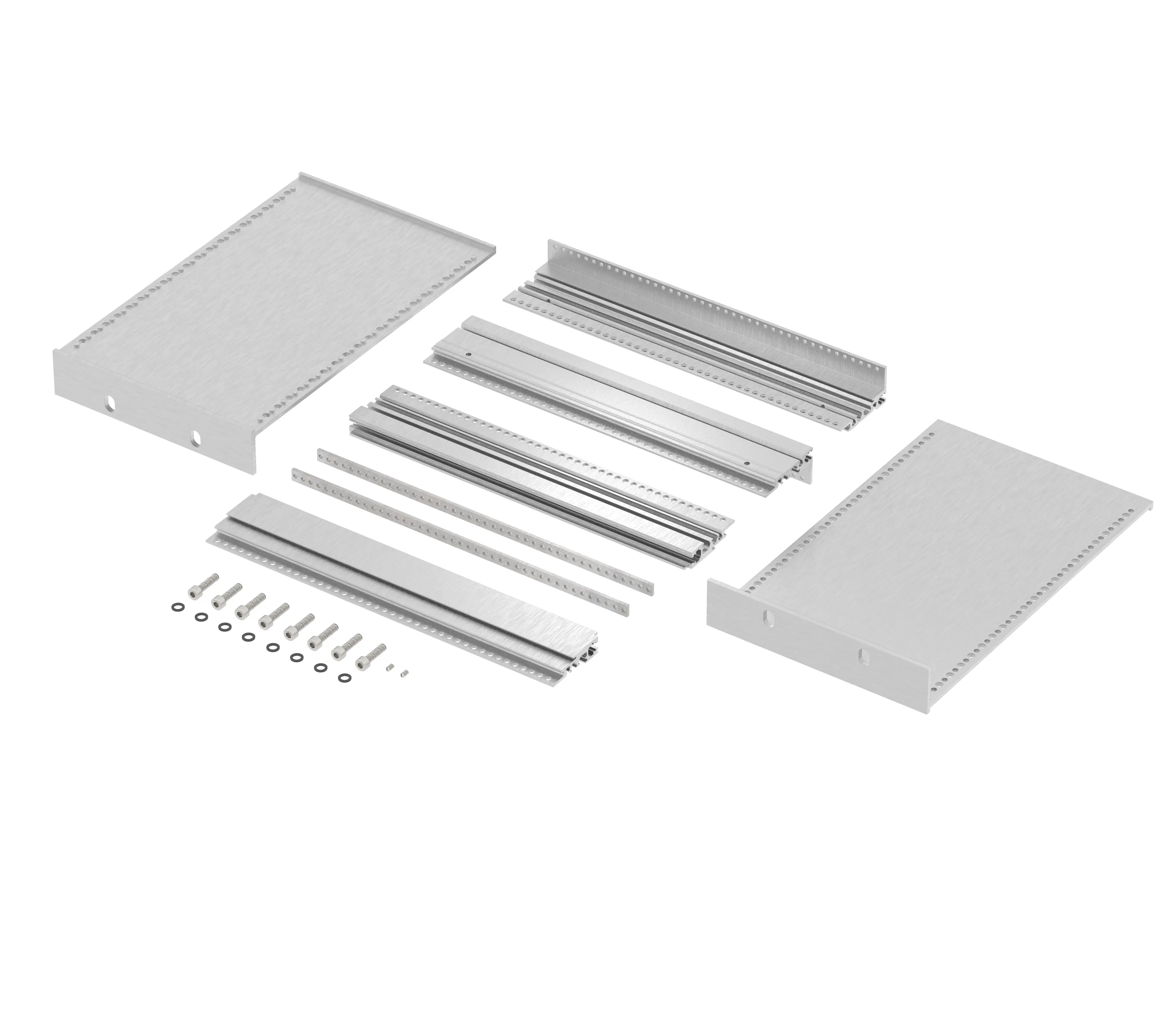

1) 2 side panels with integrated flange (BSW 22300)
2) 2 front profiles (PF 000..)
3) 2 rear profiles (PRK 000.. .12)
4) 2 tapped strips for front panel fixing (GS 000.. I)
5) 8 screws M4 x 20 (BFS 0600)
6) 8 securing washers (BFS 0700)
7) 2 M2.5x5 (GSE-5) slotted set screws
Tested to Federal Railway standard BN 411 002. Approved for all electronic equipment on rail and bus vehicles. Approval test IABG-Ottobrunn for type BGT 22380.Pi/12-BN.
Subrack with handle on request
The dimensions are approximate values. The exact values can be found in the respective product drawing.
