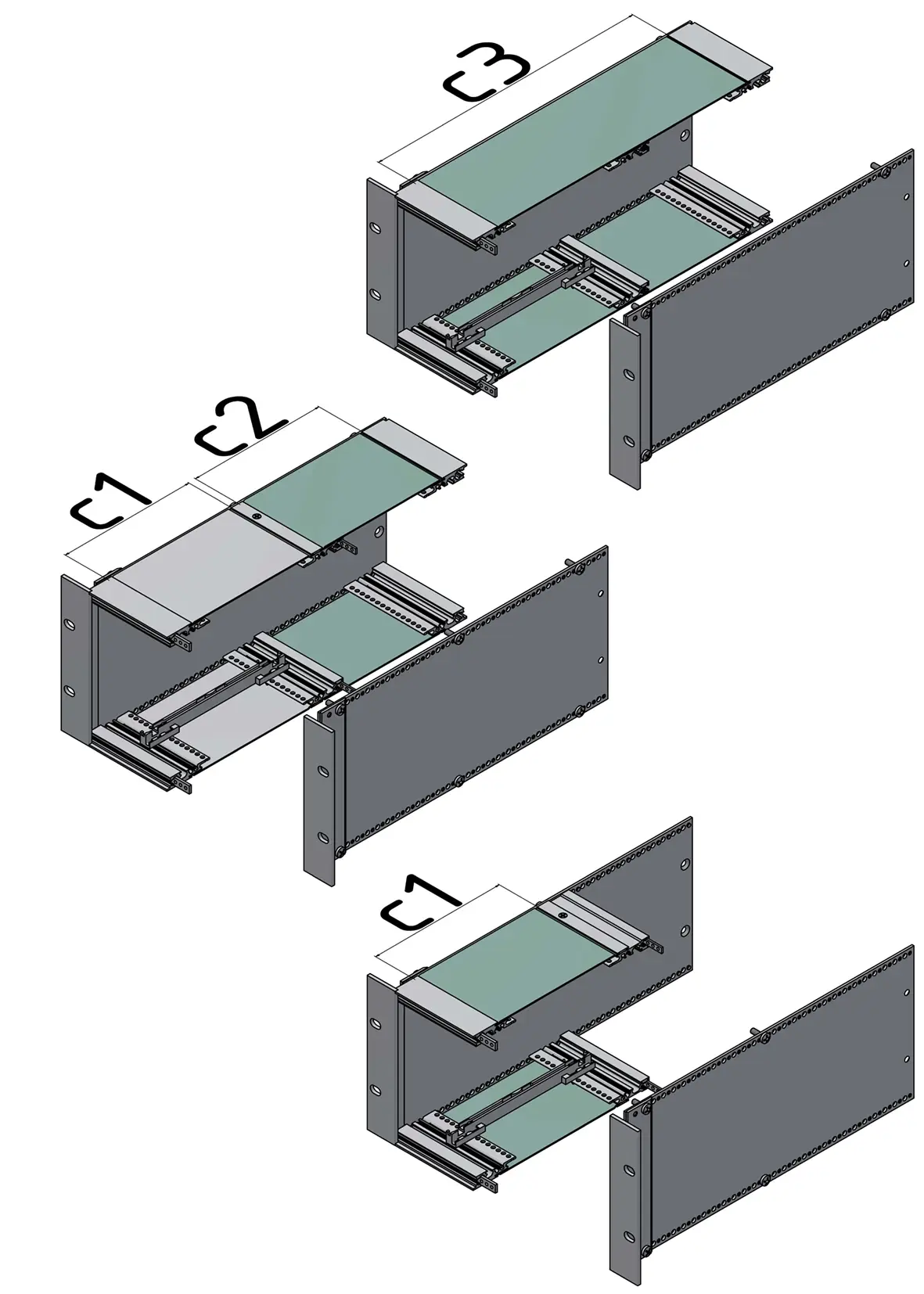

Plain cover plates, galvanised lacquered sheet steel, light grey
| Model | Order no. | c1 | c2 | c3 | TE | Article Colour |
| ADG 06042 | 54960420 | - | 63 | - | 42 | RAL 7035 |
| ADG 06063 | 54960630 | - | 63 | - | 63 | RAL 7035 |
| ADG 06084 | 54960840 | - | 63 | - | 84 | RAL 7035 |
| ADG 12042 | 54912420 | 123 | 123 | - | 42 | RAL 7035 |
| ADG 12063 | 54912630 | 123 | 123 | - | 63 | RAL 7035 |
| ADG 12084 | 54912840 | 123 | 123 | - | 84 | RAL 7035 |
| ADG 13042 | 54913420 | - | - | 133 | 42 | RAL 7035 |
| ADG 13063 | 54913630 | - | - | 133 | 63 | -- |
| ADG 13084 | 54913840 | - | - | 133 | 84 | RAL 7035 |
| ADG 18042 | 54918420 | 183 | 183 | - | 42 | RAL 7035 |
| ADG 18063 | 54918630 | 183 | 183 | - | 63 | RAL 7035 |
| ADG 18084 | 54918840 | 183 | 183 | - | 84 | RAL 7035 |
| ADG 19042 | 54919420 | - | - | 193 | 42 | RAL 7035 |
| ADG 19063 | 54919630 | - | - | 193 | 63 | RAL 7035 |
| ADG 19084 | 54919840 | - | - | 193 | 84 | RAL 7035 |
| ADG 25042 | 54925420 | - | - | 253 | 42 | RAL 7035 |
| ADG 25063 | 54925630 | - | - | 253 | 63 | RAL 7035 |
| ADG 25084 | 54925840 | - | - | 253 | 84 | RAL 7035 |
| ADG 31042 | 54931420 | - | - | 313 | 42 | RAL 7035 |
| ADG 31063 | 54931630 | - | - | 313 | 63 | RAL 7035 |
| ADG 31084 | 54931840 | - | - | 313 | 84 | RAL 7035 |
Notes:
On the BGT 22..., the ADG is inserted from the side. Clamp profile set EPS is required for mounting on all other subracks.
On the BGT 22..., the ADG is inserted from the side. Clamp profile set EPS is required for mounting on all other subracks.
Scope of delivery:
1 cover plate
1 cover plate

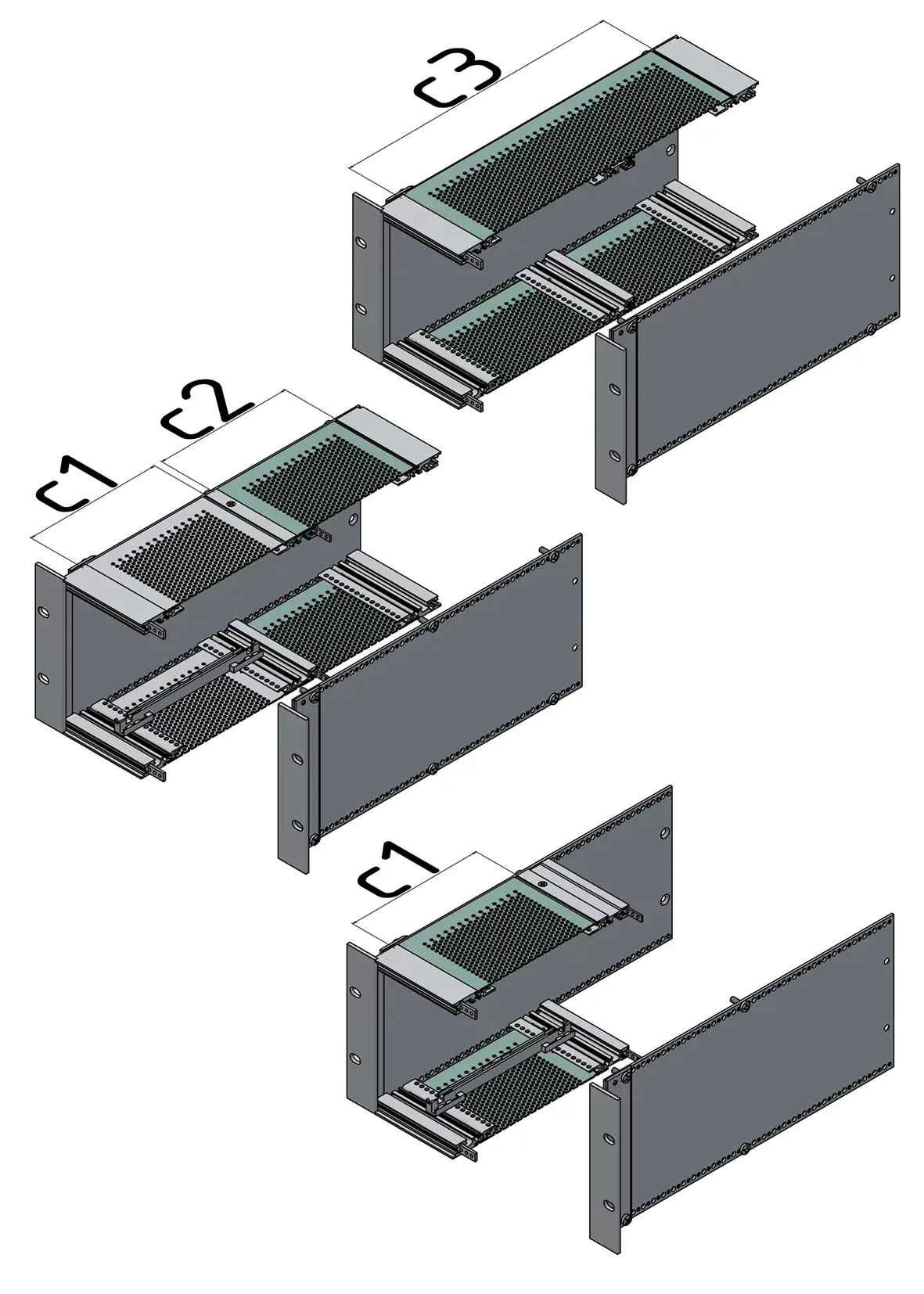

Perforated cover plates, galvanised lacquered sheet steel, visible surface light grey lacquered, hole dia. 2,5 mm
| Model | Order no. | c1 | c2 | c3 | TE | Article Colour |
| ADG 06042-L | 54960421 | - | 63 | - | 42 | RAL 7035 |
| ADG 06063-L | 54960631 | - | 63 | - | 63 | RAL 7035 |
| ADG 06084-L | 54960841 | - | 63 | - | 84 | RAL 7035 |
| ADG 12042-L | 54912421 | 123 | 123 | - | 42 | RAL 7035 |
| ADG 12063-L | 54912631 | 123 | 123 | - | 63 | RAL 7035 |
| ADG 12084-L | 54912841 | 123 | 123 | - | 84 | RAL 7035 |
| ADG 13042-L | 54913421 | - | - | 133 | 42 | RAL 7035 |
| ADG 13063-L | 54913631 | - | - | 133 | 63 | RAL 7035 |
| ADG 13084-L | 54913841 | - | - | 133 | 84 | RAL 7035 |
| ADG 18042-L | 54918421 | 183 | - | - | 42 | RAL 7035 |
| ADG 18063-L | 54918631 | 183 | - | - | 63 | RAL 7035 |
| ADG 18084-L | 54918841 | 183 | 183 | - | 84 | RAL 7035 |
| ADG 19042-L | 54919421 | - | - | 193 | 42 | RAL 7035 |
| ADG 19063-L | 54919631 | - | - | 193 | 63 | RAL 7035 |
| ADG 19084-L | 54919841 | - | - | 193 | 84 | RAL 7035 |
| ADG 25042-L | 54925421 | - | - | 253 | 42 | RAL 7035 |
| ADG 25063-L | 54925631 | - | - | 253 | 63 | RAL 7035 |
| ADG 25084-L | 54925841 | - | - | 253 | 84 | RAL 7035 |
| ADG 31042-L | 54931421 | - | - | 313 | 42 | RAL 7035 |
| ADG 31063-L | 54931631 | - | - | 313 | 63 | RAL 7035 |
| ADG 31084-L | 54931841 | - | - | 313 | 84 | RAL 7035 |
Notes:
On the BGT 22..., the ADG is inserted from the side. Clamp profile set EPS is required for mounting on all other subracks.
On the BGT 22..., the ADG is inserted from the side. Clamp profile set EPS is required for mounting on all other subracks.
Scope of delivery:
1 cover plate
1 cover plate

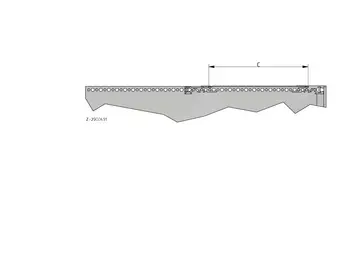

Clamp profile sets, natural-coloured anodised aluminium, for screwing on of the cover plates
Notes:
Hinweis: The EPS and EPS-I clamp profile sets are required for mounting of the cover plates (ADG...). This allows removal of the top covers without disassembly of the BGT side wall.
Exception: If a subrack with a profile side wall is used, the clamp profile is integrated with the bus or rear profile.
Hinweis: The EPS and EPS-I clamp profile sets are required for mounting of the cover plates (ADG...). This allows removal of the top covers without disassembly of the BGT side wall.
Exception: If a subrack with a profile side wall is used, the clamp profile is integrated with the bus or rear profile.
Scope of delivery:
2 clamp profiles including mounting material (BFS 0200)
2 clamp profiles including mounting material (BFS 0200)
Clamp profile sets-l, natural-coloured anodised aluminium, for screwing on 2 cover plates behind each other
| Model | Order no. | TE |
| EPS 00042-I | 54002421 | 42 |
| EPS 00063-I | 54002631 | 63 |
| EPS 00084-I | 54002841 | 84 |
Notes:
Front profiles for rear ADG mounting and cover.
The EPS and EPS-I clamp profile sets are required for mounting of the cover plates (ADG...). This allows removal of the top covers without disassembly of the BGT side wall.
Exception: If a subrack with a profile side wall is used, the clamp profile is integrated with the bus or rear profile.
Front profiles for rear ADG mounting and cover.
The EPS and EPS-I clamp profile sets are required for mounting of the cover plates (ADG...). This allows removal of the top covers without disassembly of the BGT side wall.
Exception: If a subrack with a profile side wall is used, the clamp profile is integrated with the bus or rear profile.
Scope of delivery:
2 clamp profiles, 2 front profiles, mounting material (BFS 0200, BFS 0400)
2 clamp profiles, 2 front profiles, mounting material (BFS 0200, BFS 0400)
