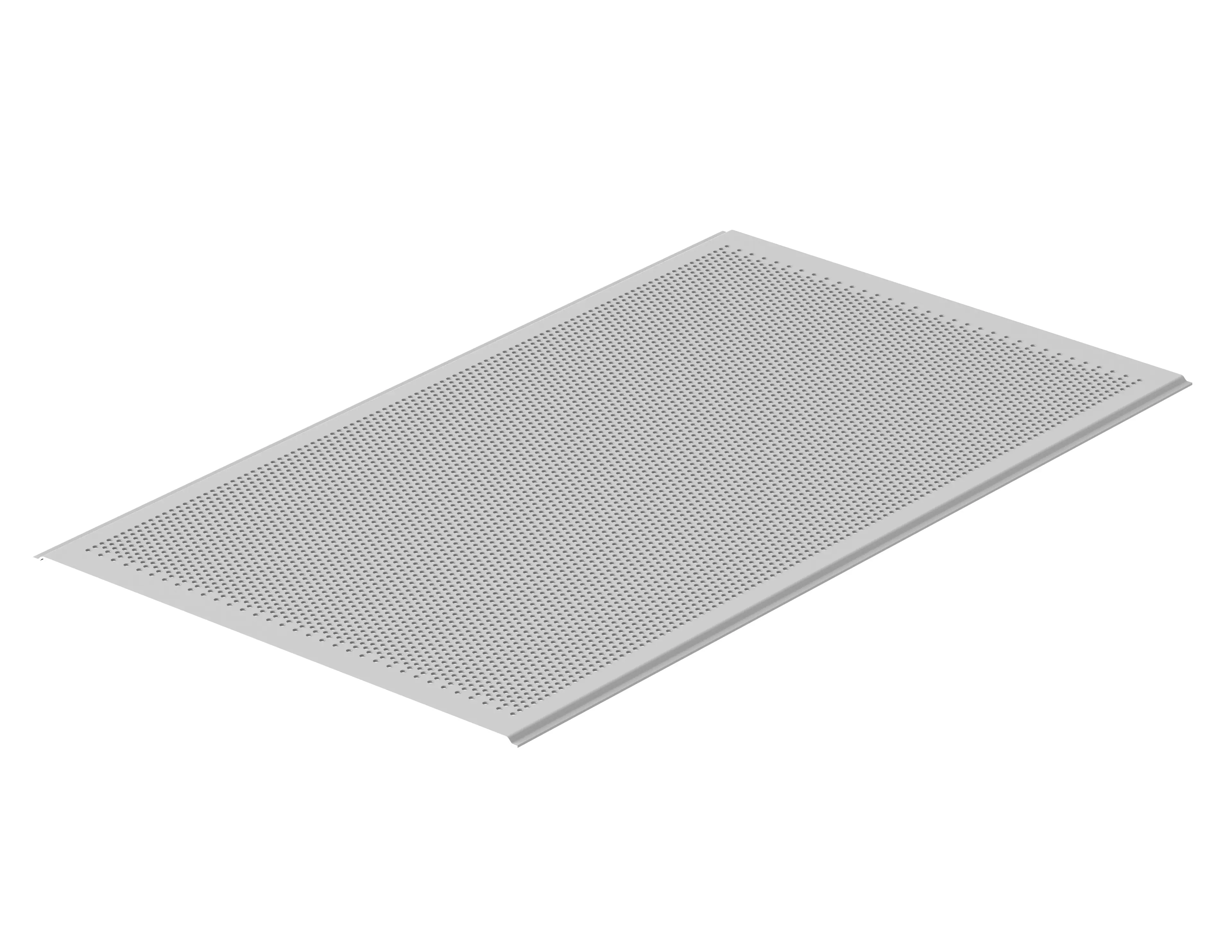

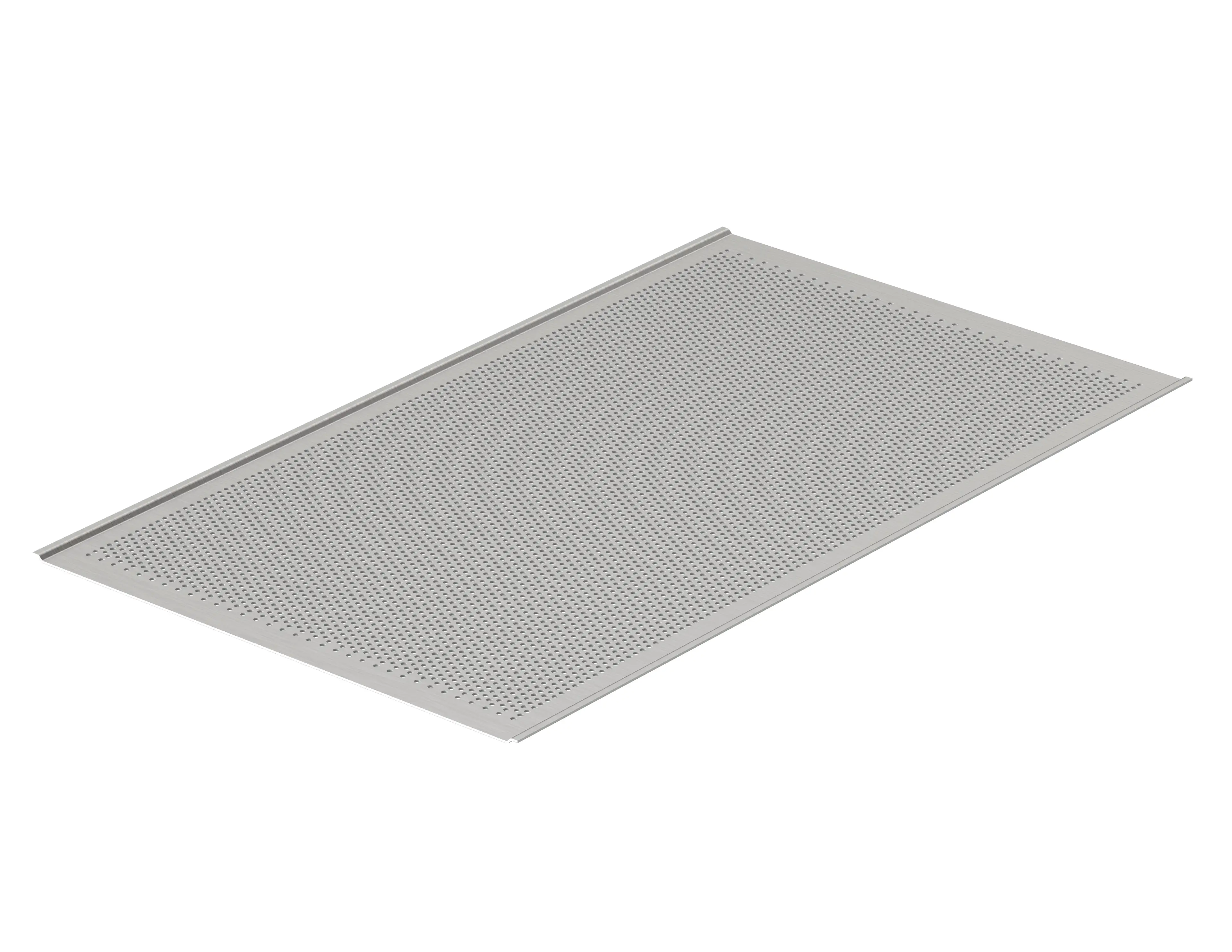

Interzoll | Perforated cover plates, galvanised lacquered sheet steel, visible surface light grey lacquered, hole dia. 2,5 mm
ADG 25084-L
Order no.: 54925841
ADG 25084-L
Order no.: 54925841
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
HP
84
Colour of enclosure group
Light grey
Enclosure Material
Profile Al Mg: Si 0.5; for details see Technical Information
Scope of delivery
1 cover plate
Note
On the BGT 22..., the ADG is inserted from the side. Clamp profile set EPS is required for mounting on all other subracks.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
Product drawing in PDF format:
54925841 ADG-25084-L.pdf
(142.0 KB)
Product drawing in DXF format:
54925841 ADG-25084-L.dxf
(743.9 KB)
- 19 Inch Standard Overview EN.pdf(4.6 MB)
- interzoll en.pdf(4.1 MB)
