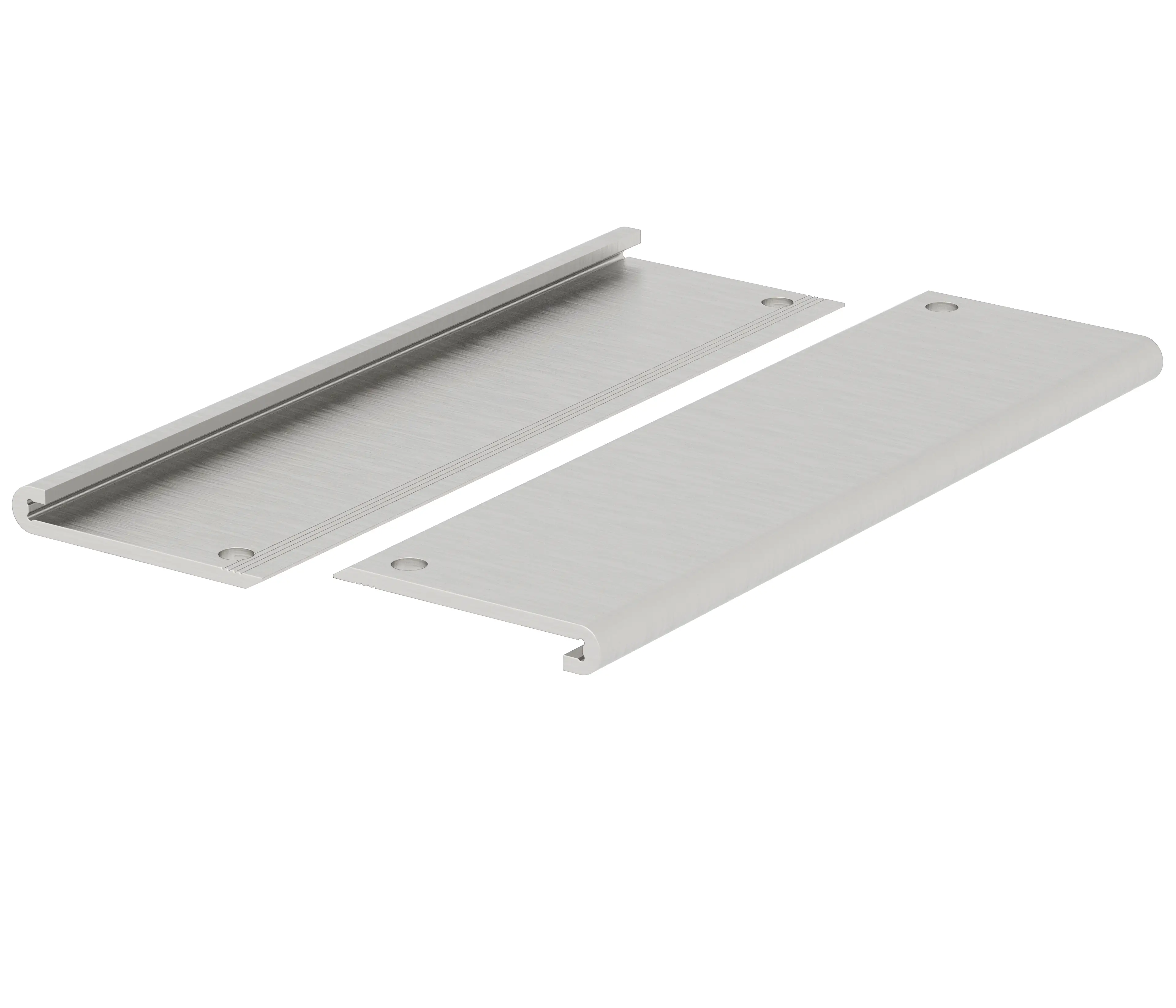

Interzoll | End profile on rear, natural-coloured anodised aluminium, for subrack side panels
RAP 00300
Order no.: 54000300
RAP 00300
Order no.: 54000300
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
U
3
Enclosure Material
Profile Al Mg: Si 0.5; for details see Technical Information
Scope of delivery
2 end profiles
Note
Additional sizes on request.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
54000300 RAP-00300-G.dxf
(260.9 KB)
Product drawing in PDF format:
54000300 RAP-00300.pdf
(2.9 MB)
Product drawing in DXF format:
54000300 RAP-00300.dxf
(335.7 KB)
- 19 Inch Standard Overview EN.pdf(4.6 MB)
- interzoll en.pdf(4.1 MB)
