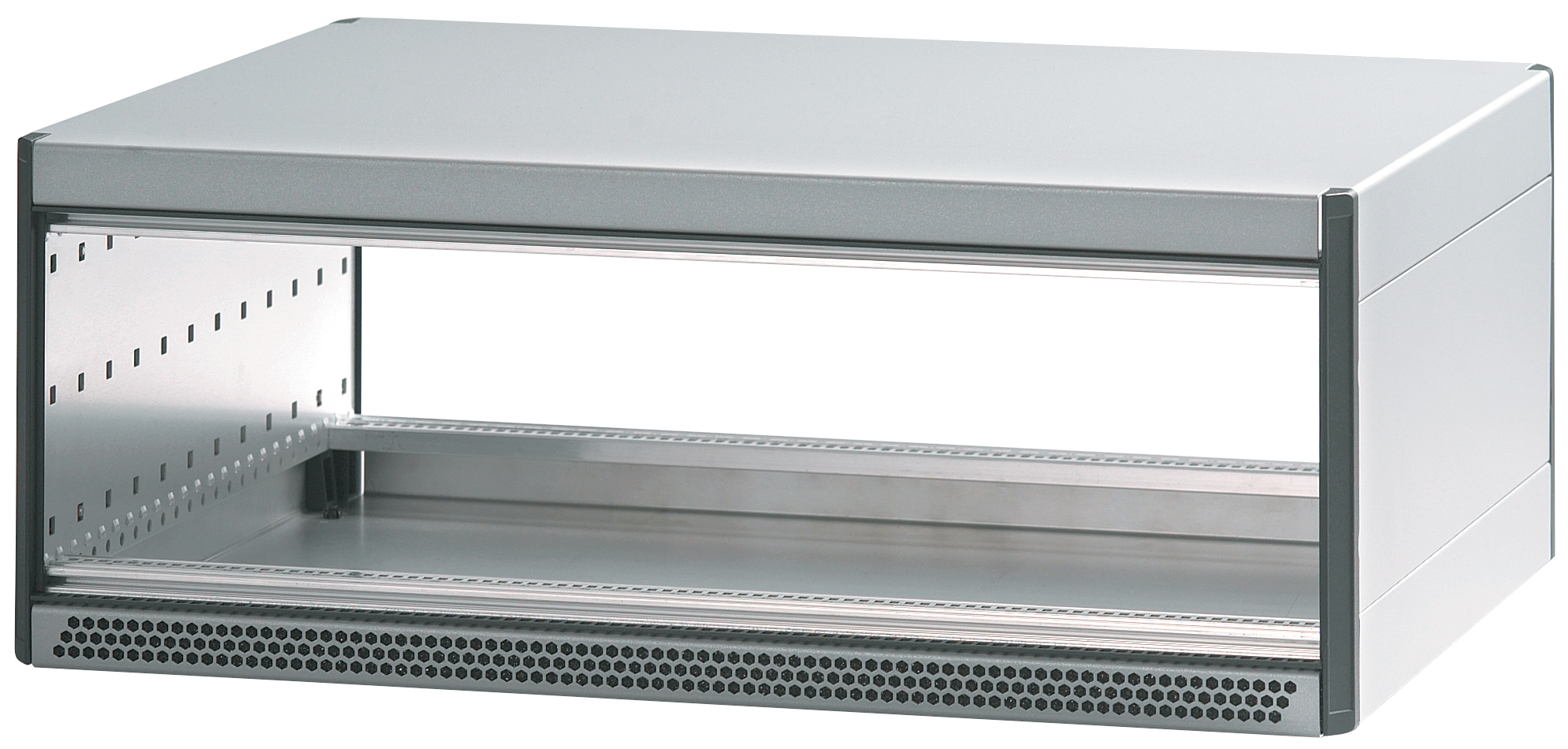

Internorm Stil | Enclosures with integrated ventilation, 3 U, each above and below with additional 0.5 U for the ventilation sections
Product drawing
Enclosure concept
Characteristics
Profiles: Al Mg Si 0.5, anodised. Covers: diecast aluminium. Front handles/flanges: diecast aluminium. Side panels, cover and side plates: passivated aluminium.
1) 2 side panels (Al, white chromated)
2) 4 front profiles, suitable for ejector handle acc. to IEEE 1101.10 (aluminium, powder-coated visible surfaces, anthracite grey, similar to RAL 7016)
3) 4 trims (diecast zinc, powder-coated, anthracite grey, similar to RAL 7016
2 lateral cover plates with earthing connection (aluminium, white chromated, powder-coated visible surfaces, white aluminium, similar to RAL 9006)
5) 2 side panel coverings (aluminium, white chromated, powder-coated visible surfaces, white aluminium, similar to RAL 9006)
6) 4 enclosure feet (PC, black with anti-slip protection)
7) 2 filter strips
8) 4 tapped strips (GS/M)
9) 4 M2.5 (GSE/M) slotted set screws
10) 1 set of BFS/INS 0100, BFS/INS 0200, BFS/INS 0300 fixing material (not shown)
Installation acc. to IEC 60297-3-101
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
- 19 Inch Standard Overview EN.pdf(4.6 MB)
- internorm-stil en.pdf(8.5 MB)
- FP-M-HE EMV-Feder EMC Springs 86999914.pdf(141.4 KB)
- FP-M-TE EMV-Feder EMC Springs 86999916.pdf(104.0 KB)
- Internorm-Stil INS Erdungsanweisung Grounding 86999901.pdf(1.0 MB)
- Internorm-Stil INS Gehaeusemontage Enclosure Assembly 85999902.pdf(1.2 MB)
- Internorm-Stil INS Modulschienenausbau Modular Rail Extension 86999903.pdf(439.1 KB)
- Internorm-Stil INS Seitenwand-Druckverschluss Side Panel Spring Clip 86999906.pdf(410.8 KB)
- Internorm-Stil INS Tower-Gehaeuse Tower Enclosure 85999903.pdf(1.1 MB)
- KE-M Kartenerdung Card Earthing 86999919.pdf(227.1 KB)
Matching accessories
EMC springs for horizontal shielding between cover plates and side panels, stainless steel
EMC springs, stainless steel, for the connection between the front panel / backplane and profile
Earthing set for earthing connection of the enclosure parts, 1.5 mm Cu lead, PVC sheathing
Lateral trims for AGR tip-up handle
Partition, self-adhesive PE foam for sealing between rear profile and baseplate
Plug-in stack adapter, anthracite grey (only for use with the AF1/INS tip-up foot)
Strap handles made of plastic-coated spring steel, anthracite grey, incl. lateral trim
Support profiles for contacting between side panel and plug-in unit, uncoated aluminium
Tip-up feet, collapsible, plastic, UL 94 V0, anthracite grey, non-slip
