Internorm Stil | Shorter fitting screws for profiles (if a card guide is screwed to slot 1)
BFS/INS 0200
Order no.: 86050200

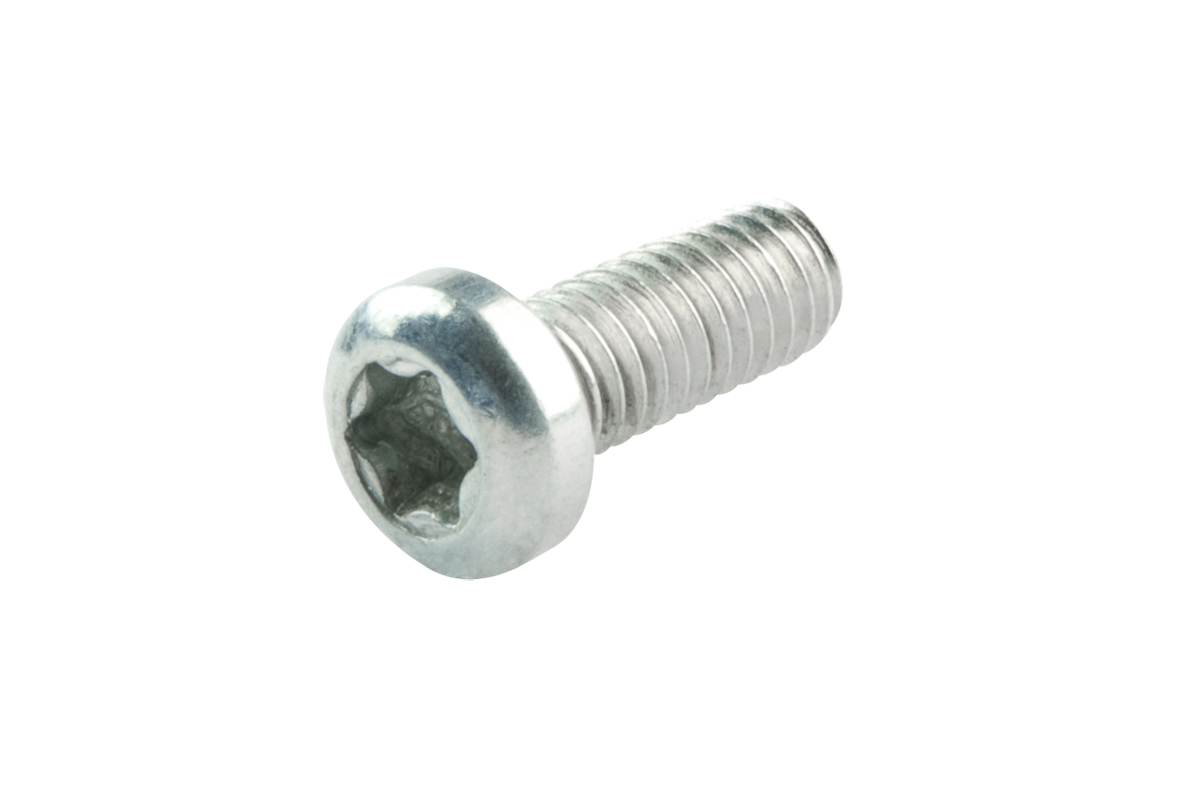

SHR Z M 4x10-SO, toothed, countersink cone, galvanised steel, torx 20
BFS/INS 0200
Order no.: 86050200
SHR Z M 4x10-SO, toothed, countersink cone, galvanised steel, torx 20
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
--
Enclosure Material
Profiles: Al Mg Si 0.5, anodised. Covers: diecast aluminium. Front handles/flanges: diecast aluminium. Side panels, cover and side plates: passivated aluminium.
Scope of delivery
20 screws
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
Product drawing in PDF format:
86050200 BFS-INS-0200.pdf
(40.6 KB)
Product drawing in DXF format:
86050200 BFS-INS-0200.dxf
(505.9 KB)
