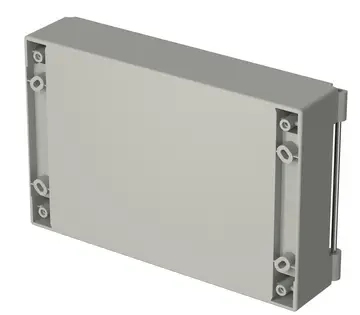

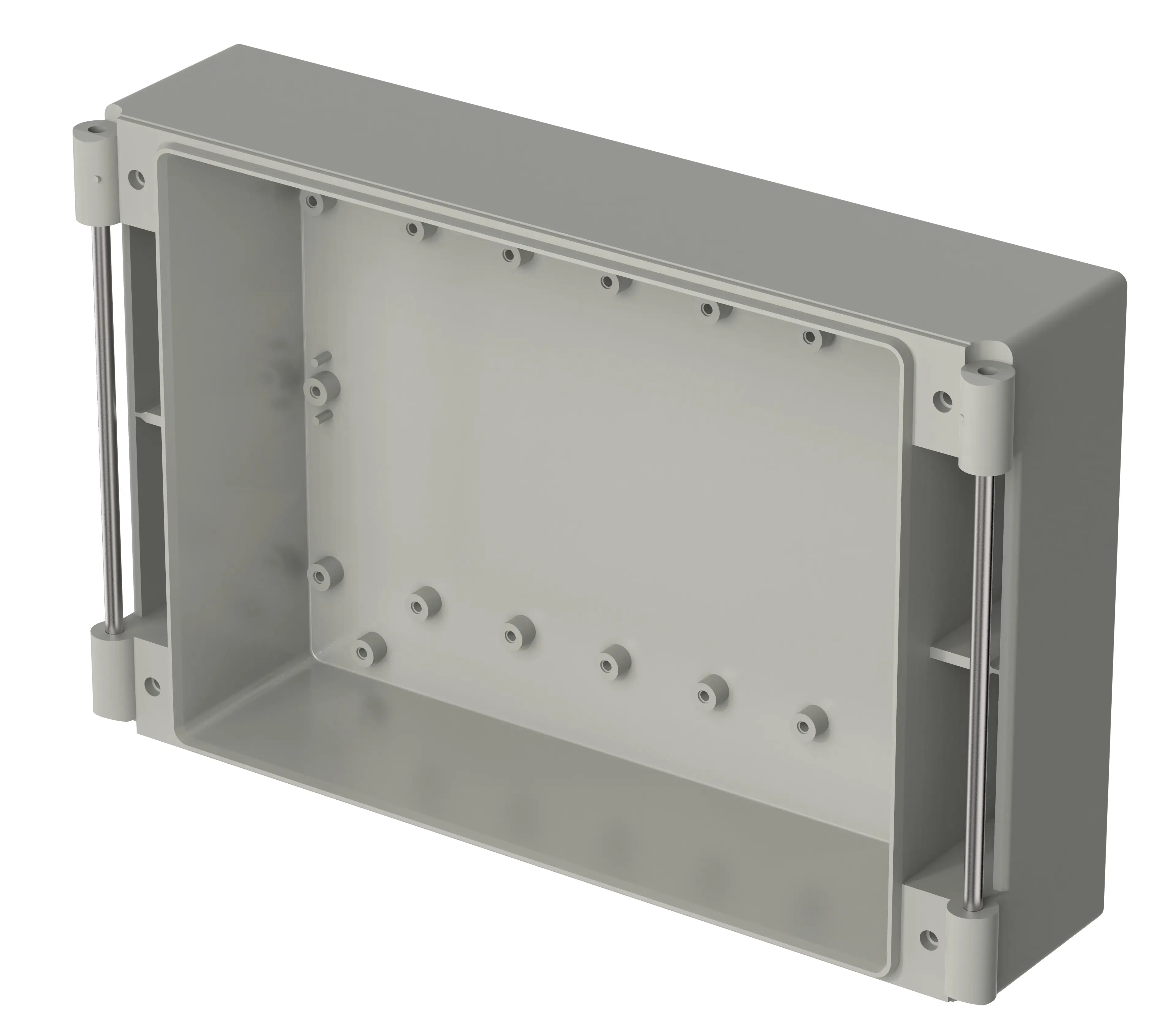

CombiCard 5000-7000 | Rear lid

RD 6000

Order no.: 79000200

RD 6000

Order no.: 79000200

Add to the shopping basket

Show the shopping basketDownload print view

Please select:Product data sheet with accessories (approx. 2-5 pages)Print view without accessories (approx. 1 page)

* = Available on request.

Product drawing

Enclosure concept

Characteristics

226.5 x 146.7 x 50 mm

Agate grey, similar to RAL 7038

IP 66

ABS; PC (only FD…G), seal made of CR; for details see Technical Information

Operating temperature: -25/70° C

Rear lid

A fixing kit BS 5670 79005500 is also required for fitting front panels FP..000 I in the rear lid. This elevates the front panel in the rear lid.

The dimensions are approximate values. The exact values can be found in the respective product drawing.

Important!

To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.

In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.

» Additional information

Technical documentation / Downloads

3D product data in STEP format:

Product drawing in PDF format:

79000200 RD-6000.pdf (55.1 KB)

Product drawing in DXF format:

79000200 RD-6000.dxf (627.5 KB)

I have read and agreed to this information.

ABS MMIA Polyman

ABS Elix H605

combicard-5000-7000 en.pdf(1.4 MB)

Matching accessories

19" subracks acc. to DIN EN 60297-3-101, aluminium

53216000

BGT 6000.PI

19" subracks acc. to DIN EN 60297-3-101, aluminium, with cover plates, closed

53216100

BGT 6000.PI-AD

Basic element 0.5 (51.51 mm deep)

79001100

BC 6000 -0,5

Basic element 0.5 (51.51 mm deep) with air vents

79001400*

BC 6000 L-0,5

Basic element 1 (88.25 mm deep)

79001700

BC 6000 -1

Basic element 1 (88.25 mm deep) with air vents

79002000

BC 6000 L-1

Basic element 1.5 (139.76 mm deep)

79002300

BC 6000 -1,5

Basic element 1.5 (139.76 mm deep) with air vents

79002600

BC 6000 L-1,5

Basic element for control panel mounting

79001710

BC 6000 NG

Basic element for control panel mounting, with air vents

79002010*

BC 6000 NG-L

Closed front frame for accommodating membrane keypads, screw-on

79003800

FR 6000

Cover for hinged quick-release fastener, ABS

79005300

VA 5670

For FD...(G)

Cylinder catch for FD fronts

21008310

SHLO-302

Cylinder lock

DIN rails

22151801*

TS 156000.1

Top hat rail DIN EN 60715 TH 15 for CC 6000

22321801*

TS 326000.1

Top hat rail DIN EN 60715 G 32 for CC 6000

22351801*

TS 356000.1

Top hat rail DIN EN 60715 TH 35 for CC 6000

Front lid for accommodating membrane keypads

79002900

FD 6000

Front lid, crystal-clear

79003200

FD 6000 G

Front panels for FO front, 2 mm, natural-coloured anodised aluminium

79004400

FP 6000 AI

Handle

79606020

HS 6000

Hinged quick-release fastener for retrofitting of FO and FR fronts, ABS

79005400

SV 5670

For FO/FR

Internal front panels for basic elements and rear lid, 2 mm, natural-coloured anodised aluminium

79004100

FP 6000 I

79005500

BS 5670

Assembly kit for FP ... I in RD

Lock bolt for basic elements for blocking locking function, polyamide

79004900

SR 5670 -0,5

For BC...(L)-0,5

79005010

SR 5670-1

For BC...(L)-1

79005100

SR 5670 -1,5

For BC...(L)-1,5

Mounting panel for rear lid RD.. (K,BK) and basic elements, laminated paper

80060000

M 6000

Open front frame with integrated seal, screw-on

79003500

FO 6000

Wall brackets for rear lid, ABS

79004600

WL 5670

For RD...
