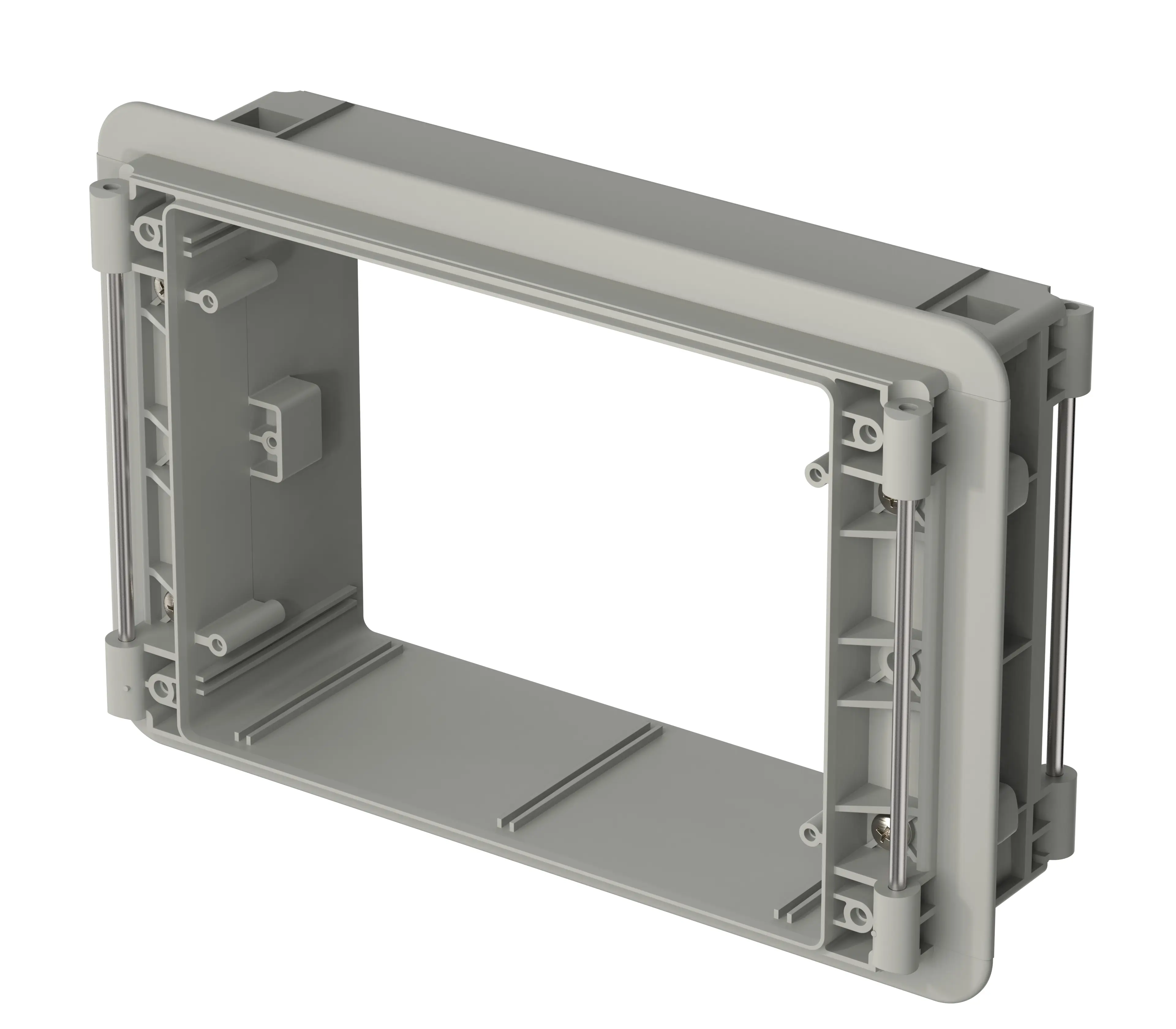

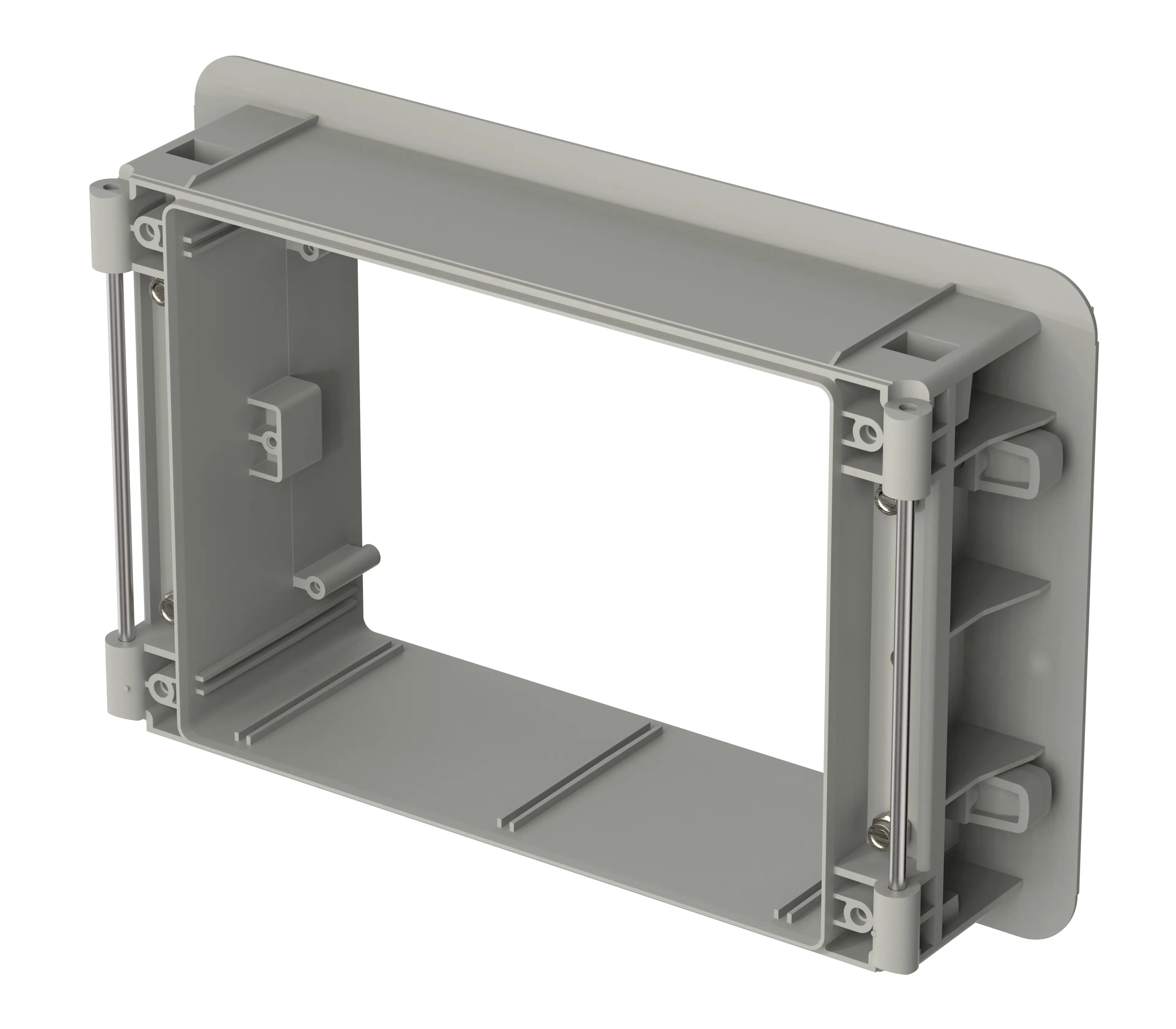

CombiCard 5000-7000 | Basic element for control panel mounting
BC 6000 NG
Order no.: 79001710
BC 6000 NG
Order no.: 79001710
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
254.5 x 169.7 x 68.01 mm
U
3
HP
30
Colour of enclosure group
Light grey, similar to RAL 7035
Protection class
IP
66
NEMA
3
Enclosure Material
ABS; PC (only FD…G), seal made of CR; for details see Technical Information
Operating temperature: -25/70° C
Scope of delivery
Base element with mounted assembly kit for control panel mounting
Note
When these base elements are used, front lids must be used on both sides to close the enclosure. Tightening torque for the fixing elements = 80 Ncm
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
79001710 BC-6000-NG.pdf
(72.0 KB)
Product drawing in DXF format:
79001710 BC-6000-NG.dxf
(840.4 KB)
- combicard-5000-7000 en.pdf(1.4 MB)
