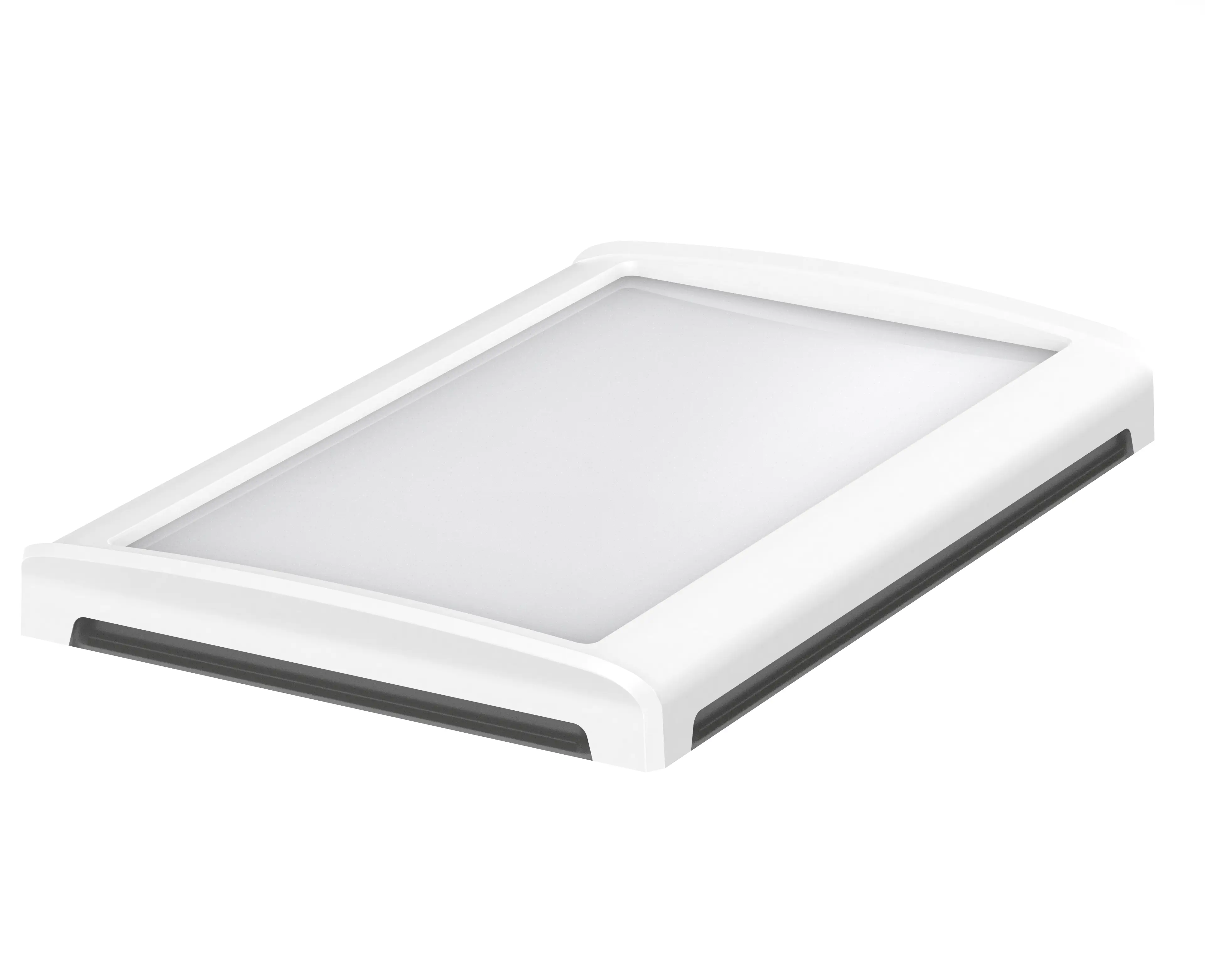

BoVersa | Enclosure lid, plastic with lowered surface, translucent
BOV 2114_ FO 9003 D LL
Order no.: 48336431
BOV 2114_ FO 9003 D LL
Order no.: 48336431
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
210 x 140 x 24 mm
Colour of enclosure group
Weiß, ähnlich RAL 9003; Weiß transluzent
Protection class
IP
66
,
68
– IP68: 1,2m (2 hours)
NEMA
3
Impact protection
IK 08
Enclosure Material
Plastic parts PC UL 94 V-0 (material is flame-retardant, self-extinguishing and suitable for outdoor use; f1 listing in accordance with UL 746 C)
Aluminium parts GD Al Si 12
Seal PU foamed
Materials in accordance with requirement set R1 / R7 according to DIN EN 45545-2 Hazard Level HL3
For details, see Technical Information
Operating temperature: -25/110° C
Scope of delivery
Function lid, design cover
Note
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
Product drawing in PDF format:
Product drawing in DXF format:
PC Lexan945U
(Enclosure)
EN-45545 Lexan-945U Certificate R22-HL3
(Railway certificate – enclosures)
PC SITRALON FR-07-UV
(Translucent lid)
Fermapor K31-A-9841-7 B-5 35-10 DE
(Seal)
- BoVersa web Doppelseite-EN.pdf(458.1 KB)
- Prospekt BoVersa EN.pdf(3.3 MB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- (UV-329) 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (CAS-Nr.: 3147-75-9)
Matching accessories
Mounting panels
