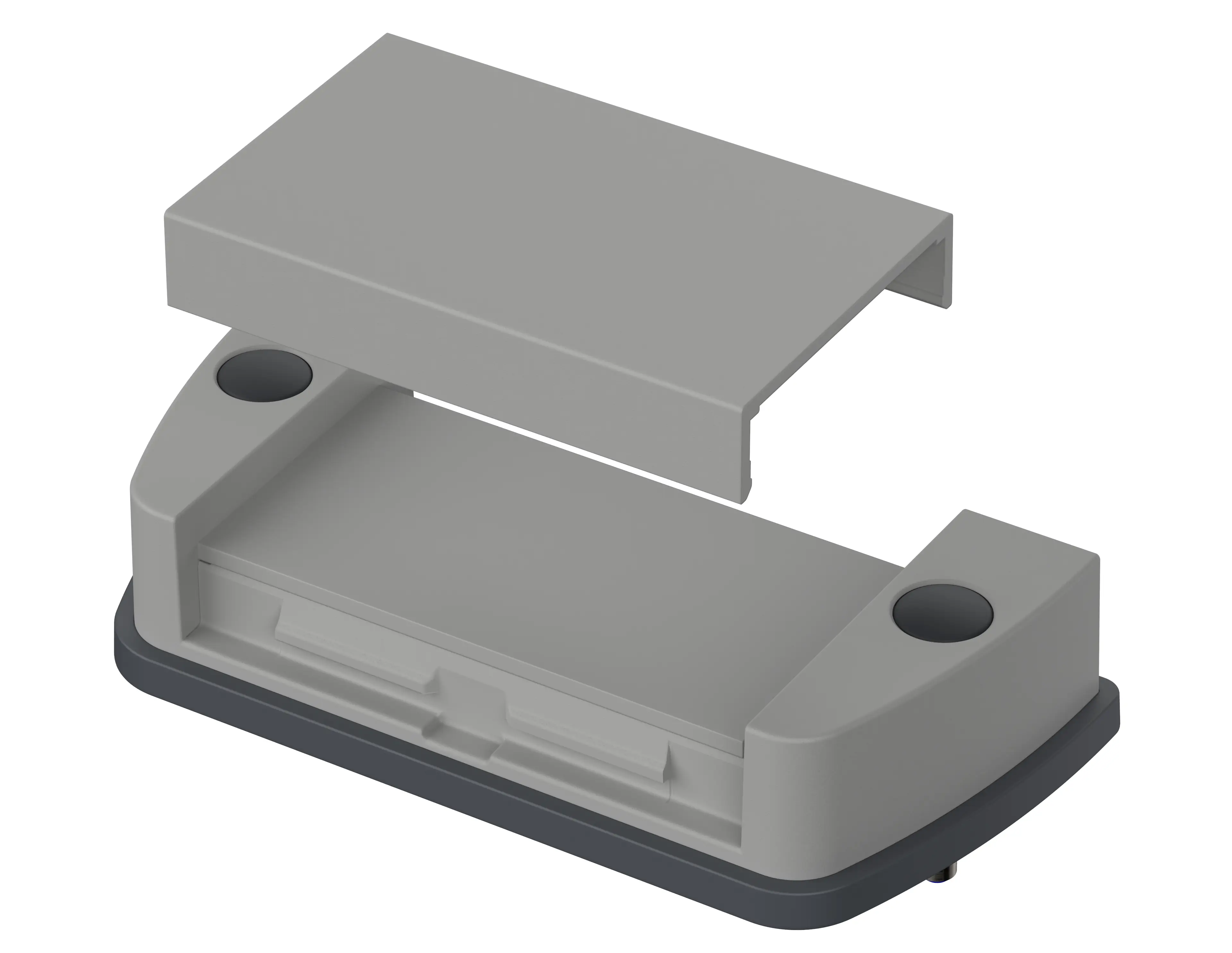

Alustyle | Mounting lid with removable aluminium cap
ASM 830 AL-9006
Order no.: 94411400
For ASP... 830
ASM 830 AL-9006
Order no.: 94411400
For ASP... 830
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.

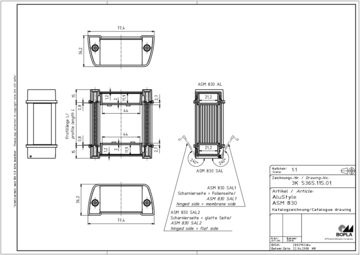

Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
Silver, similar to RAL 9006
Protection class
IP
65
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery

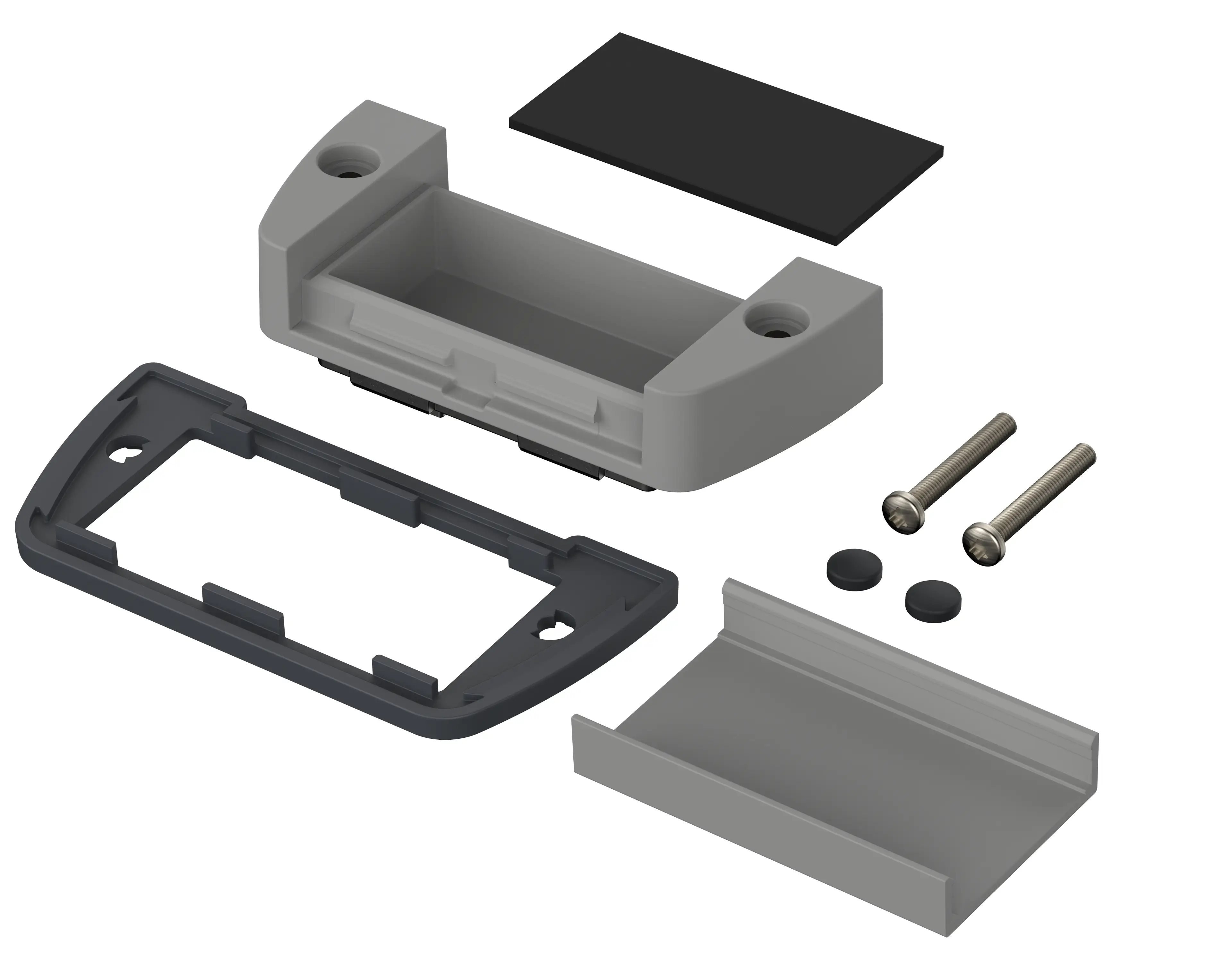

Lid including dark grey seal, screws, aluminium cap, cap seal, screws, graphite grey screw covers
Note
max. achievable ingress protection IP 65 (dependent on profile version)
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
94411400 ASM-830-AL-9006-G.dxf
(1,000.3 KB)
Product drawing in PDF format:
94411400 ASM-830-AL-9006.pdf
(148.2 KB)
Product drawing in DXF format:
94411400 ASM-830-AL-9006.dxf
(1,010.5 KB)
- 686 WPZ-Alustyle-ASP DE.pdf(179.3 KB)
- 686 WPZ-Alustyle-ASP EN.pdf(151.6 KB)
- 691 WPZ-Alustyle-ASPH DE.pdf(191.3 KB)
- 691 WPZ-Alustyle-ASPH EN.pdf(183.5 KB)
Beschichtung Brillux 5904
(Powder coating (RAL 7024))
Beschichtung Brillux 5911
(Powder coating (RAL 9006))
- alustyle en.pdf(1.5 MB)
