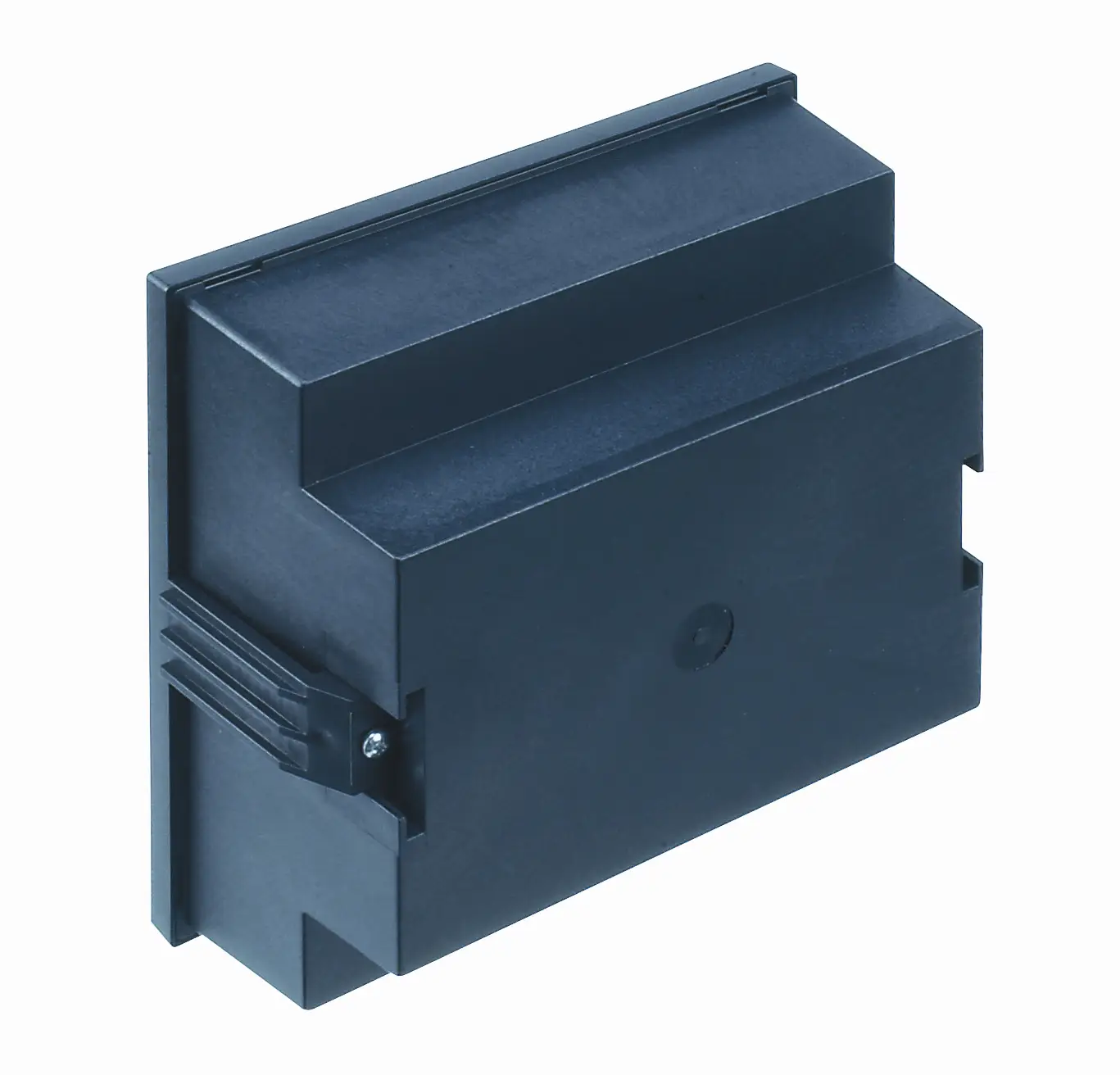

Uninorm | Control panel mounting enclosure
NGS 9806 GR
Order no.: 17980605*
With stepped rear panel
NGS 9806 GR
Order no.: 17980605*
With stepped rear panel
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
144 x 144 x 66 mm
Colour of enclosure group
Black
Protection class
IP
40
NEMA
1
Enclosure Material
Modified PPE+PS (SE1 GFN1); for details see Technical Information
Scope of delivery
NGS...: Enclosure, standard front frame, rear lid, screws
NGS 9806-GR: Enclosure, standard front frame, 2 clamps
Note
NGS-9806-GR design with stepped rear panel.
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
17980605 NGS-9806-GR-G.dxf
(890.9 KB)
Product drawing in PDF format:
17980605 NGS-9806-GR.pdf
(52.9 KB)
Product drawing in DXF format:
17980605 NGS-9806-GR.dxf
(701.6 KB)
- uninorm en.pdf(1.6 MB)
Matching accessories
Clear hood cover, flexible, up to IP 65 possible
Connecting piece for insertion of standard retaining clasps acc. to DIN 43835
Crystal-clear front door, snap-on, with knob, polycarbonate
Crystal-clear hood, snap-on, polycarbonate
Cylinder lock for front door NGS...TK
Front frame with screw covers, snaps firmly on
Front lid with continuous membrane keypad, snaps firmly on
Front panel seal (non-definable protection class)
Front panels, 1,5 mm, natural-coloured anodised aluminium
Plastic front panel, red translucent, 3 mm
Screw clamp for screw-fitting enclosure
Spring clamp for fixing enclosure
