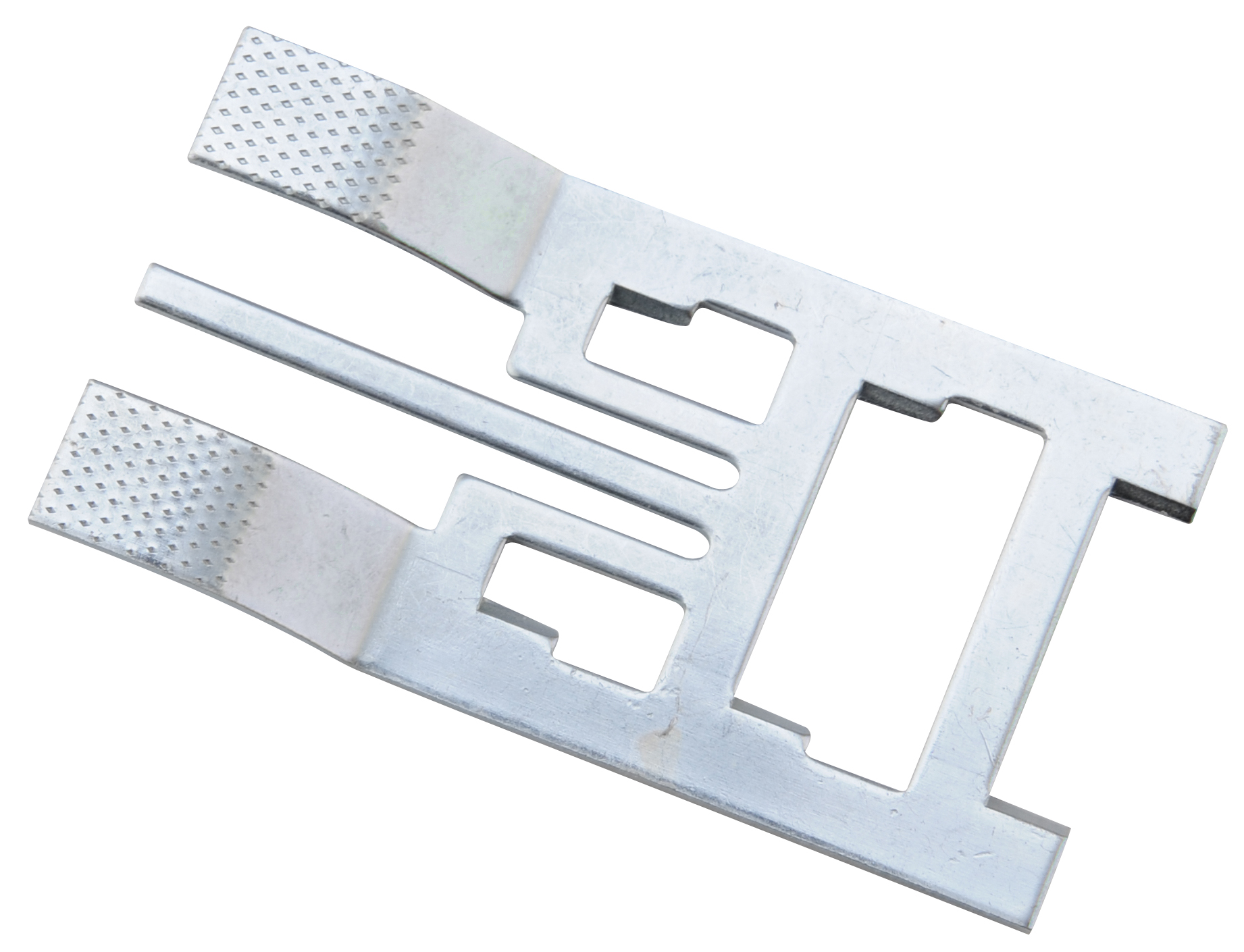

Uninorm | Spring clamp for fixing enclosure
NGS-NF
Order no.: 37005000
NGS-NF
Order no.: 37005000
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
--
Enclosure Material
Modified PPE+PS (SE1 GFN1); for details see Technical Information
Scope of delivery
2 pieces
Note
The spring clamp is snapped onto the external wall of the enclosure and then, with the enclosure, clamped into the control panel cut-out.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
37005000 NGS-NF.pdf
(31.0 KB)
Product drawing in DXF format:
37005000 NGS-NF.dxf
(576.7 KB)
- uninorm en.pdf(866.8 KB)
