Uninorm | Control panel mounting enclosure
NGS 9613
Order no.: 17961301
NGS 9613
Order no.: 17961301
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions

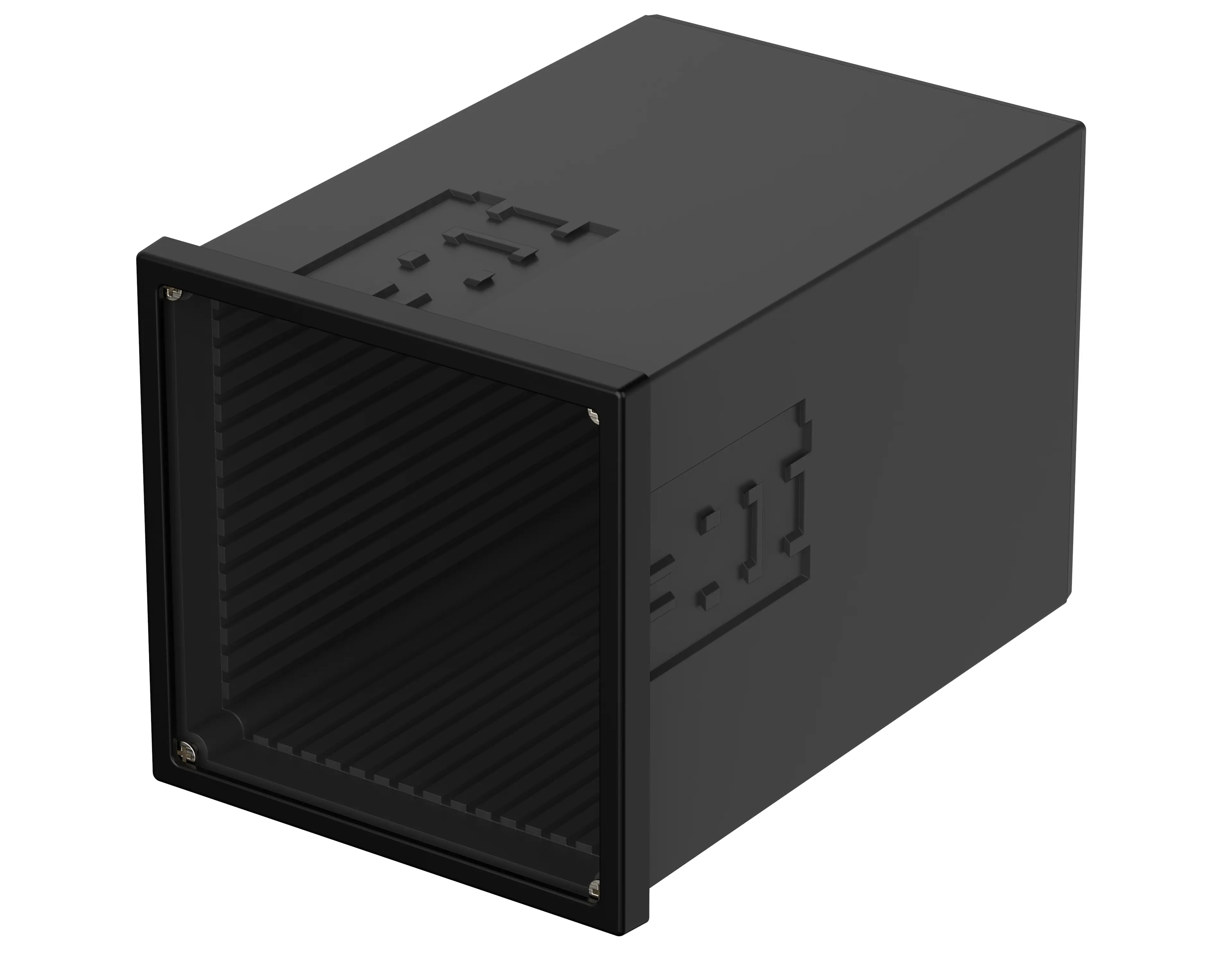

96 x 96 x 141 mm
Colour of enclosure group
Black
Protection class
IP
40
NEMA
1
Enclosure Material
Modified PPE+PS (SE1 GFN1); for details see Technical Information
Scope of delivery

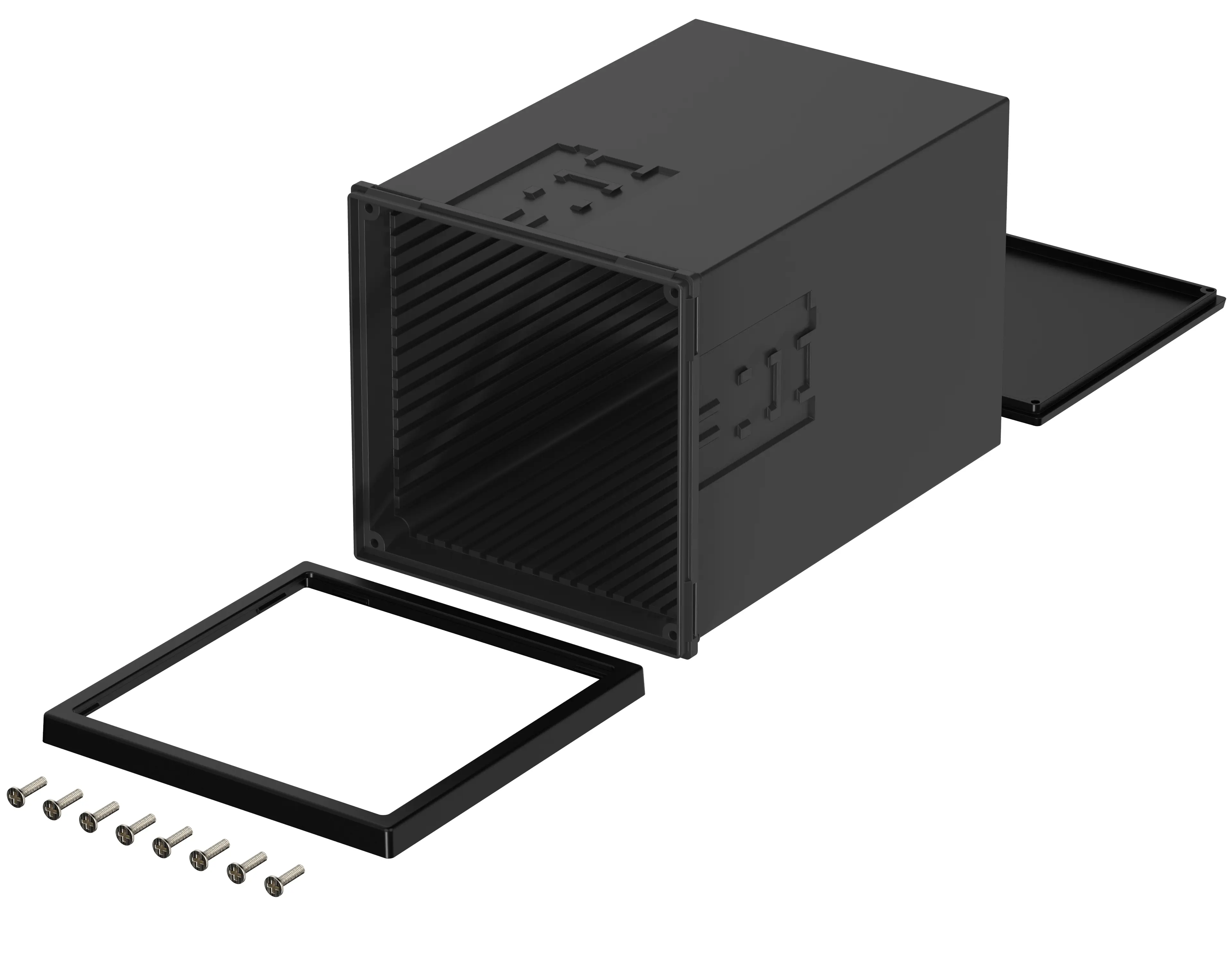

NGS...: Enclosure, standard front frame, rear lid, screws
NGS 9806-GR: Enclosure, standard front frame, 2 clamps
Note
NGS-9806-GR design with stepped rear panel.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
17961301 NGS-9613-G.dxf
(761.7 KB)
Product drawing in PDF format:
17961301 NGS-9613.pdf
(42.7 KB)
Product drawing in DXF format:
17961301 NGS-9613.dxf
(455.6 KB)
- uninorm en.pdf(866.8 KB)
Matching accessories
Clear hood cover, flexible, up to IP 65 possible
Connecting piece for insertion of standard retaining clasps acc. to DIN 43835
Crystal-clear front door, snap-on, with knob, polycarbonate
Crystal-clear hood, snap-on, polycarbonate
Cylinder lock for front door NGS...TK
External control panel seal (non-definable protection class)
Front frame with screw covers, snaps firmly on
Front lid with continuous membrane keypad, snaps firmly on
Front panel seal (non-definable protection class)
Front panels, 1,5 mm, natural-coloured anodised aluminium
Plastic front panel, red translucent, 3 mm
Screw clamp for screw-fitting enclosure
Spring clamp for fixing enclosure
