Uninorm | Control panel mounting enclosure

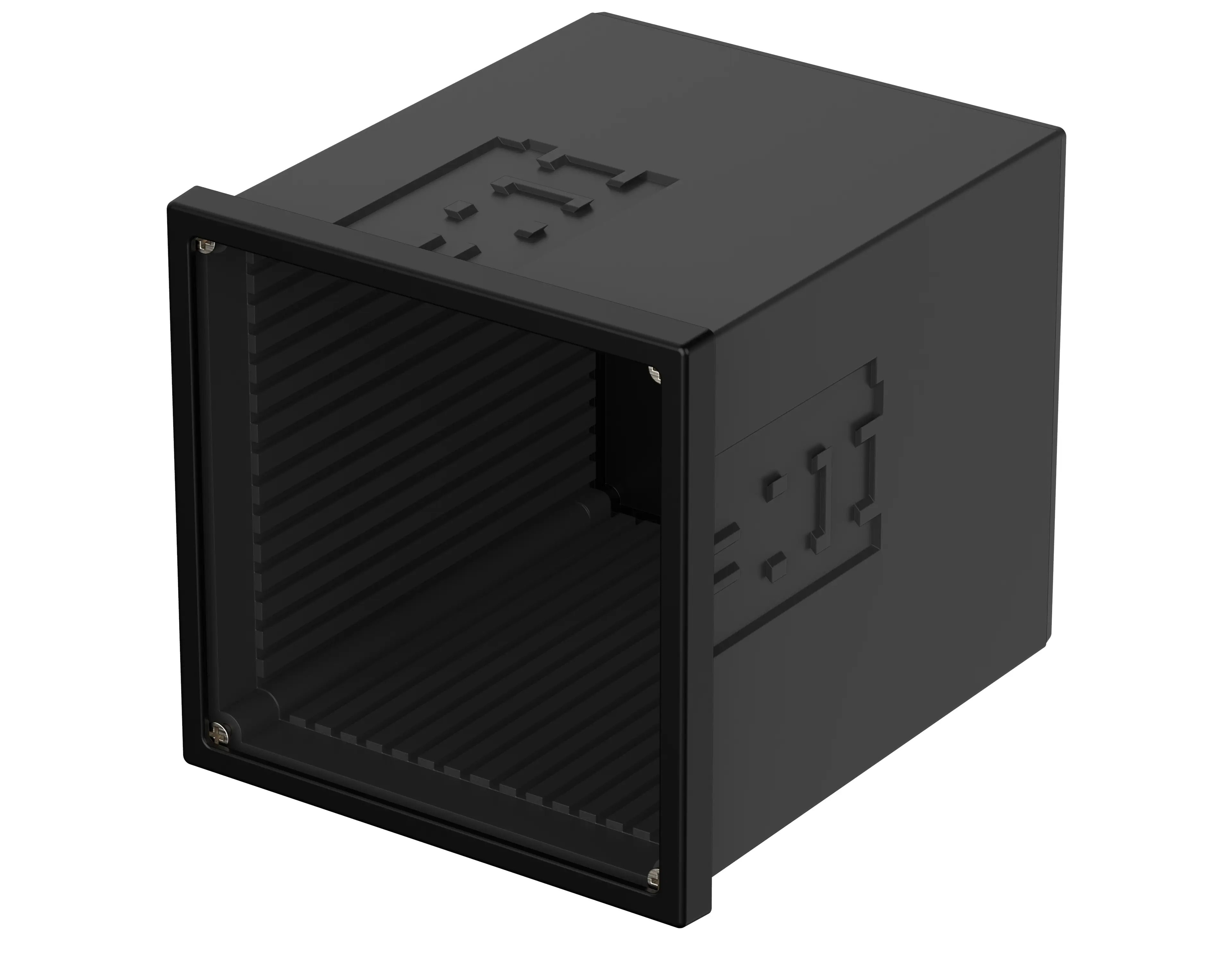

NGS 9610
Order no.: 17961001
NGS 9610
Order no.: 17961001
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
96 x 96 x 109.5 mm
Colour of enclosure group
Black
Protection class
IP
40
NEMA
1
Enclosure Material
Modified PPE+PS (SE1 GFN1); for details see Technical Information
Operating temperature: -25/100° C
Scope of delivery

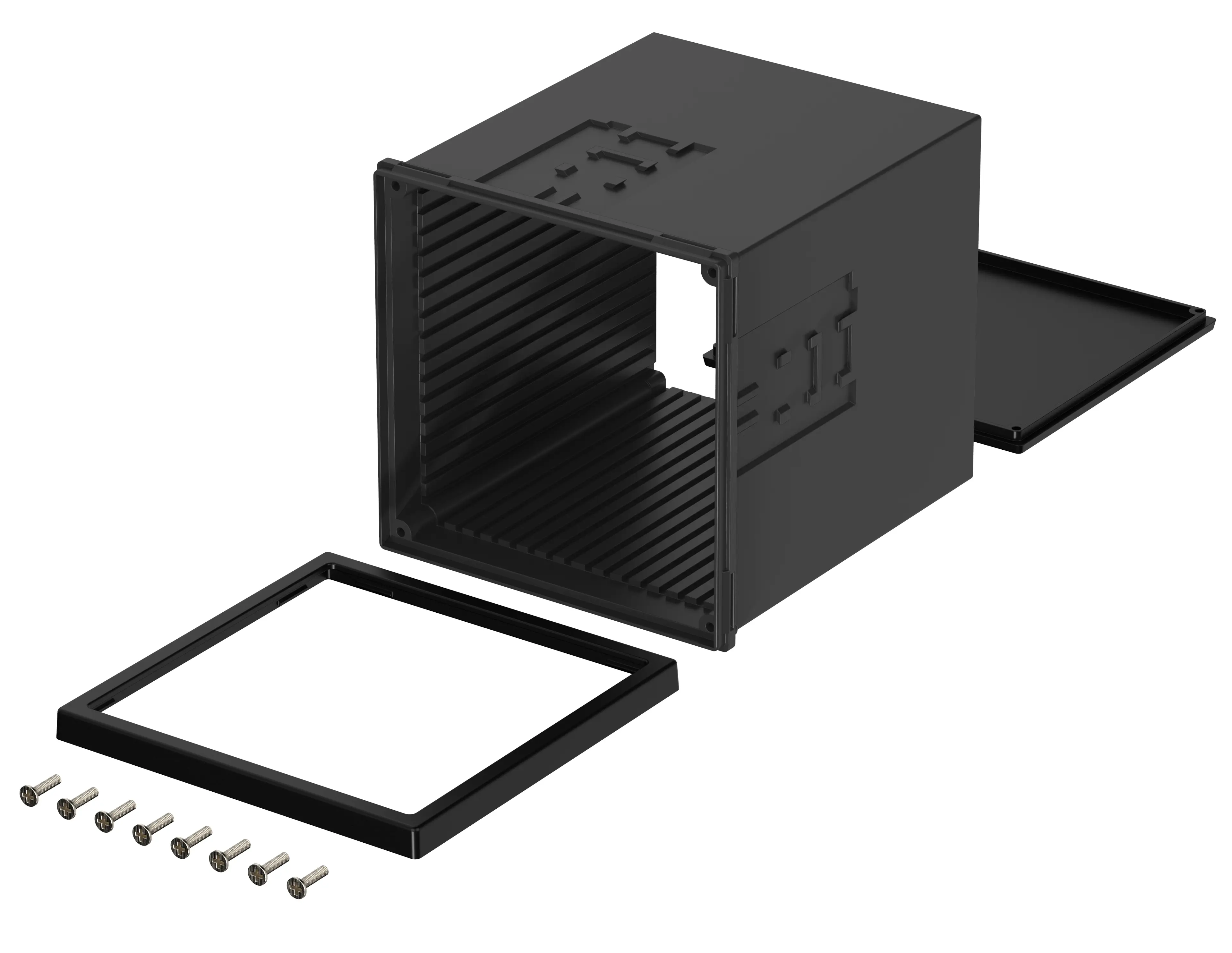

NGS...: Enclosure, standard front frame, rear lid, screws
NGS 9806-GR: Enclosure, standard front frame, 2 clamps
Note
NGS-9806-GR design with stepped rear panel.
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
17961001 NGS-9610-G.dxf
(761.7 KB)
Product drawing in PDF format:
17961001 NGS-9610.pdf
(42.7 KB)
Product drawing in DXF format:
17961001 NGS-9610.dxf
(455.6 KB)
- uninorm en.pdf(1.6 MB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- Kein SVHC
