Interzoll | Subrack 6 U for connectors (.12)

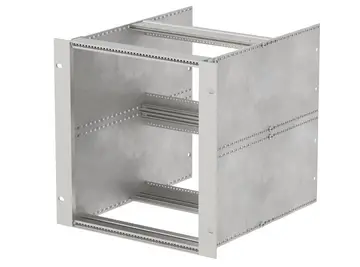

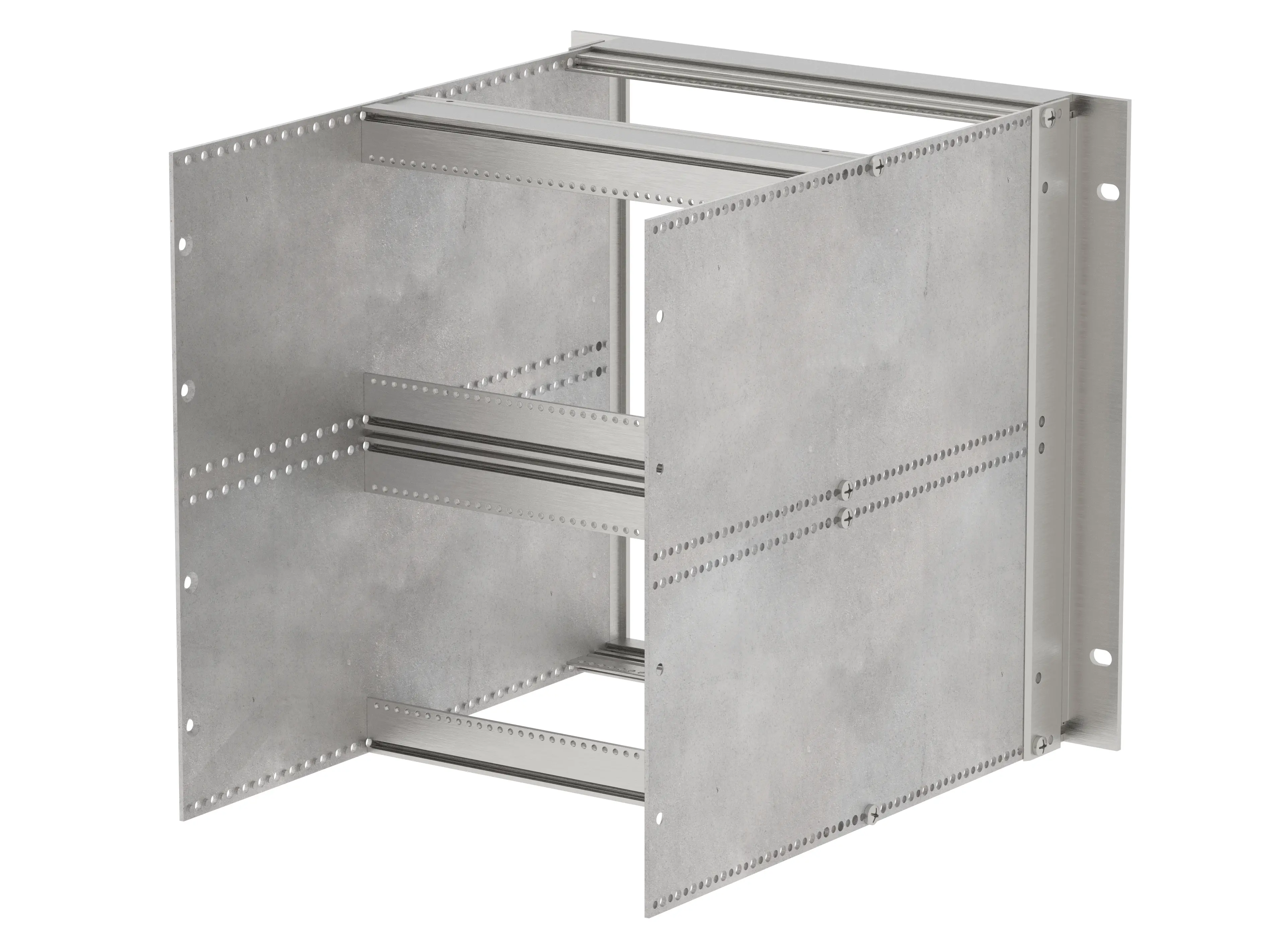

Product drawing
Enclosure concept
Characteristics
Profile Al Mg: Si 0.5; for details see Technical Information

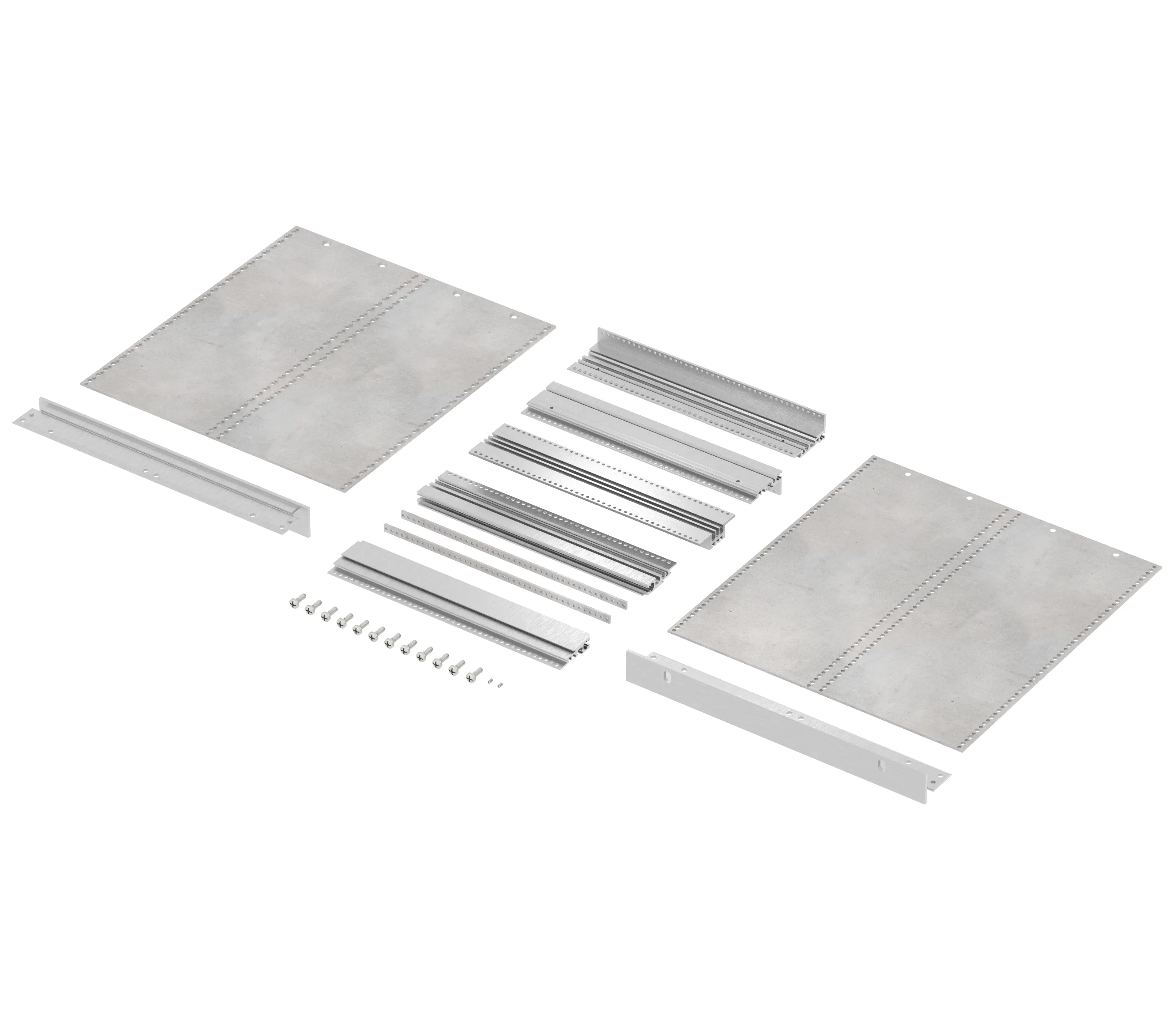

1) 2 side panels (BSW ..600)
2) 2 flanges (FL 00600)
3) 2 front profiles (PF 000..)
4) 2 rear profiles (PR 000.. .12)
5) 1 double rear profile (PSD 006.. .12)
6) 2 tapped strips for front panel fixing (GS 000.. I)
7) 12 screws M4 x 12 (BFS 0100)
8) 2 M2.5x5 (GSE-5) slotted set screws
Subrack with handle on request.
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important: Suitable pressure compensation element
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
- 19 Inch Standard Overview EN.pdf (4.6 MB)
- interzoll en.pdf (4.1 MB)
Matching accessories
Clamp profile sets, natural-coloured anodised aluminium, for screwing on of the cover plates
Clamp profile sets-l, natural-coloured anodised aluminium, for screwing on 2 cover plates behind each other
End profile on rear, natural-coloured anodised aluminium, for subrack side panels
Flanges 3 / 6 U for mounting with subrack side panels with handle drill holes
Handles for subracks, natural-coloured anodised aluminium
Partition, 3 U, screwable, with slots for GS…ll, natural-coloured anodised aluminium, for separating defined sections
