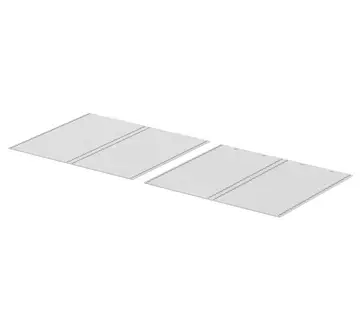

Interzoll | Side panels, passivated aluminium, without flange
BSW 24600
Order no.: 54024600
Side panel depth 226,6
BSW 24600
Order no.: 54024600
Side panel depth 226,6
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
U
6
Enclosure Material
Profile Al Mg: Si 0.5; for details see Technical Information
Scope of delivery
1 side panel
Note
Additional types on request.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
54024600 BSW-24600.pdf
(53.5 KB)
Product drawing in DXF format:
54024600 BSW-24600.dxf
(370.8 KB)
- 19 Inch Standard Overview EN.pdf(4.6 MB)
- interzoll en.pdf(4.1 MB)
