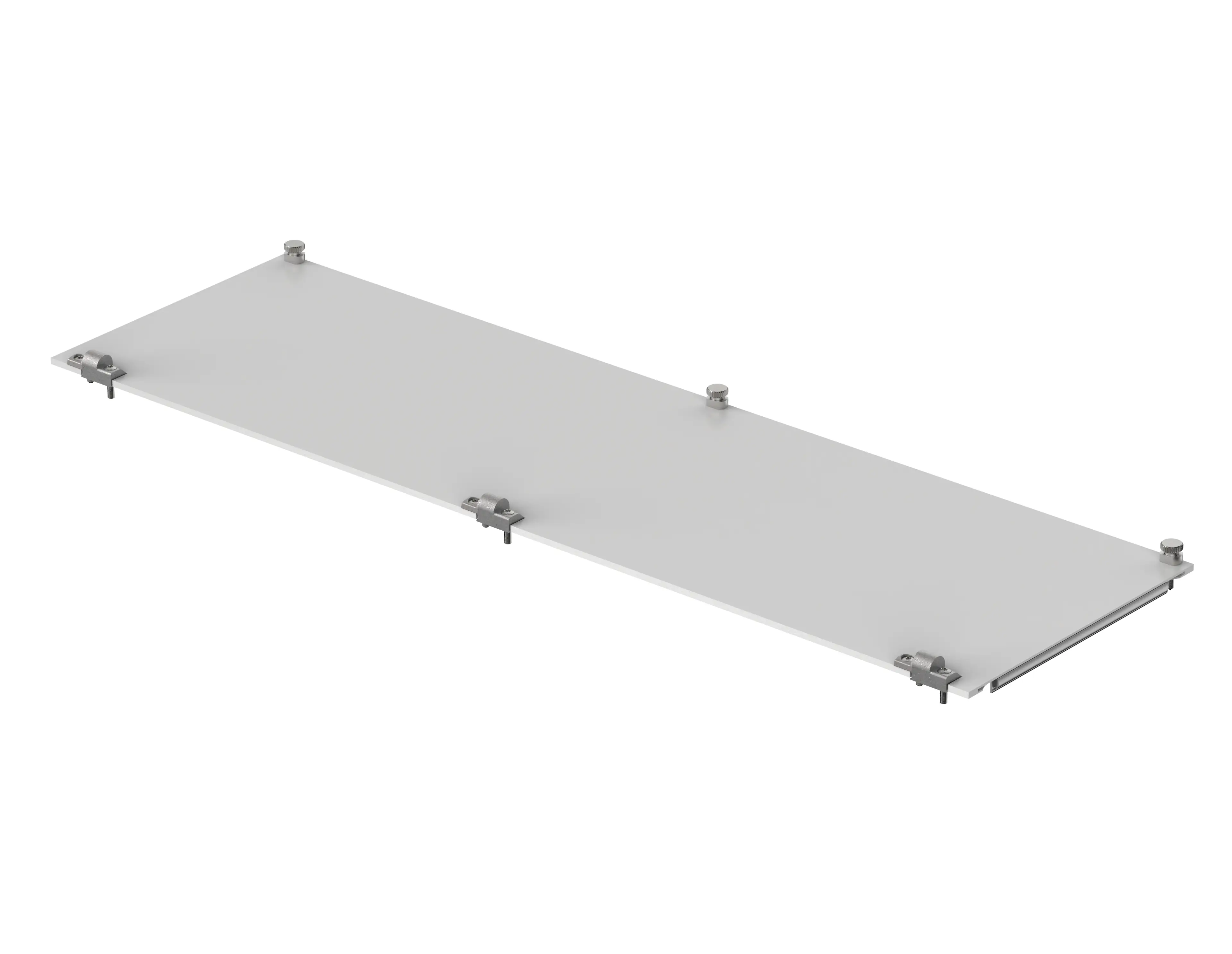

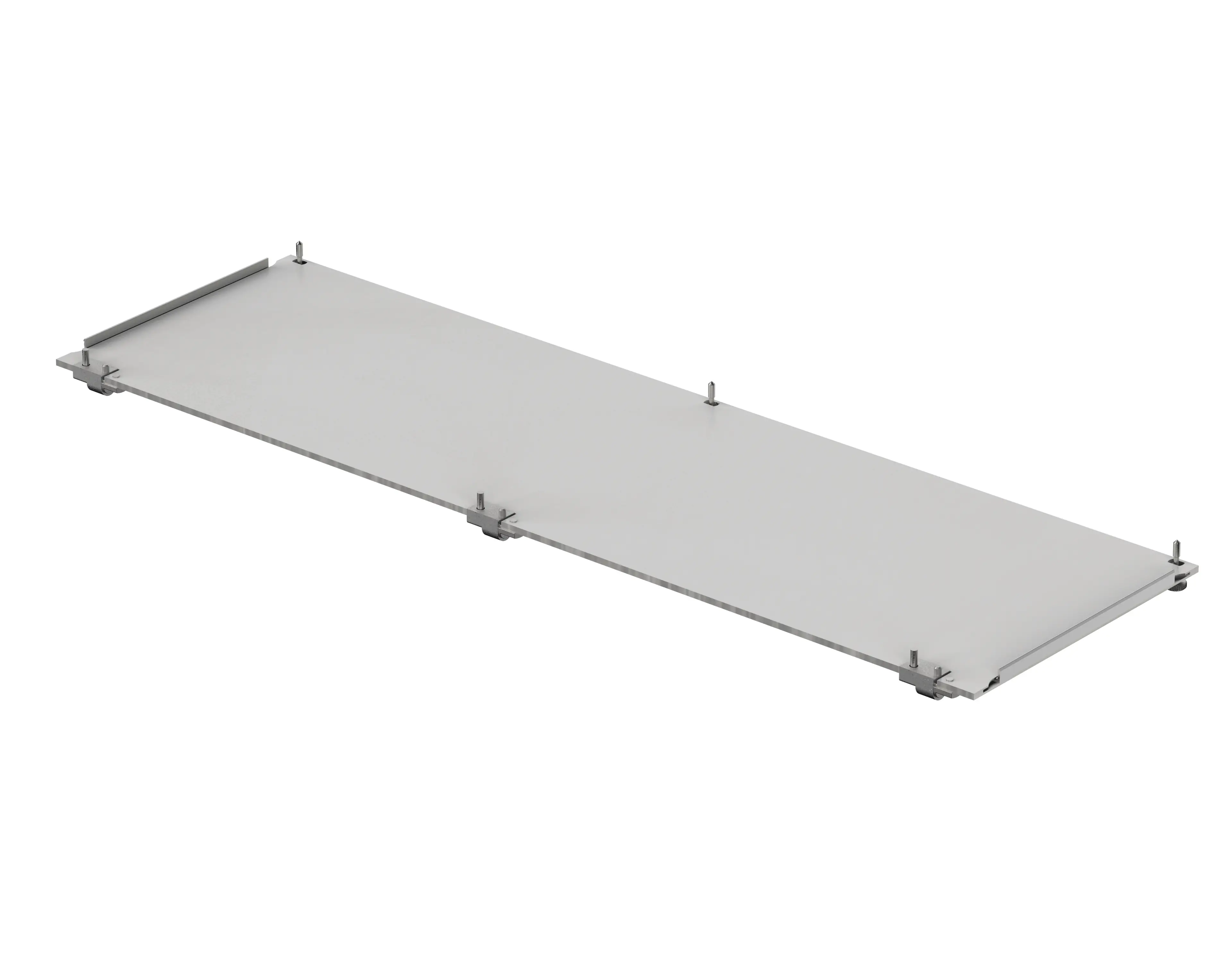

Interzoll Modul | Front panels, EMC, 3 / 6 U, collapsible, front natural-coloured anodised aluminium, passivated on rear

TF/M 384-EMV-K

Order no.: 86884037

TF/M 384-EMV-K

Order no.: 86884037

Add to the shopping basket

Show the shopping basketDownload print view

Please select:Product data sheet with accessories (approx. 2-5 pages)Print view without accessories (approx. 1 page)

* = Available on request.

Product drawing

Enclosure concept

Characteristics

Profile Al Mg: Si 0.5; for details see Technical Information

1 front panel, 1 hinge set, 3 metal screw holders, 3 knurled screws M2.5x12.3, EMC textile seal, mounting material

Shielded, part front panels with slits for EMC springs (can also be used without EMC springs). The usable width is not restricted. Can be removed at 135°, except for Internorm Stil. 1 tapped strip is required in each case for fixing up and down.

Important!

To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.

In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.

» Additional information
