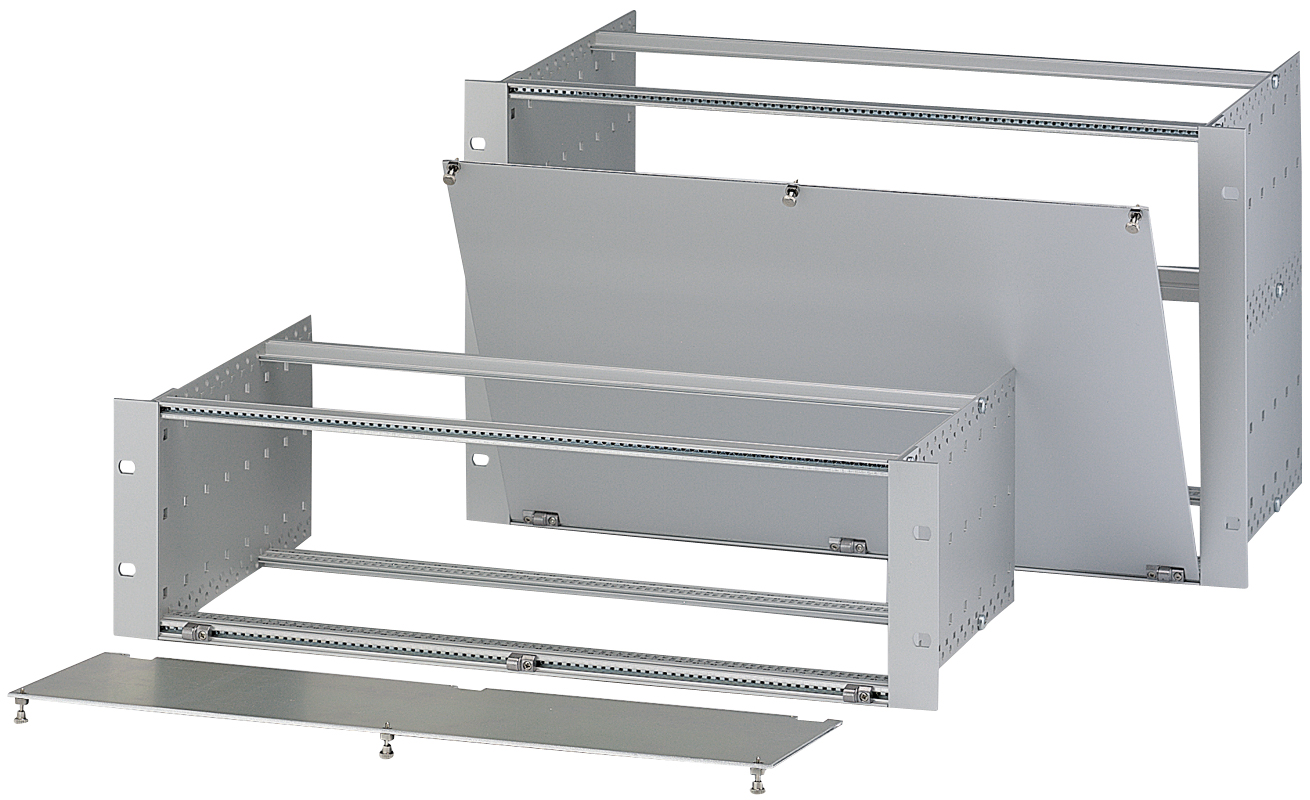

Interzoll Modul | Front panels, EMC, 3 / 6 U, collapsible, front natural-coloured anodised aluminium, passivated on rear
TF/M 342-EMV-K
Order no.: 86842037
TF/M 342-EMV-K
Order no.: 86842037
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
U
3
HP
42
Colour of enclosure group
--
Enclosure Material
Profile Al Mg: Si 0.5; for details see Technical Information
Scope of delivery
1 front panel, 1 hinge set, 3 metal screw holders, 3 knurled screws M2.5x12.3, EMC textile seal, mounting material
Note
Shielded, part front panels with slits for EMC springs (can also be used without EMC springs). The usable width is not restricted. Can be removed at 135°, except for Internorm Stil. 1 tapped strip is required in each case for fixing up and down.
