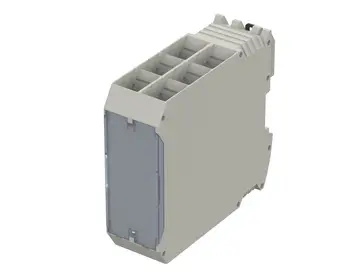

CombiNorm-Connect | Enclosure with three connection levels on both sides
CNT 35/6-2-3 TB
Order no.: 67635622.S
Test 2
CNT 35/6-2-3 TB
Order no.: 67635622.S
Test 2
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
35 x 99 x 114.5 mm
Protection class
IP
20
NEMA
1
Enclosure Material
Polyamide, UL 94 V0; for details see Technical Information
Scope of delivery
10x: Enclosure, front panel, transparent hood, foot catch, spring. Versions of CNT 12... come with foot catch and spring premounted.
Note

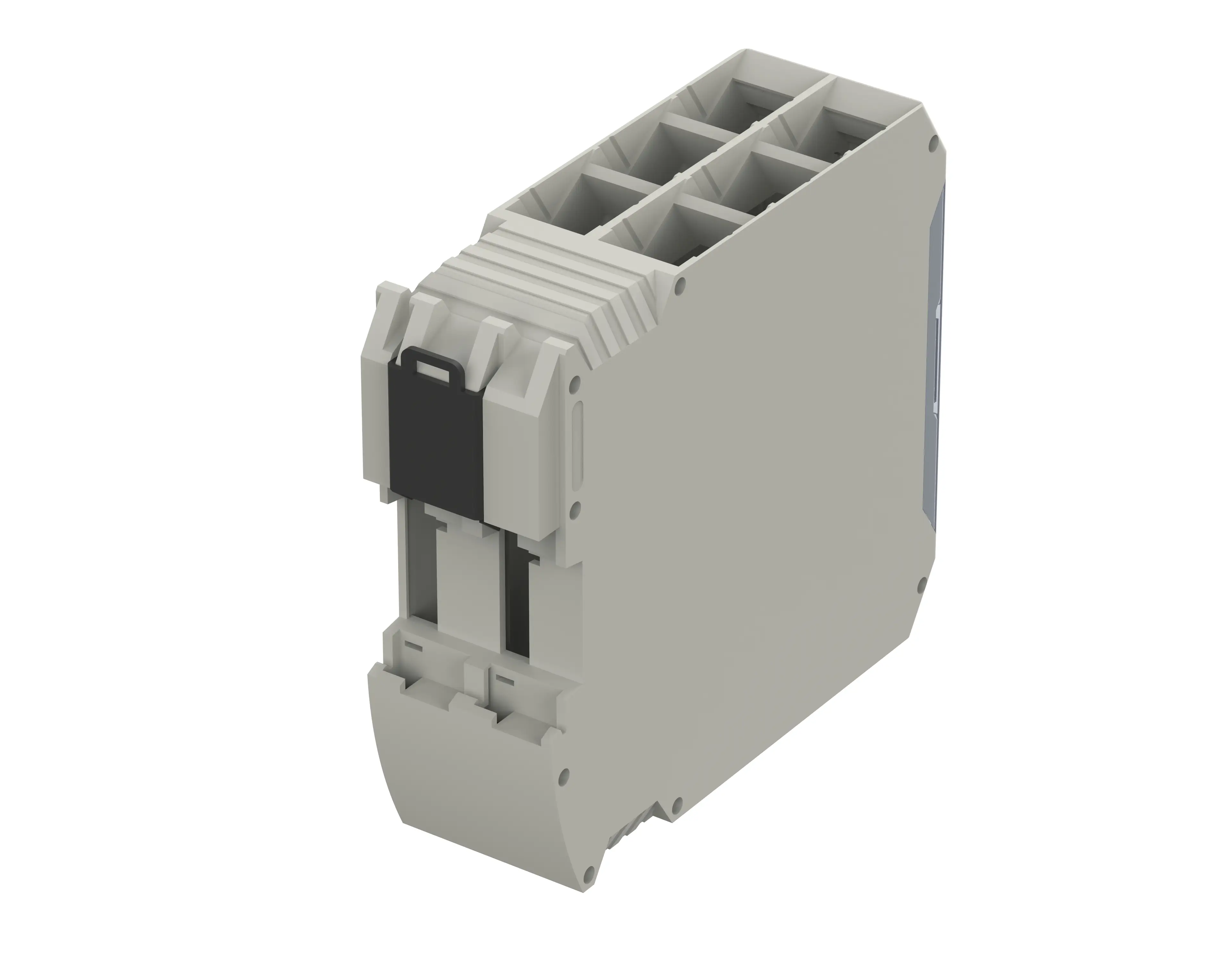

TB = with rear-side opening for DIN rail bus connector; L = with air vents
Terminal use: Solder side left
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
67635622 CNT-35-6-2-3-TB.pdf
(245.2 KB)
Product drawing in DXF format:
67635622 CNT-35-6-2-3-TB.dxf
(3.4 MB)
Drawing for max. PCB dimensions in PDF format:
CN-Connect Platinenzeichnungen-pcb.pdf
(353.3 KB)
Drawing for max. PCB dimensions in DXF format:
- combinorm-connect en.pdf(736.2 KB)
- Maximum Load DIN Rail enclosures EN.pdf(110.3 KB)
Matching accessories
Bus connector / pin strip for bus connector
Filler plug, polyamide
Functional earth ground contact
