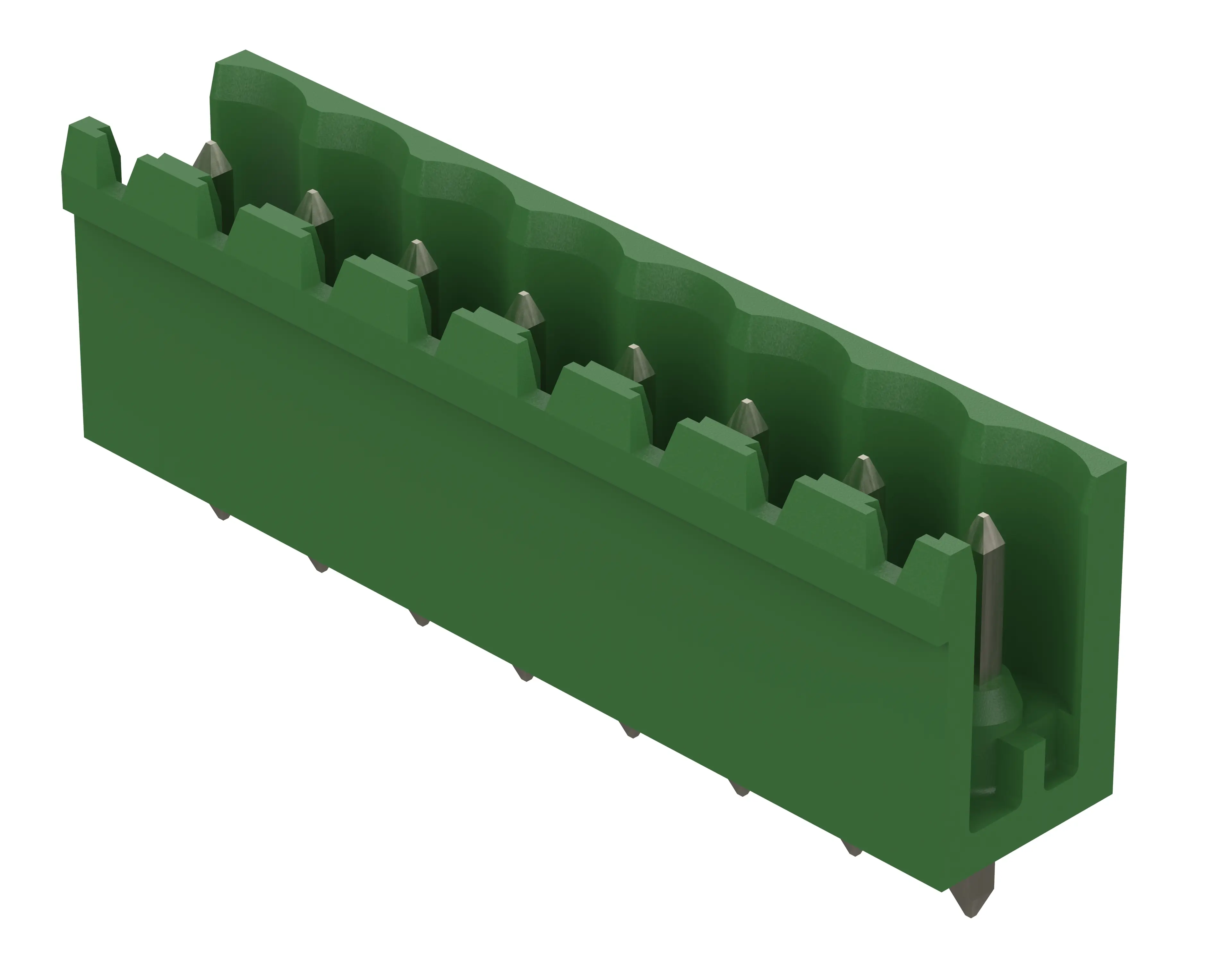

CombiNorm-Classic | Connector strip for soldering on horizontally-inserted PCBs
STL 950/8V
Order no.: 66008500
8-pole
STL 950/8V
Order no.: 66008500
8-pole
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
--
Protection class
IP
20
Enclosure Material
ABS; UL 94 V0 material on request; for details see Technical Information
Operating temperature: -30/90° C
Scope of delivery
1 connector strip
Note
For STL 950 insertion, STL adapter CNA 100 65010100 must be mounted to support the PCB.
Connector strip STL 950 and connection terminal AK 950 can only be used together.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
66008500 STL-950-8V.pdf
(31.6 KB)
66008500 2-STL-950-8V.pdf
(107.5 KB)
Product drawing in DXF format:
66008500 STL-950-8V.dxf
(445.1 KB)
66008500 2-STL-950-8V.dxf
(1.4 MB)
- combinorm-classic en.pdf(841.9 KB)
- RoHS compliance status:
- Konform mit Ausnahme Anhang III 6c
- REACH SVHC over 0,1%:
- Blei (CAS-Nr.: 7439-92-1)
- Scip No.:
- 0d4295f8-8911-40e9-83de-b27b448bf3d5
