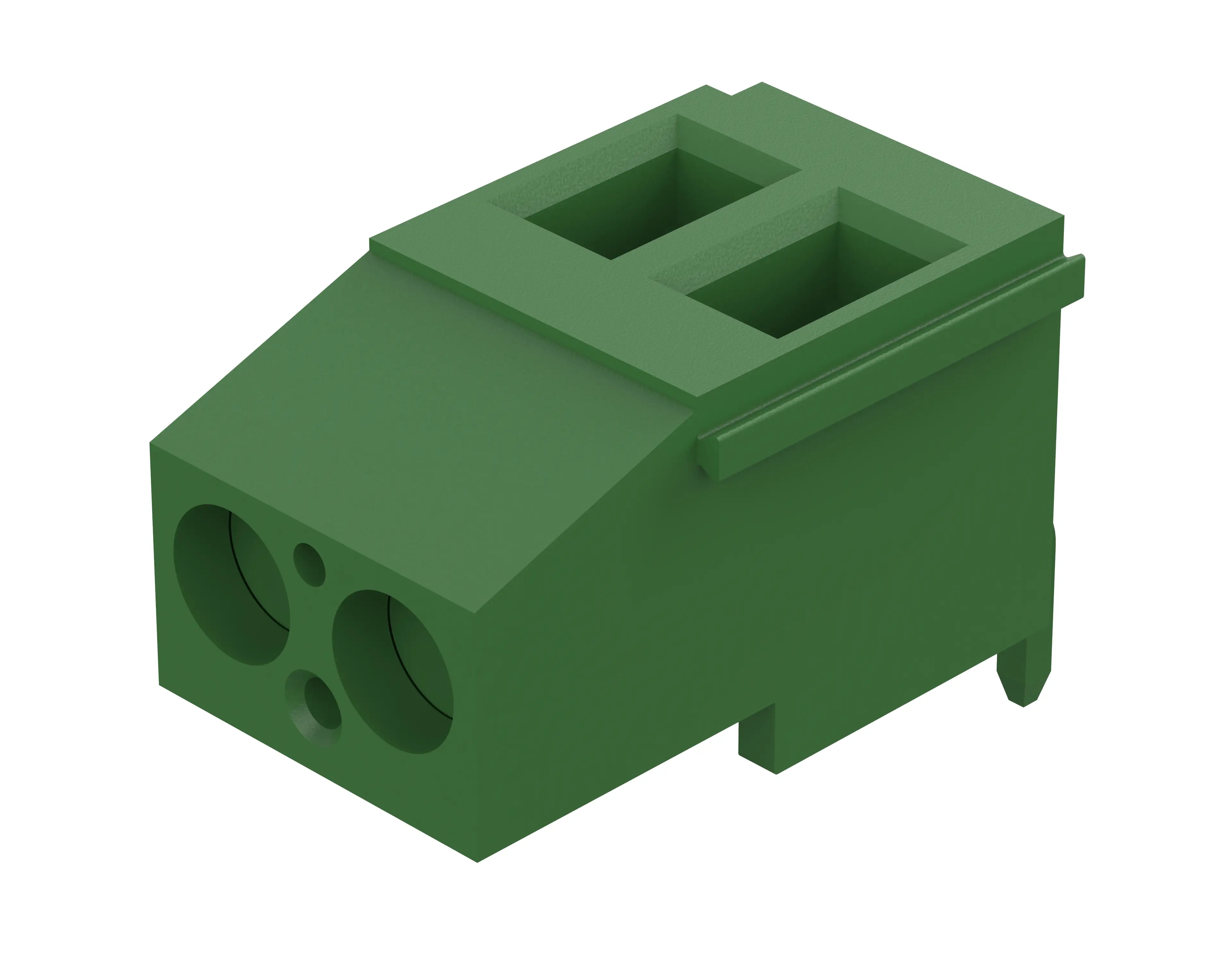

CombiNorm-Classic | Connection terminals for horizontally-inserted PCBs
AK 700/2H
Order no.: 66004110
2-pole
AK 700/2H
Order no.: 66004110
2-pole
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
--
Protection class
IP
20
Enclosure Material
ABS; UL 94 V0 material on request; for details see Technical Information
Operating temperature: -30/90° C
Scope of delivery
1 connection terminal
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
- combinorm-classic en.pdf(841.9 KB)
- RoHS compliance status:
- Konform mit Ausnahme Anhang III 6c
- REACH SVHC over 0,1%:
- Blei (CAS-Nr.: 7439-92-1)
- Scip No.:
- f914342c-3342-4271-b155-f1821a8bb5b6
