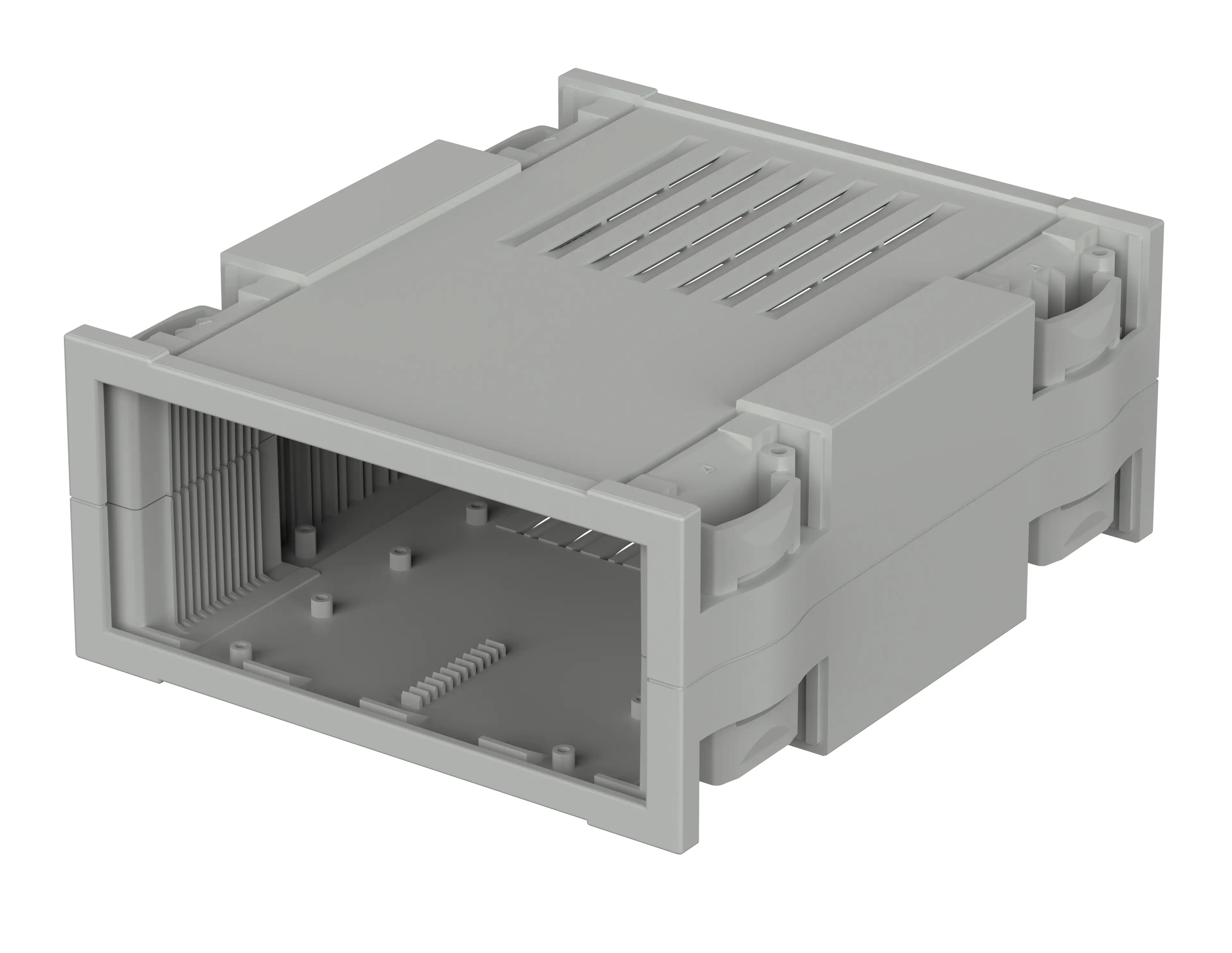

Botego | BO 320.. L
BO 32012 L
Order no.: 68320121
BO 32012 L
Order no.: 68320121
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
174 x 196.9 x 80.44 mm
U
3
HP
12
Colour of enclosure group
Light grey, similar to RAL 7035
Protection class
IP
30
NEMA
1
Enclosure Material
ABS; for details see Technical Information
Operating temperature: -25/70° C
Scope of delivery

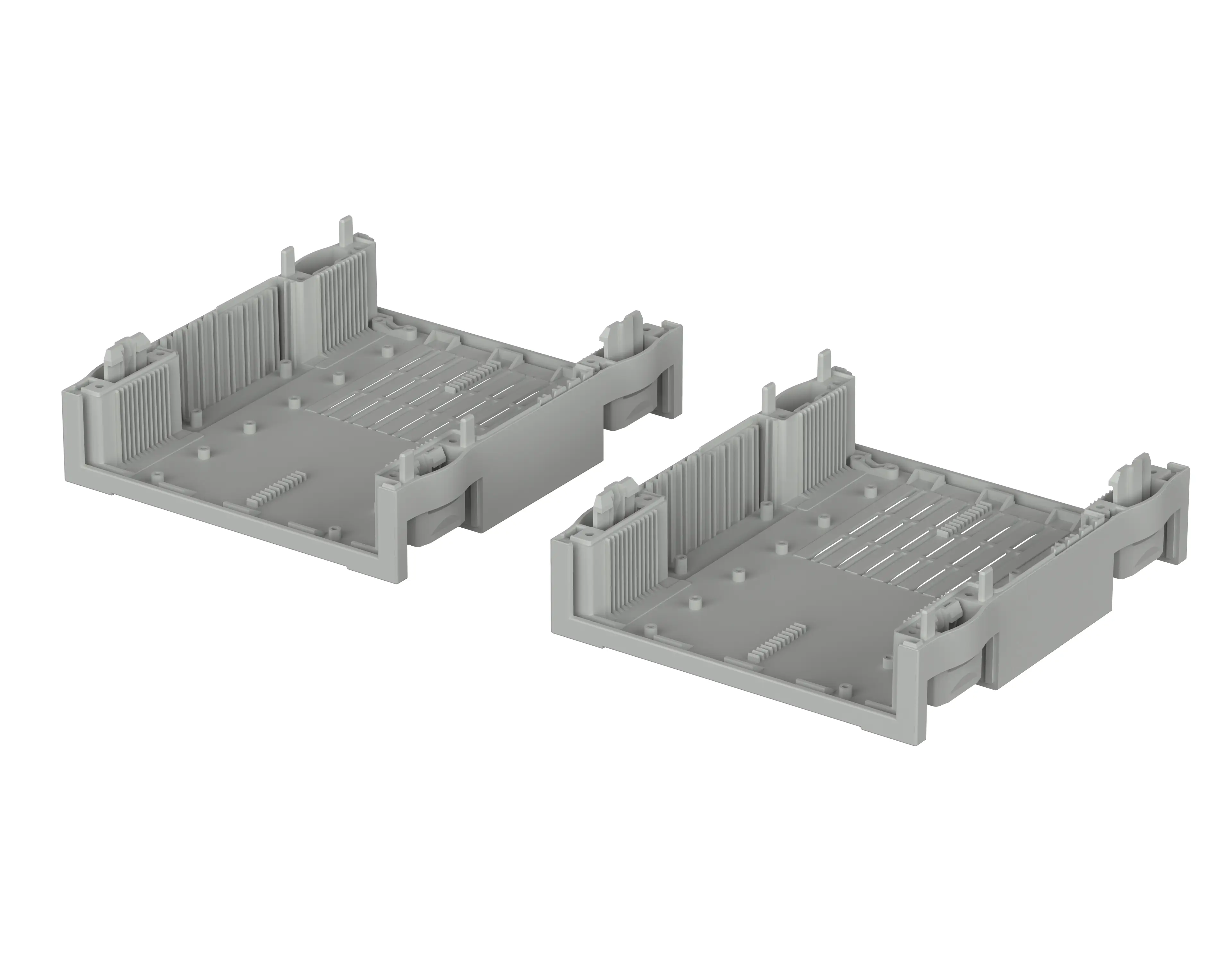

2 half-shells
Note
Caps are not included in the scope of delivery.
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
68320121 BO-32012-L-G.dxf
(3.0 MB)
Product drawing in PDF format:
68320121 BO-32012-L.pdf
(92.9 KB)
Product drawing in DXF format:
68320121 BO-32012-L.dxf
(1.1 MB)
- 700 WPZ-Botego DE.pdf(174.5 KB)
- 700 WPZ-Botego EN.pdf(169.3 KB)
- botego en.pdf(1.5 MB)
Matching accessories
Cable strain-relief set
Cap set 1 for use as desktop enclosure
Cap set 2 for optimal stackability
Cap set 3 with collapsible tip-up foot
Cap set 4 for wall mounting
Design element set 2
Design element set 3
Extension sets, 9 HP, plain and with air vents (L)
Front panels, 2 mm, natural-coloured anodised aluminium
Handle
