Botego | Enclosure, plain

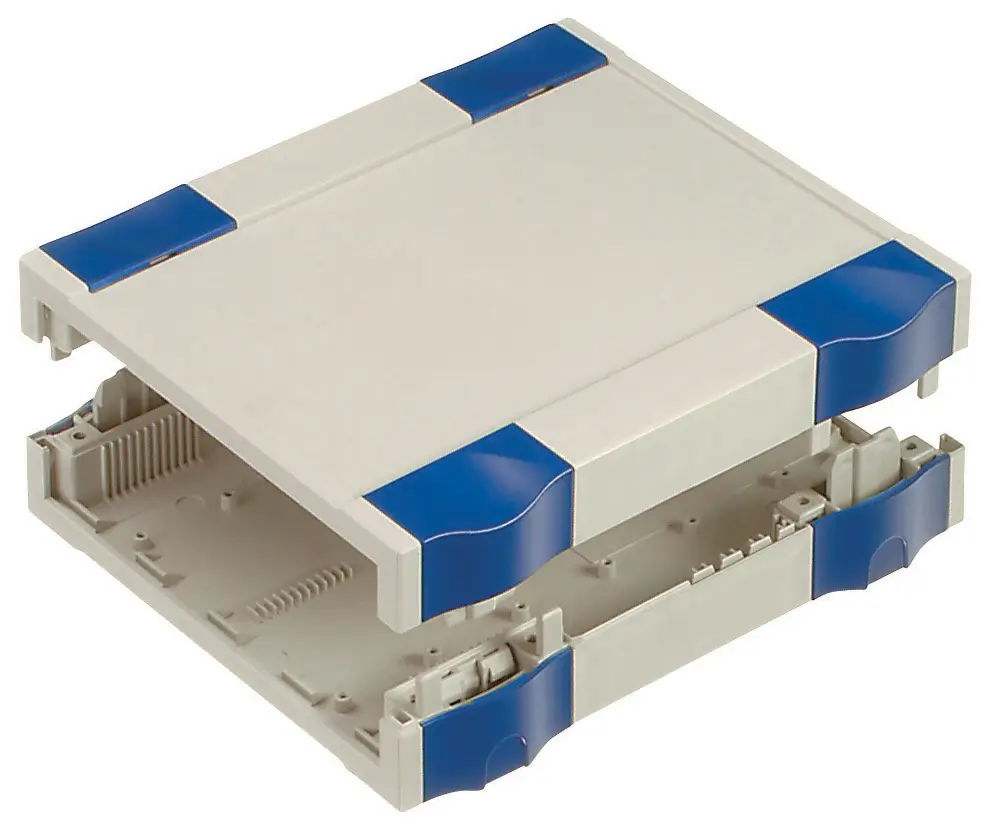

BO 320..

Model	Order no.	A	B	C	c1	IP	NEMA	HE	TE
BO 32006	68320060	174	196.9	49.96	31.28	40	1	3	6
BO 32009	68320090	174	196.9	65.2	46.52	40	1	3	9
BO 32012	68320120	174	196.9	80.44	61.76	40	1	3	12

Notes:

Caps are not included in the scope of delivery.

The dimensions are approximate values. The exact values can be found in the respective product drawing.

Scope of delivery:
2 half-shells

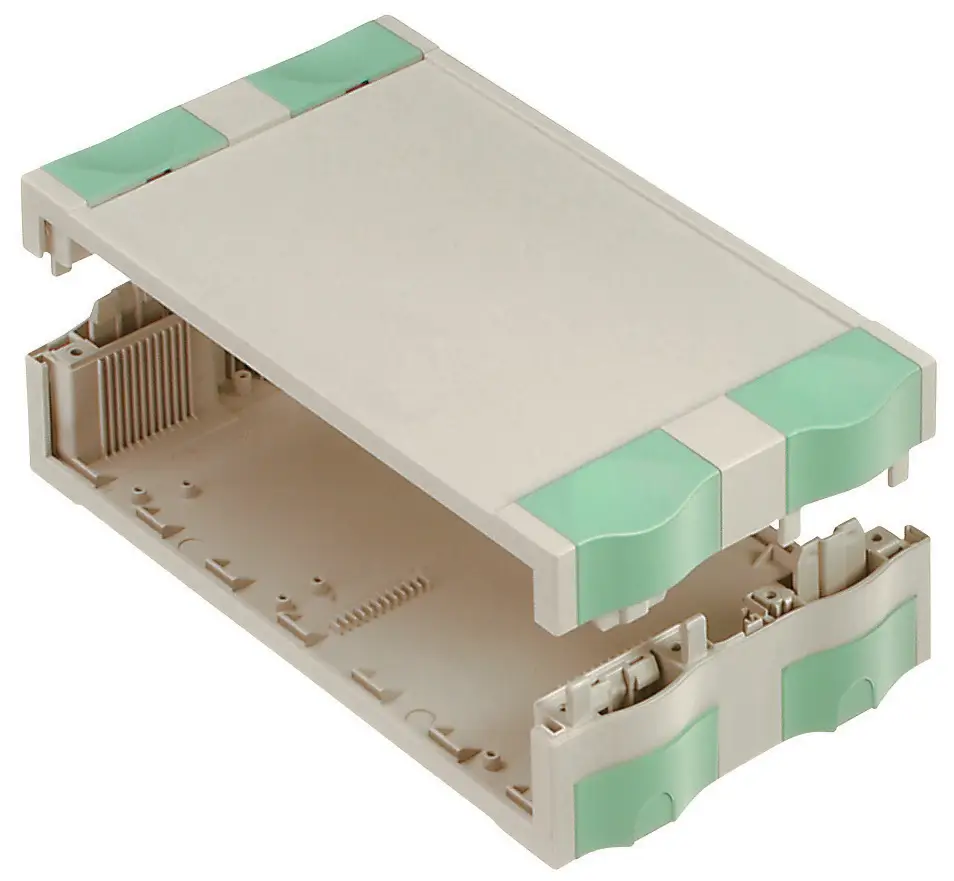

BO 514..

Model	Order no.	A	B	C	c1	IP	NEMA	HE	TE
BO 51406	68514060	240.68	136.9	49.96	31.28	40	1	4.5	6
BO 51409	68514090	240.68	136.9	65.2	46.52	40	1	4.5	9
BO 51412	68514120	240.68	136.9	80.44	61.76	40	1	4.5	12

Notes:

Caps are not included in the scope of delivery.

The dimensions are approximate values. The exact values can be found in the respective product drawing.

Scope of delivery:
2 half-shells

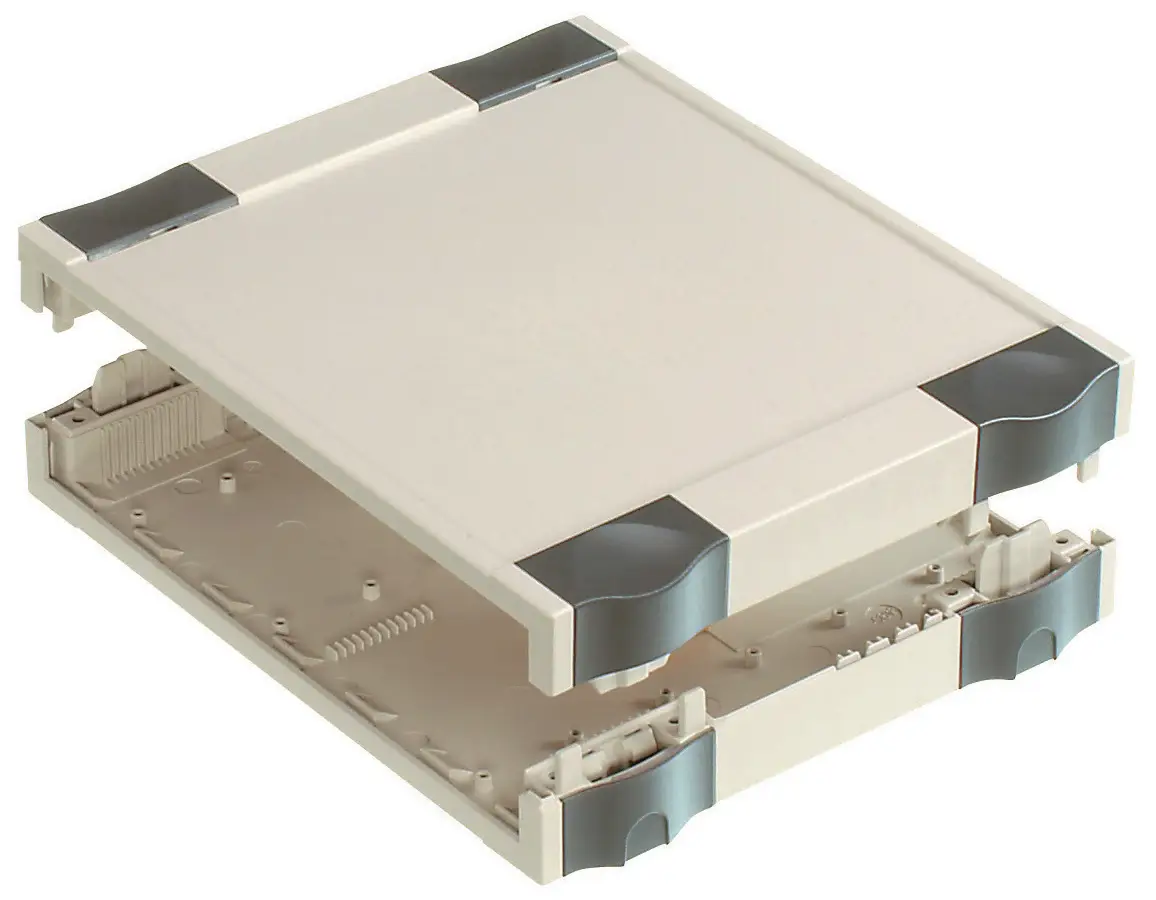

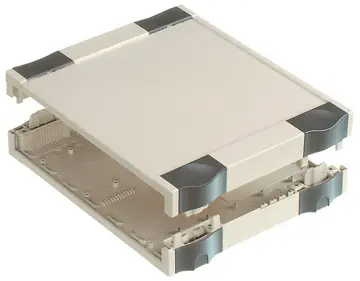

BO 520..

Model	Order no.	A	B	C	c1	IP	NEMA	HE	TE
BO 52006	68520060	240.68	196.9	49.96	31.28	40	1	4.5	6
BO 52009	68520090	240.68	196.9	65.2	46.52	40	1	4.5	9
BO 52012	68520120	240.68	196.9	80.44	61.76	40	1	4.5	12

Notes:

Caps are not included in the scope of delivery.

The dimensions are approximate values. The exact values can be found in the respective product drawing.

Scope of delivery:
2 half-shells

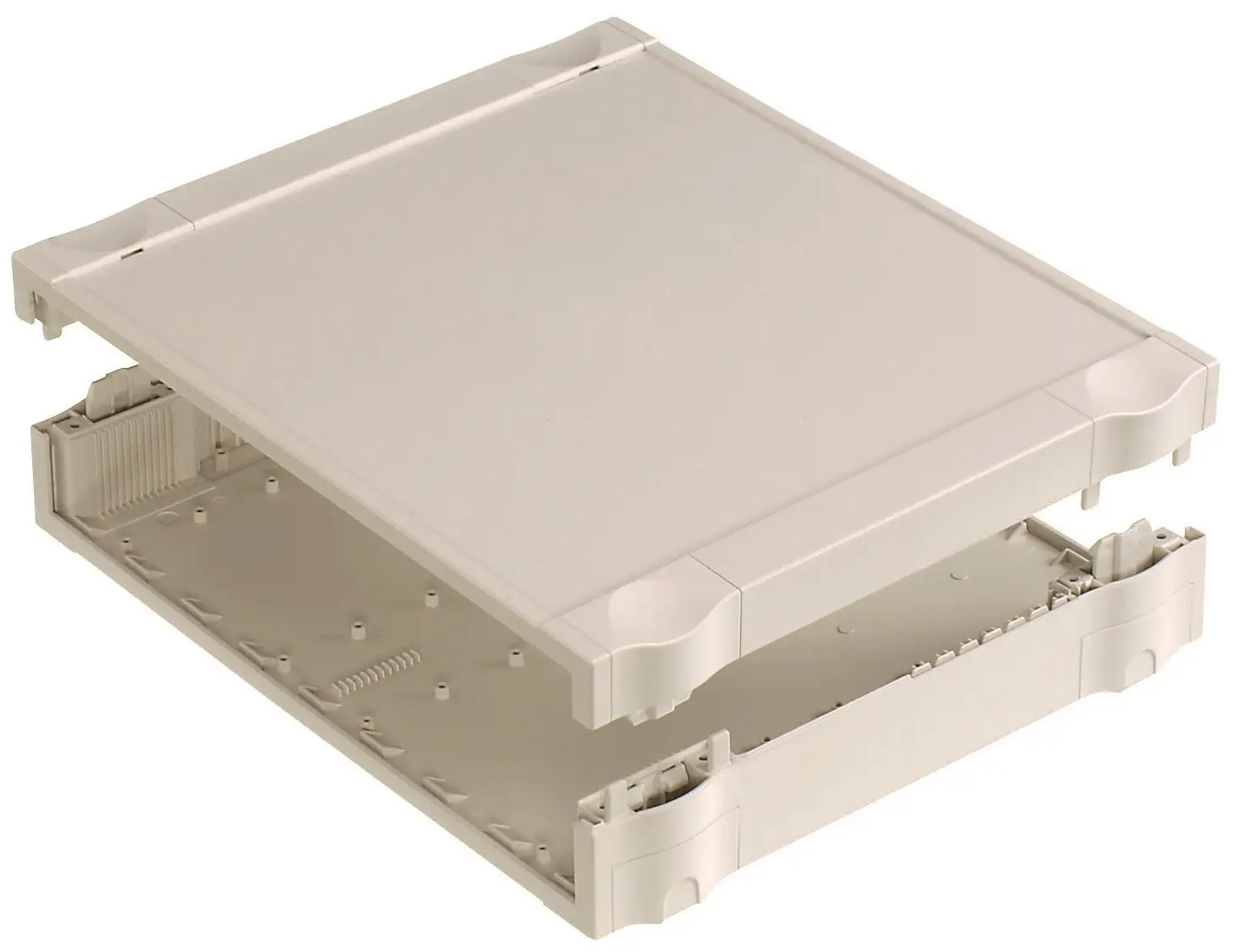

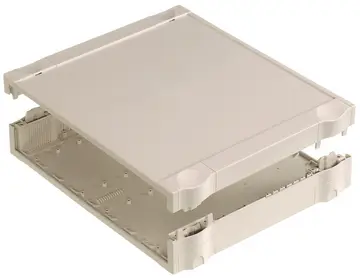

BO 626..

Model	Order no.	A	B	C	c1	IP	NEMA	HE	TE
BO 62606	68626060	307.35	256.9	49.96	31.28	40	1	6	6
BO 62609	68626090	307.35	256.9	65.2	46.52	40	1	6	9
BO 62612	68626120	307.35	256.9	80.44	61.76	40	1	6	12

Notes:

Caps are not included in the scope of delivery.

The dimensions are approximate values. The exact values can be found in the respective product drawing.

Scope of delivery:
2 half-shells
