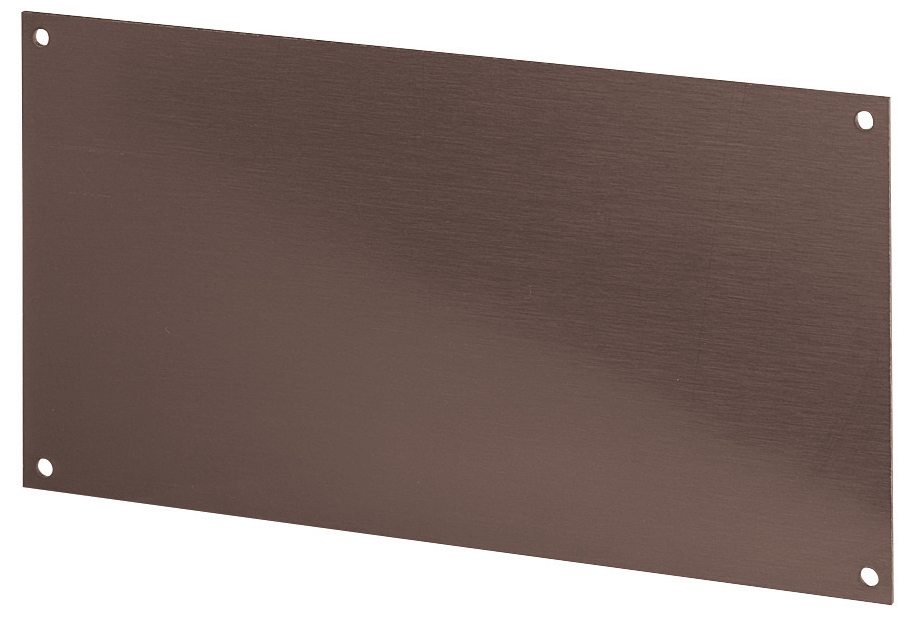

Bocard | Partitions for dividing electronics compartments, screw-on, laminated paper
BCD TP 400 F
Order no.: 20405200
For BCD 400, 405
BCD TP 400 F
Order no.: 20405200
For BCD 400, 405
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Enclosure Material
ABS, PC; seal: CR; UL 94 V0 types on request;
CR or PU seal, foamed
for details see Technical Information.
Operating temperature: -25/110° C
Scope of delivery
1 partition panel
Note
Please order fixing screws separately (order no. 59006233).
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
20405200 BCD-TP-400-F.pdf
(50.4 KB)
Product drawing in DXF format:
20405200 BCD-TP-400-F.dxf
(751.5 KB)
- 687 WPZ-Bocard-BCD-OT-GOT-FSC DE.pdf(166.0 KB)
- 687 WPZ-Bocard-BCD-OT-GOT-FSC EN.pdf(146.4 KB)
- 692 WPZ-Bocard-BCD-OT-F DE.pdf(151.9 KB)
- 692 WPZ-Bocard-BCD-OT-F EN.pdf(134.8 KB)
- bocard en.pdf(2.1 MB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- Kein SVHC
