Bocard | Wall brackets
BCD WL-7024
Order no.: 20007100
BCD WL-7024
Order no.: 20007100
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.

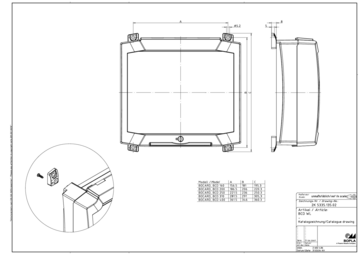

Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
Graphite grey, similar to RAL 7024
Enclosure Material
ABS, PC; seal: CR; UL 94 V0 types on request;
CR or PU seal, foamed
for details see Technical Information.
Operating temperature: -25/70° C

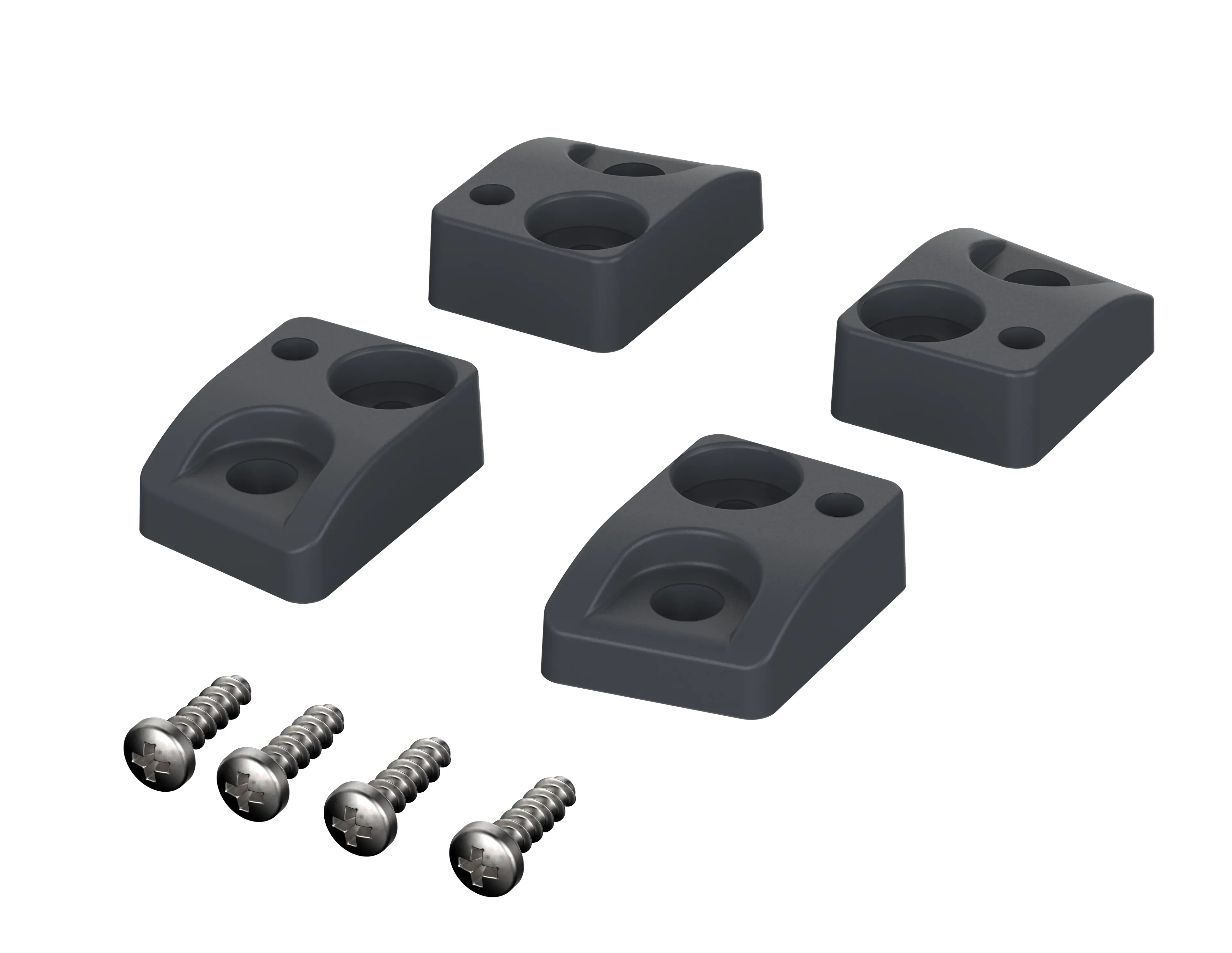

Scope of delivery
4 wall brackets, screws
Note
For 4-point wall fixing without opening the enclosure. Fitting to rear of enclosure from the outside. Suitable for all enclosures in this series.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
20007100 BCD-WL-7024.pdf
(63.2 KB)
Product drawing in DXF format:
20007100 BCD-WL-7024.dxf
(734.8 KB)
- 687 WPZ-Bocard-BCD-OT-GOT-FSC DE.pdf(166.0 KB)
- 687 WPZ-Bocard-BCD-OT-GOT-FSC EN.pdf(146.4 KB)
- 692 WPZ-Bocard-BCD-OT-F DE.pdf(151.9 KB)
- 692 WPZ-Bocard-BCD-OT-F EN.pdf(134.8 KB)
- bocard en.pdf(2.1 MB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- Kein SVHC
