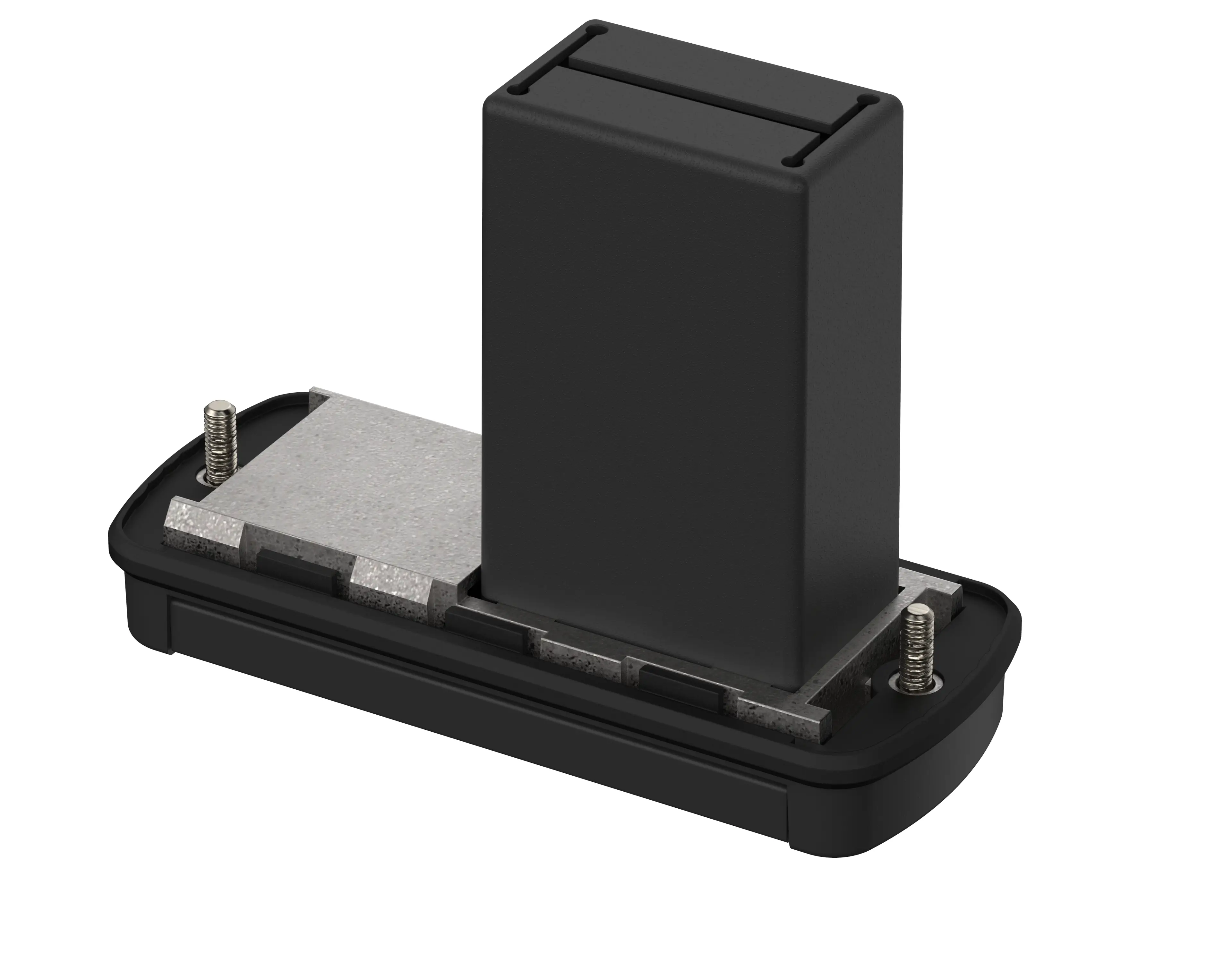

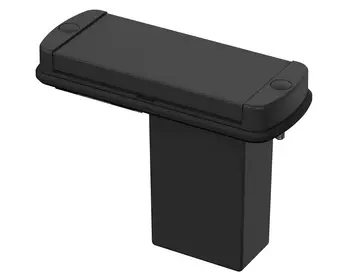

Alubos | Mounting lid with removable aluminium cap and compartment for 9V block battery
ABM 800 AL BE
Order no.: 84082100
For AB 800
ABM 800 AL BE
Order no.: 84082100
For AB 800
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
Black, similar to RAL 9005
Protection class
IP
65
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated; diecast lid: GB Al Si 12, powder-coated; seal: TPE; for details see Technical Information
Scope of delivery

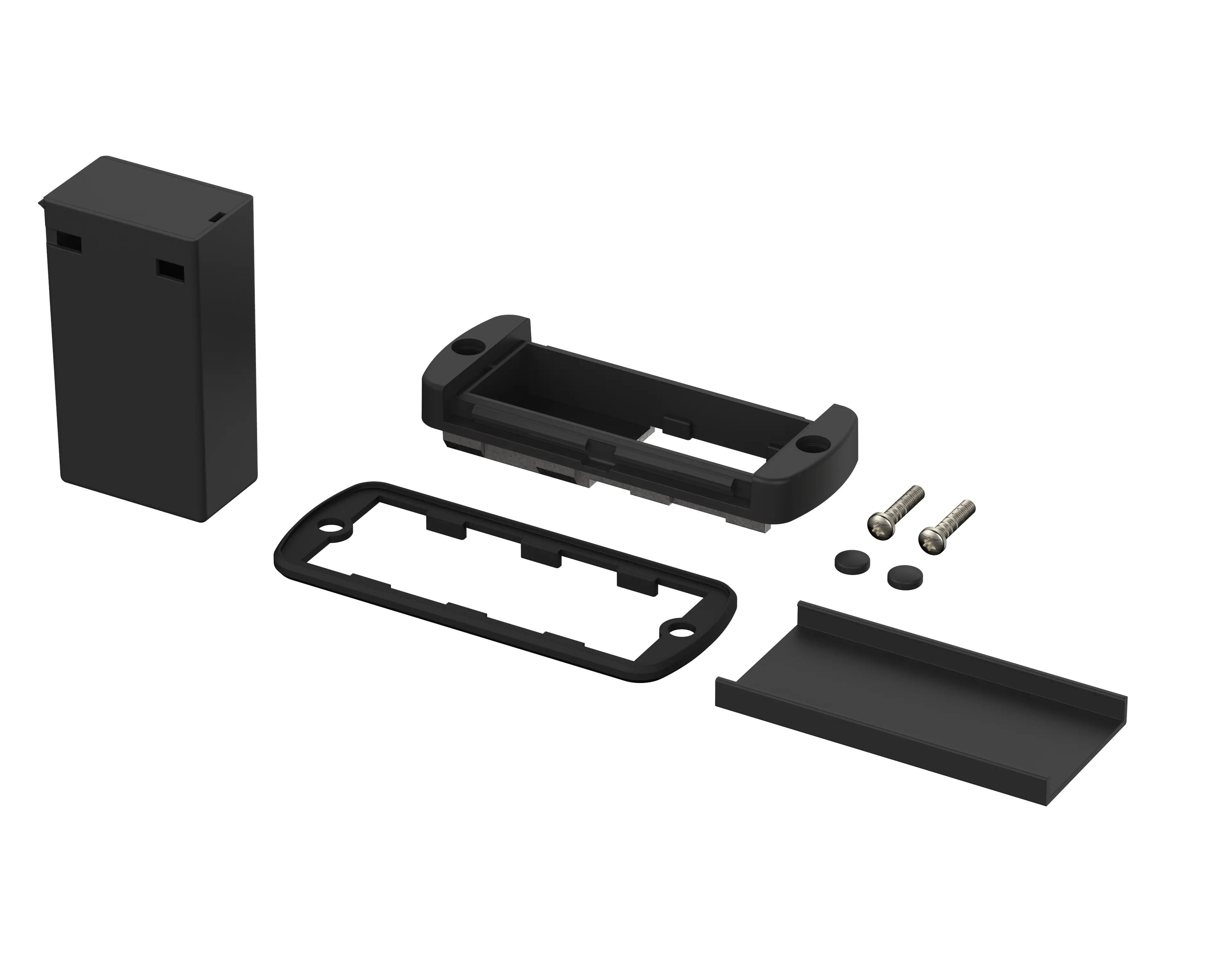

Mounting lid, aluminium profile cap, compartment for 9V block battery (6LR61, 6AM6, 522), black seal, screws, black screw covers
Note
Additional battery compartments available on request.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
84082100 ABM-800-AL-BE-G.dxf
(895.7 KB)
Product drawing in PDF format:
84082100 ABM-800-AL-BE.pdf
(105.4 KB)
Product drawing in DXF format:
84082100 ABM-800-AL-BE.dxf
(1.1 MB)
AlSi12 Legierung
(Cover)
PP Purell HP371P
(Battery compartment)
- alubos en.pdf(2.4 MB)
Matching accessories
EMC seals
Seals UL 94 V0
Seals, fire red
Seals, patina green
Seals, rape yellow
