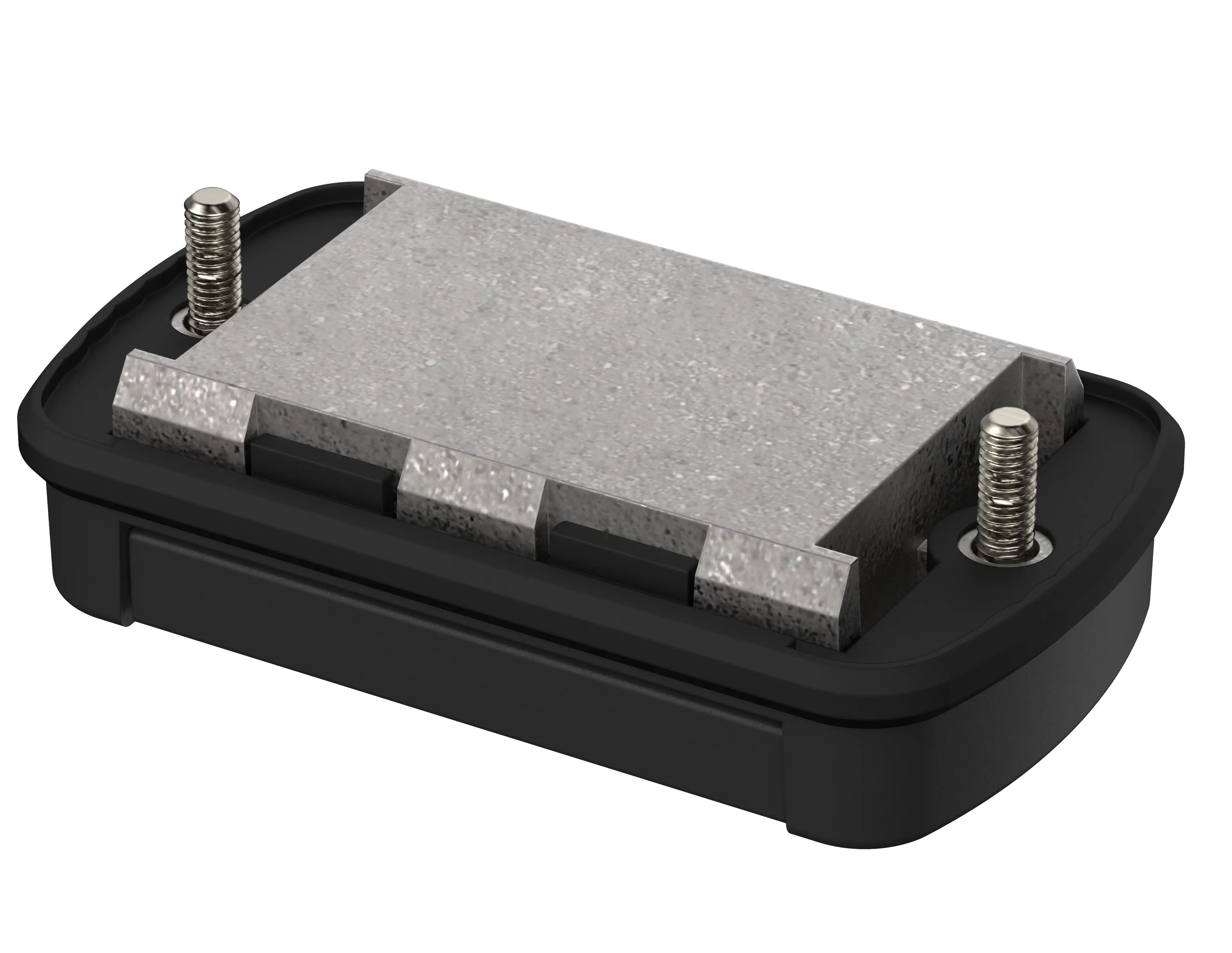

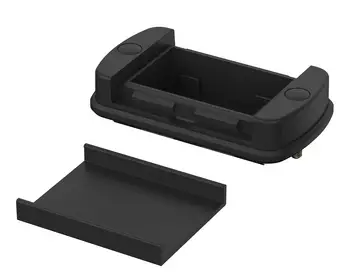

Alubos | Mounting lid with removable aluminium cap
ABM 600 AL
Order no.: 84062000
For AB 600
ABM 600 AL
Order no.: 84062000
For AB 600
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
Black, similar to RAL 9005
Protection class
IP
65
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated; diecast lid: GB Al Si 12, powder-coated; seal: TPE; for details see Technical Information
Operating temperature: -40/70° C
Scope of delivery

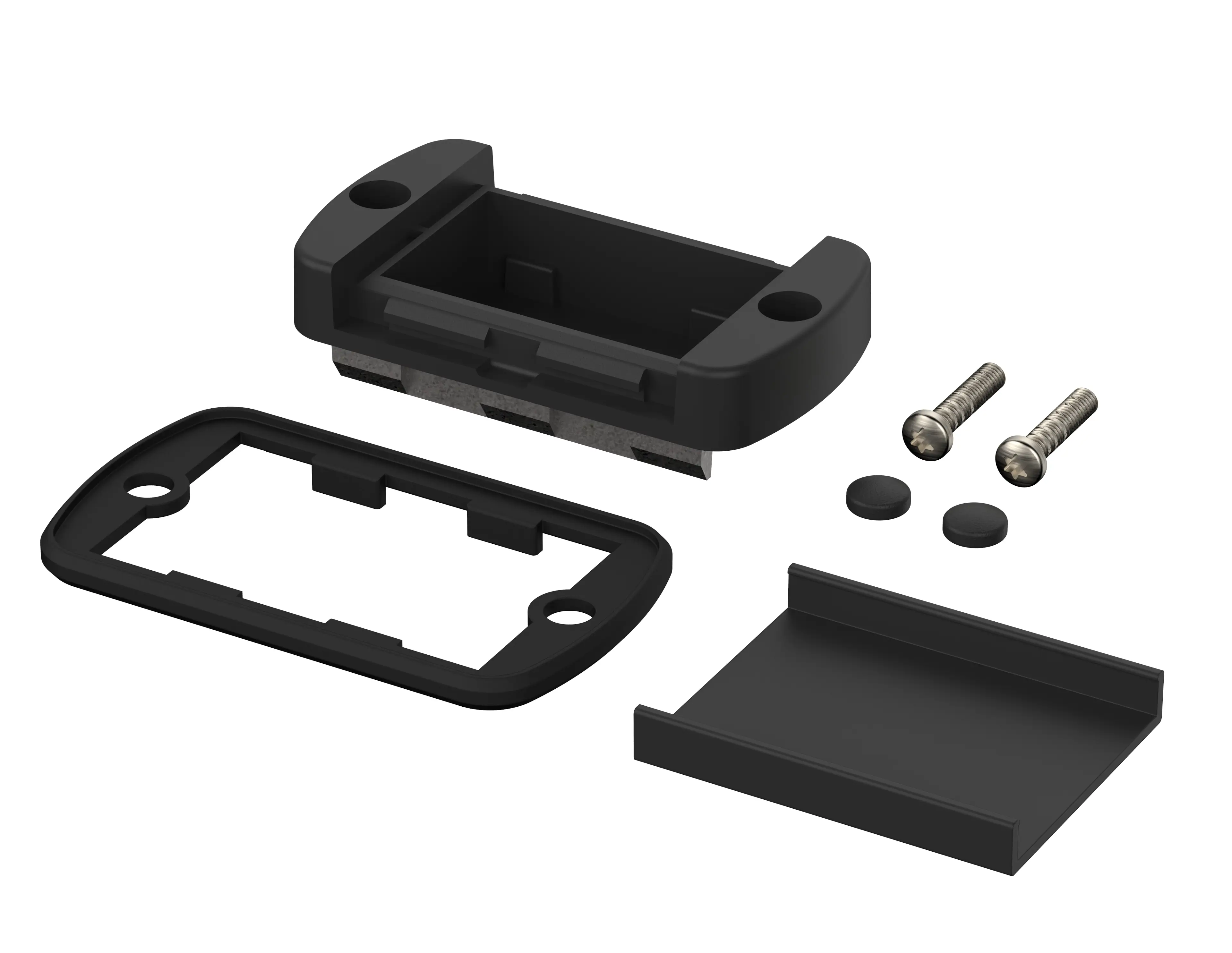

Mounting lid, aluminium profile cap, black seal, screws, black screw covers
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
84062000 ABM-600-AL-G.dxf
(367.2 KB)
84062000 ABM-600-AL-G.dxf.dxf
(909.4 KB)
Product drawing in PDF format:
84062000 ABM-600-AL.pdf
(101.6 KB)
Product drawing in DXF format:
84062000 ABM-600-AL.dxf
(1.1 MB)
AlSi12 Legierung
Beschichtung Brillux 5904
- alubos en.pdf(2.4 MB)
