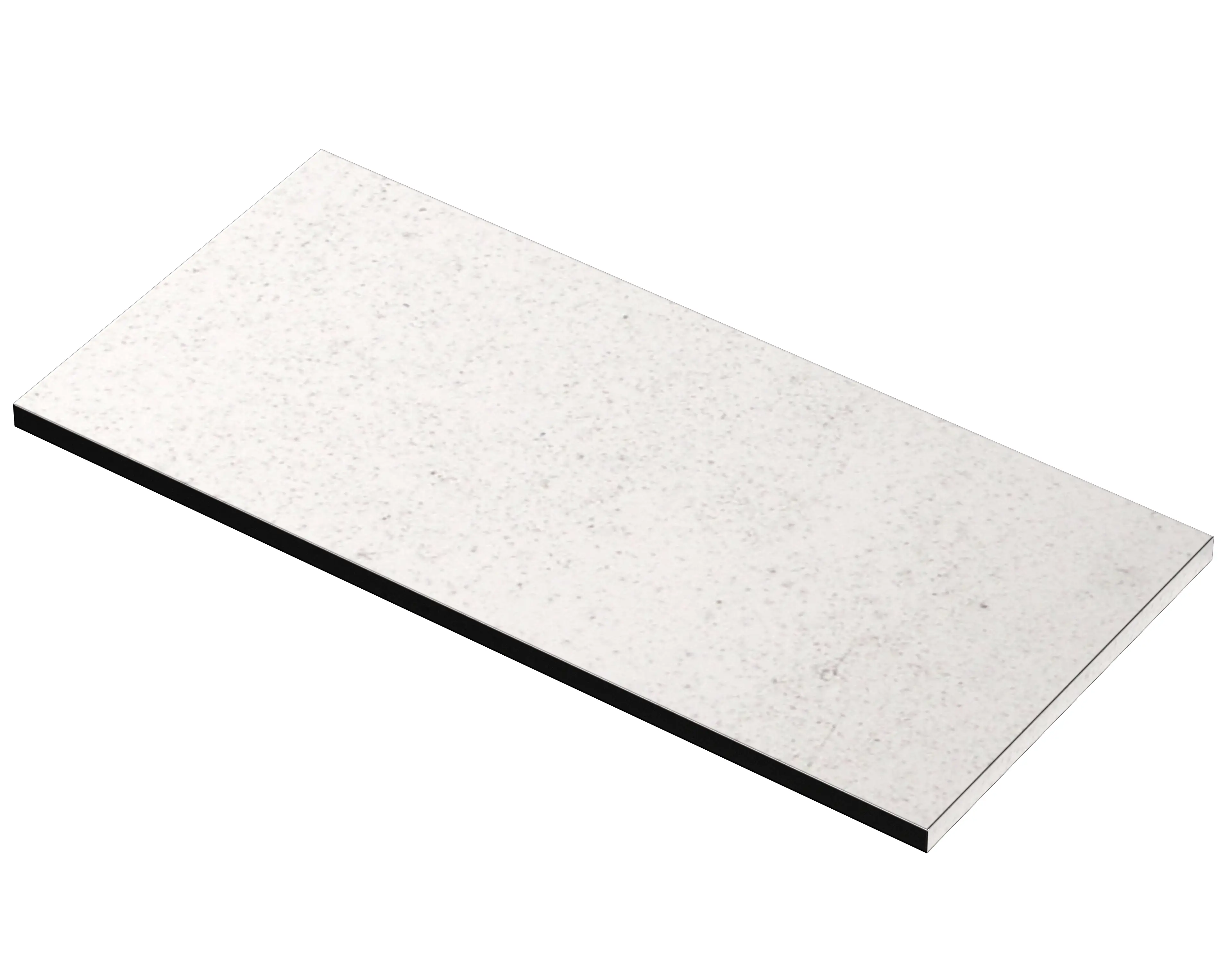

Unimas | Front panels, aluminium
U 85 FAE
Order no.: 26008500*
For U 85
U 85 FAE
Order no.: 26008500*
For U 85
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.

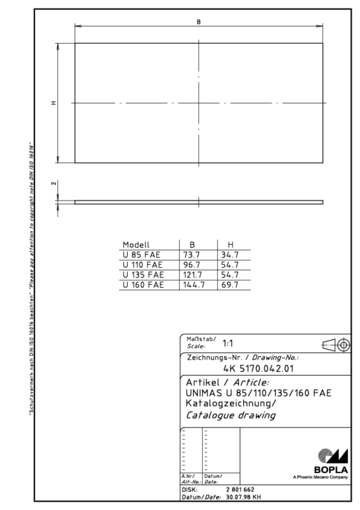

Product drawing
Enclosure concept
Characteristics
Protection class
IP
40
Enclosure Material
PS (polystyrene); for details see Technical Information
Operating temperature: -25/110° C
Scope of delivery
1 front panel
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
26008500 U-85-FAE.pdf
(26.8 KB)
Product drawing in DXF format:
26008500 U-85-FAE.dxf
(349.4 KB)
- unimas en.pdf(461.0 KB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- Kein SVHC
