Unimas | Unimas enclosures

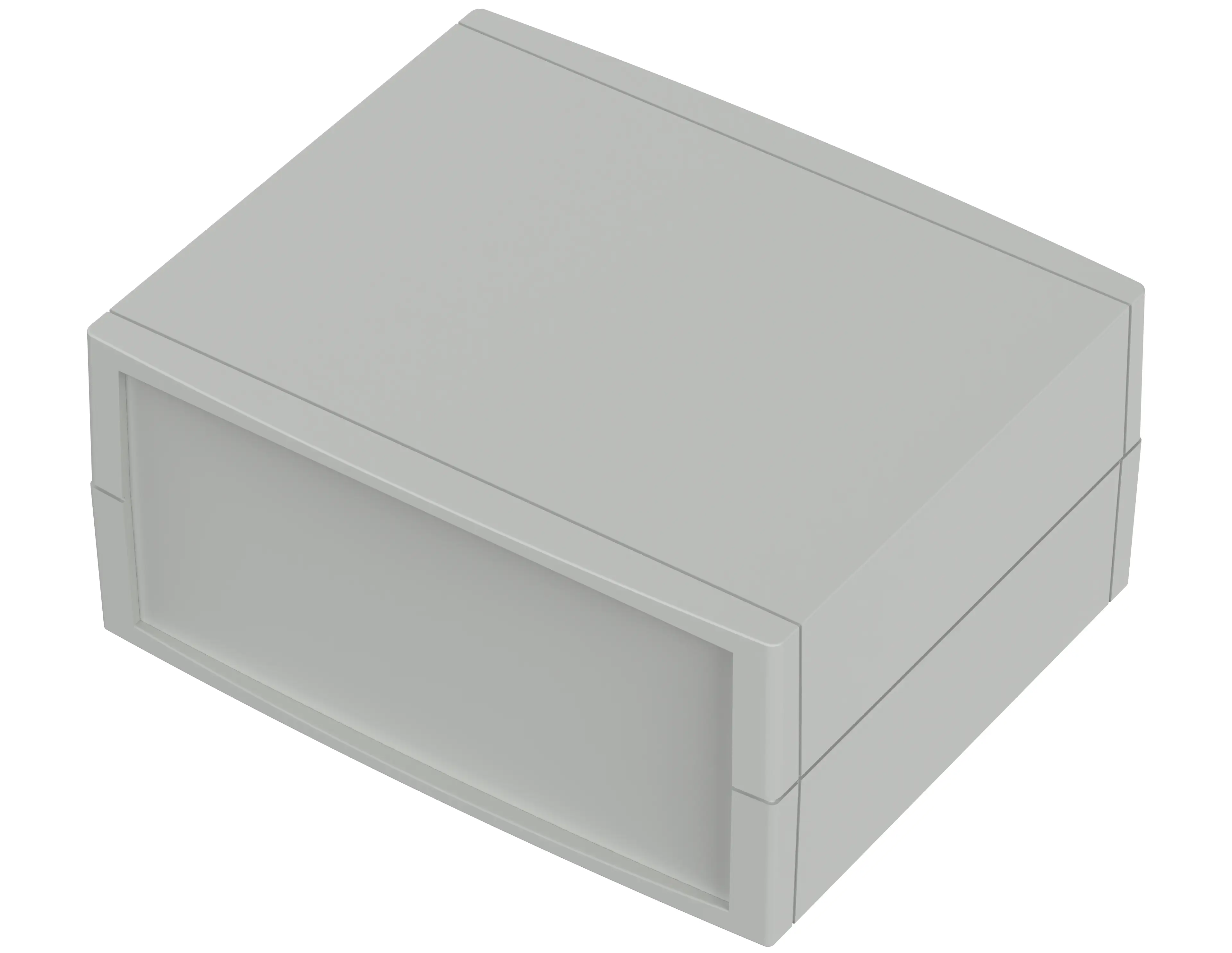

U 160-7035
Order no.: 26160000
U 160-7035
Order no.: 26160000
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
160 x 75 x 133 mm
Colour of enclosure group
Light grey, similar to RAL 7035
Protection class
IP
40
NEMA
1
Enclosure Material
PS (polystyrene); for details see Technical Information
Operating temperature: -10/65° C
Scope of delivery

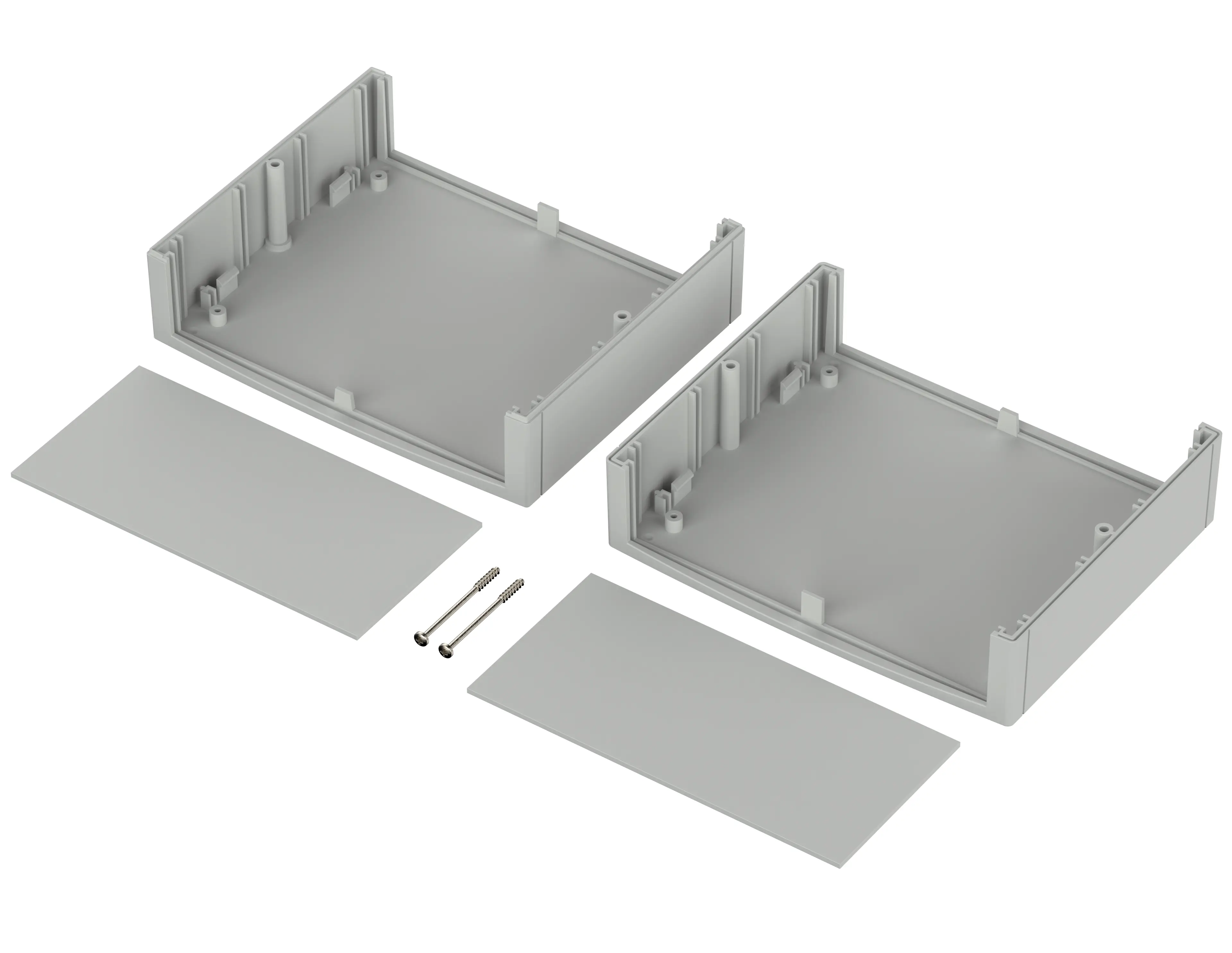

Lid and base, 2 plastic front panels, 2 screws
Note
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
26160000 U-160-7035-G.dxf
(715.3 KB)
Product drawing in PDF format:
26160000 U-160-7035.pdf
(62.7 KB)
Product drawing in DXF format:
26160000 U-160-7035.dxf
(1.3 MB)
- unimas en.pdf(461.0 KB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- Kein SVHC
