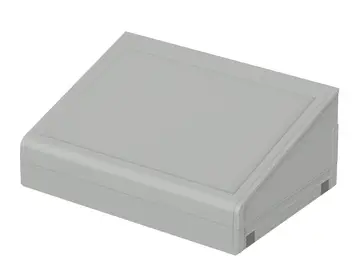

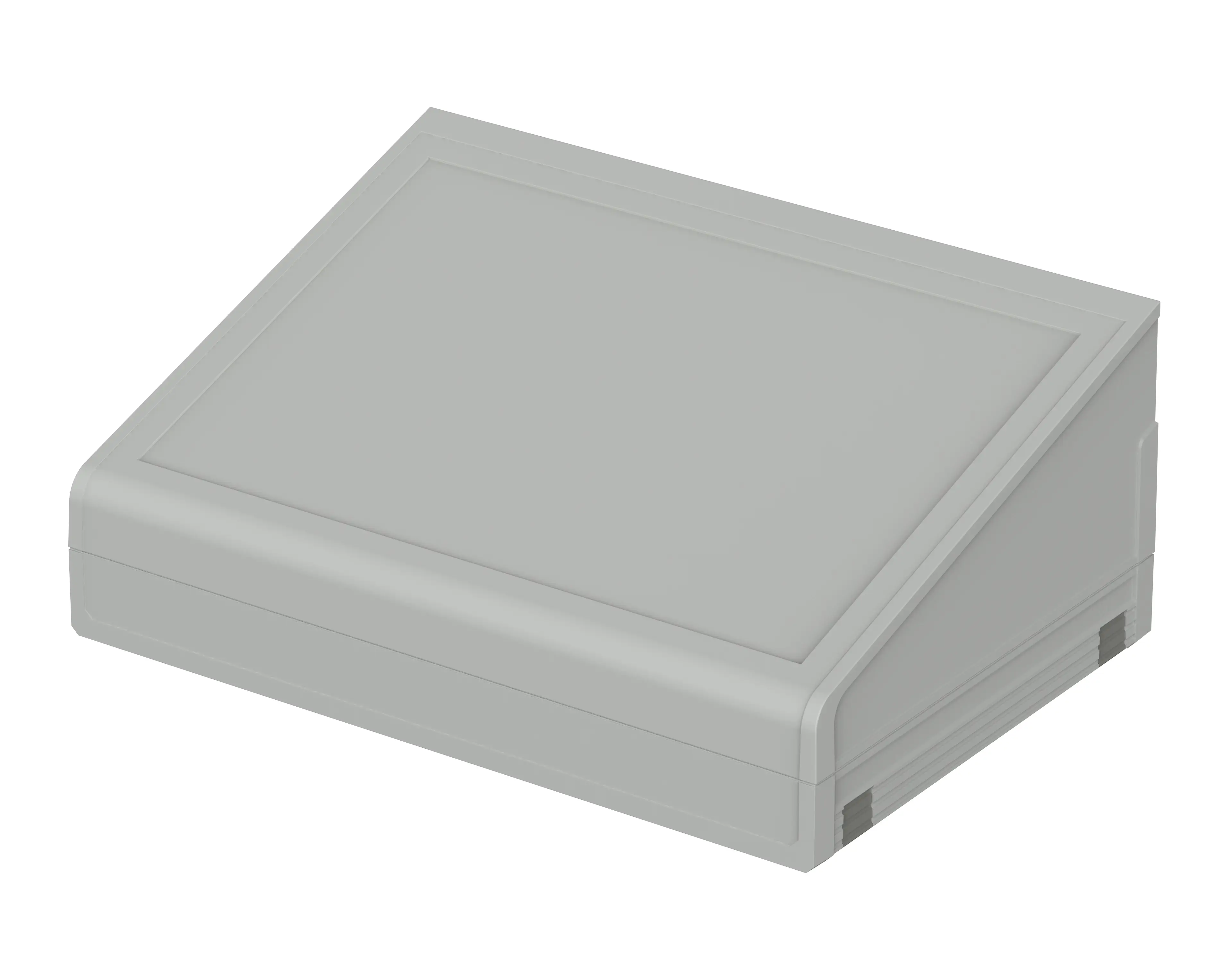

Ultrapult | Enclosure with membrane keypad area
UMP 62018
Order no.: 45620180
UMP 62018
Order no.: 45620180
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
290.9 x 198.9 x 120.4 mm
Colour of enclosure group
Light grey, similar to RAL 7035
Protection class
IP
40
NEMA
1
Enclosure Material
ABS; for details see Technical Information
Scope of delivery

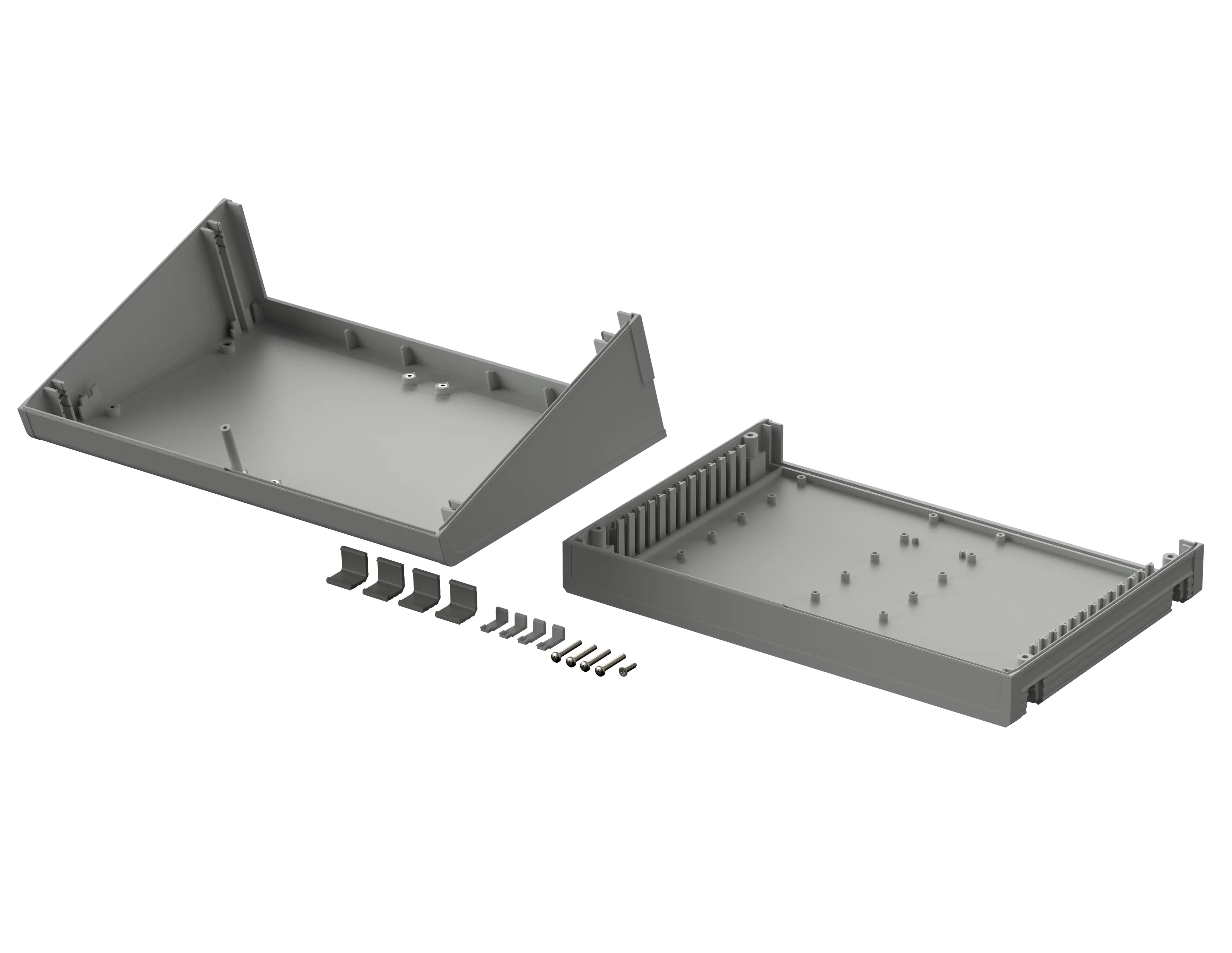

Lid and base, 4 screw covers, 4 rubber feet, 4 screws, incl. seal in lid to seal the operating area
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
45620180 UMP-62018-G.dxf
(1.5 MB)
Product drawing in PDF format:
45620180 UMP-62018.pdf
(61.7 KB)
Product drawing in DXF format:
45620180 UMP-62018.dxf
(687.6 KB)
- ultrapult en.pdf(460.4 KB)
