Filotec | Filotec enclosures with membrane keypad area (1,5 mm) on one half-shell and continuous profiled wall brackets on the other half-shell
F 1036-160 WL
Order no.: 97216160
F 1036-160 WL
Order no.: 97216160
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
105 x 36 x 160 mm
Protection class
IP
40
NEMA
1
Enclosure Material
Al Mg Si 0.5 anodised; for details, please see Technical Information
Operating temperature: -25/110° C
Scope of delivery

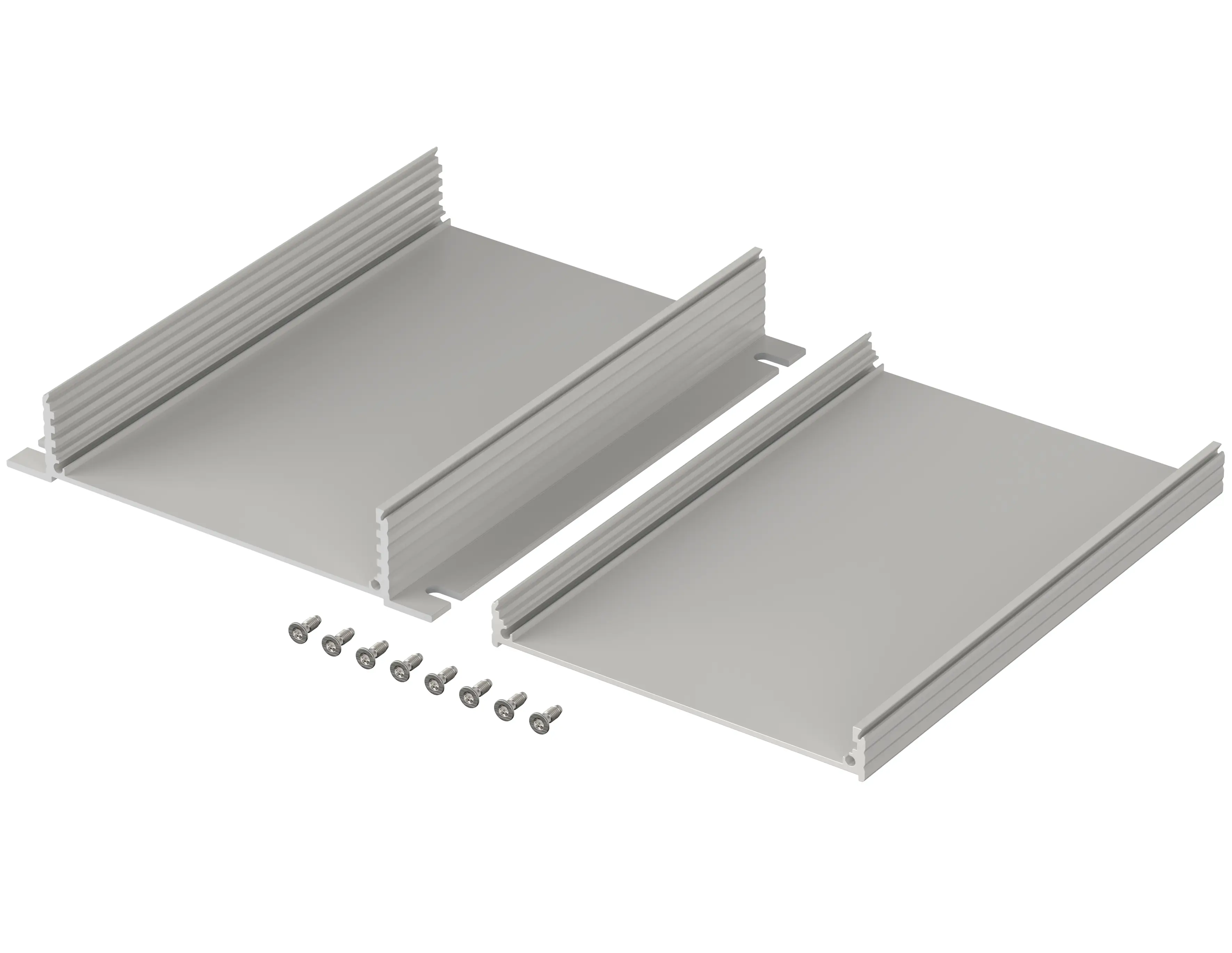

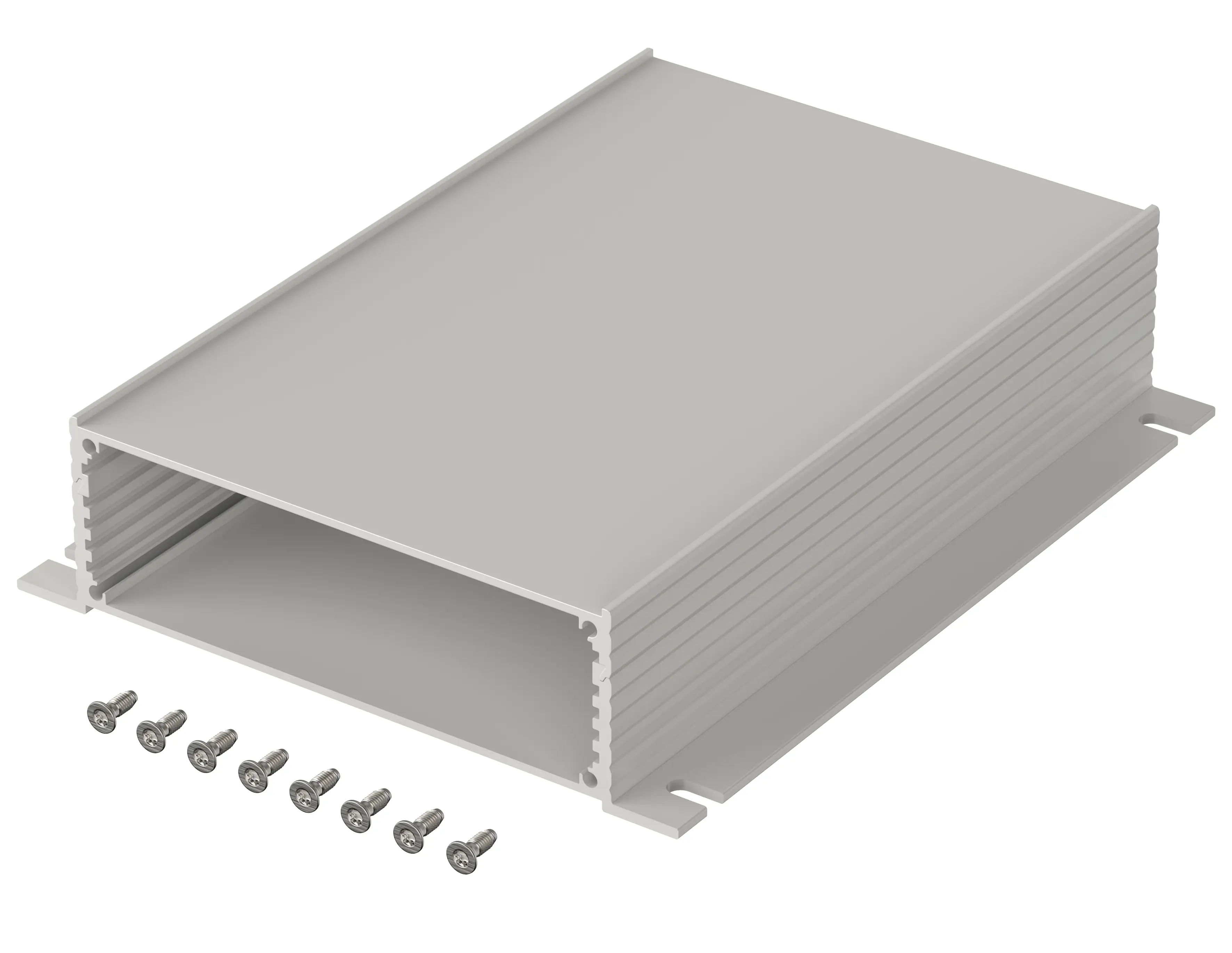

2 enclosure half shells, 8 screws for mounting cover
Note
C = profile length, special lengths on request. Covers: See following pages. Please order separately.
** = supplied without wall fitting holes and screw accessory pack. Please order fixing screws (1 piece) separately: 59000175.
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
