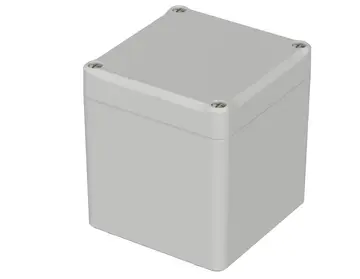

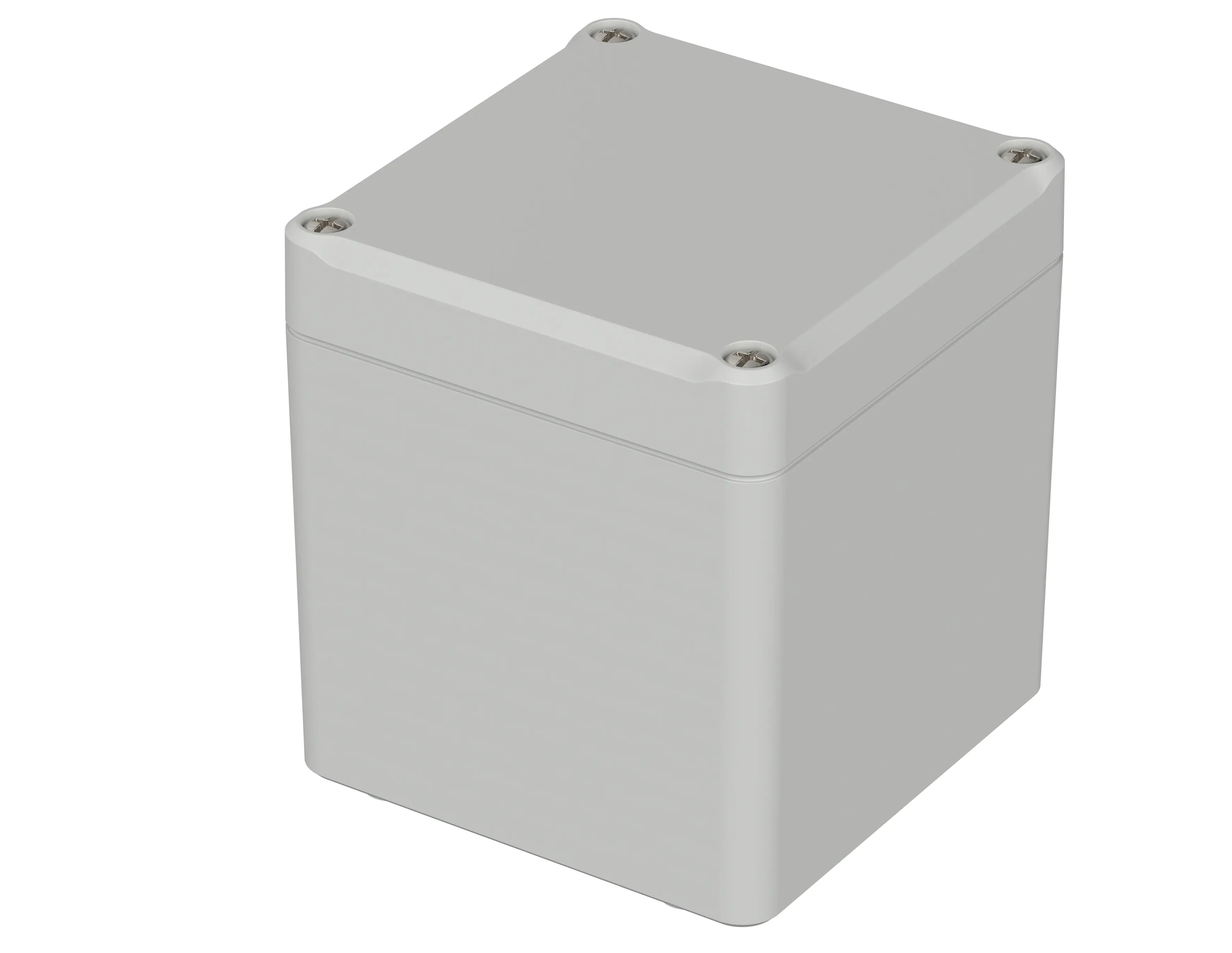

Euromas II | Enclosure, ABS
ET 225
Order no.: 63225000
ET 225
Order no.: 63225000
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
82 x 80 x 87 mm
Colour of enclosure group
Light grey
Protection class
IP
65
NEMA
3
Enclosure Material
ABS, PC (UV stabilised); seal made of CR; for details see Technical Information
Operating temperature: -25/70° C
Scope of delivery

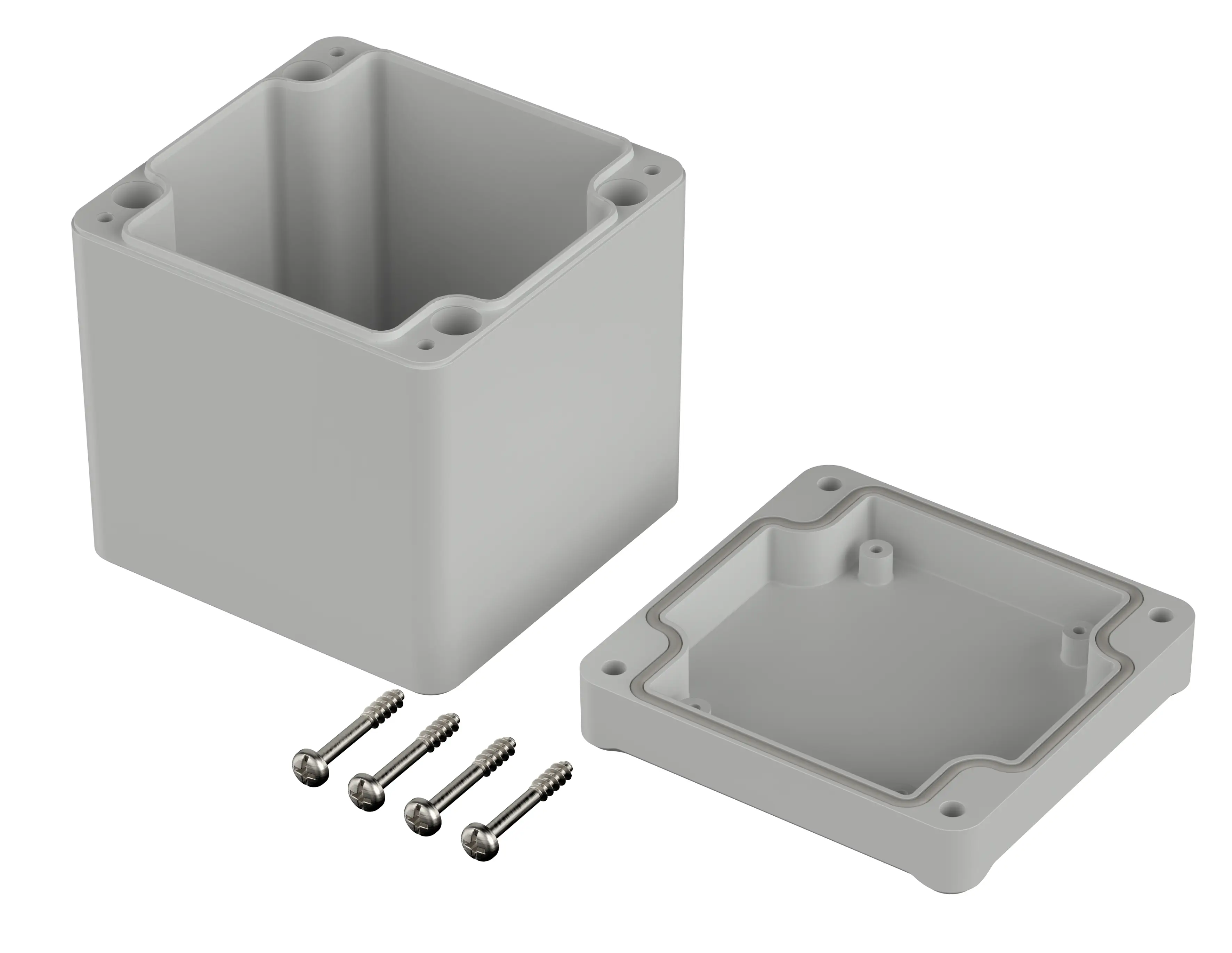

Lid and base, self-tapping coarse-pitch thread lid screws made of V2A
Note
Material shrinkage may result in ABS enclosures being approx. 0.1 – 0.25 % larger.
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
63225000 ET-225-G.dxf
(1.9 MB)
Product drawing in PDF format:
63225000 ET-225.pdf
(78.0 KB)
Product drawing in DXF format:
63225000 ET-225.dxf
(855.0 KB)
- euromas-ii en.pdf(1.0 MB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- Kein SVHC
Matching accessories
DIN rail acc. to DIN EN 60715 G 32
DIN rail acc. to DIN EN 60715 TH 15
DIN rail acc. to DIN EN 60715 TH 35
Mast mounting, stainless steel V2A, uncoated
Mounting panels, laminated paper
Rubber feet, self-adhesive
Screw covers
