Euromas ABS / PC / F05 | Mounting plates, laminated paper, galvanised steel for version 260
M M 244/245
Order no.: 22001300
For M/T 244-245
M M 244/245
Order no.: 22001300
For M/T 244-245
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.

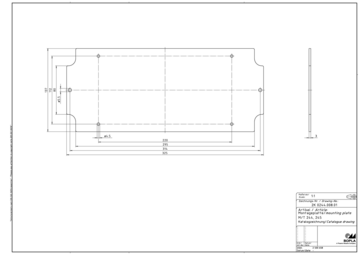

Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
--
Enclosure Material
ABS, PC (UV stabilised) and selected sizes in PC UL 94 V0 (additional UL 94 V0 versions on request)
The highest flammability rating of UL 94 5V is achieved even with slightly reduced outdoor suitability (f2 listing acc. to UL 746).
Seal: CR
V215: Vestamid, CR seal
For details see Technical Information
Operating temperature: -25/100° C
Scope of delivery
1 mounting panel
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
22001300 M.pdf
(31.0 KB)
Product drawing in DXF format:
22001300 M.dxf
(601.4 KB)
- 508 WPZ-Original DE.pdf(204.9 KB)
- 508 WPZ-Original EN.pdf(140.6 KB)
- 670 WPZ-Euromas-PC DE.pdf(197.3 KB)
- 670 WPZ-Euromas-PC EN.pdf(191.1 KB)
- euromas-abs-pc-f05 en.pdf(1.1 MB)
